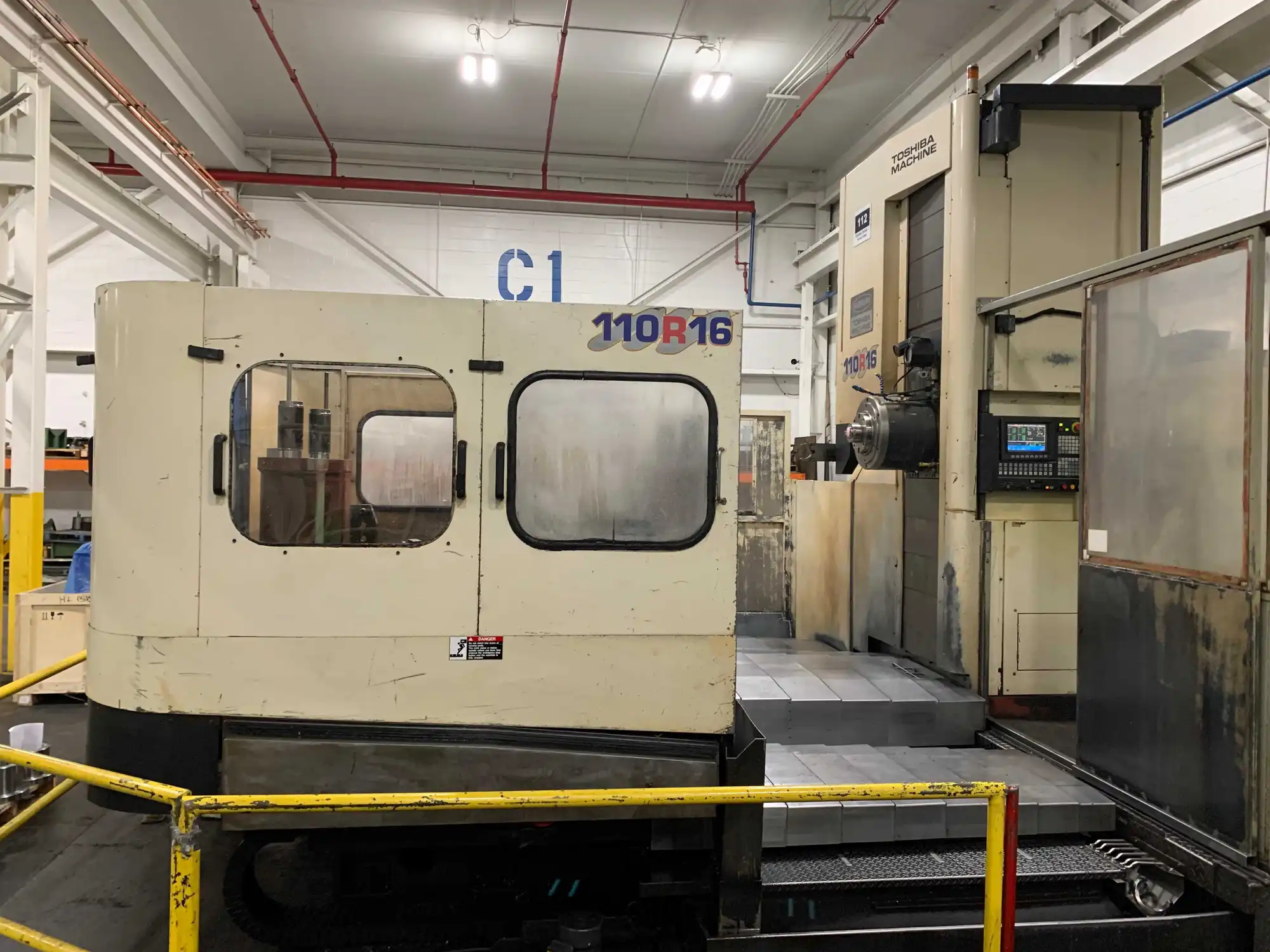

USED 1995 TOSHIBA BTD-110R16
Overview
Description
1995 Toshiba BTD-110 R16
with Automatic Tool Changer, Marposs Probing, Tosnuc 888 Ctrl
Specifications
| Spindle Size | 4.3" | 109.22 mm |
|---|---|---|
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 59" | 1,498.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 65" | 1,651 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 19.7" | 500.38 mm |
Toshiba BTD-110 R16 CNC Table Type Horizontal Boring Mill
w/ Automatic Tool Changer
New: 1995
Specifications:
- SPINDLE DIAMETER 4.3"
- X-AXIS TRAVEL (cross travel) 78.7"
- Y-AXIS TRAVEL (vertical travel) 59"
- Z-AXIS TRAVEL (longitudinal) 57"
- W-AXIS TRAVEL (spindle) 19.7"
- SPINDLE MOTOR 26 HP
- TAPER CAT 50
- MAXIMUM SPINDLE SPEED 2500 RPM
- ROTARY TABLE SIZE 63 x 55"
- WEIGHT CAPACITY 6.5 TON
Equipped With:
MARPOSS PROBING SYSTEM
CNC TOSNUC 888
