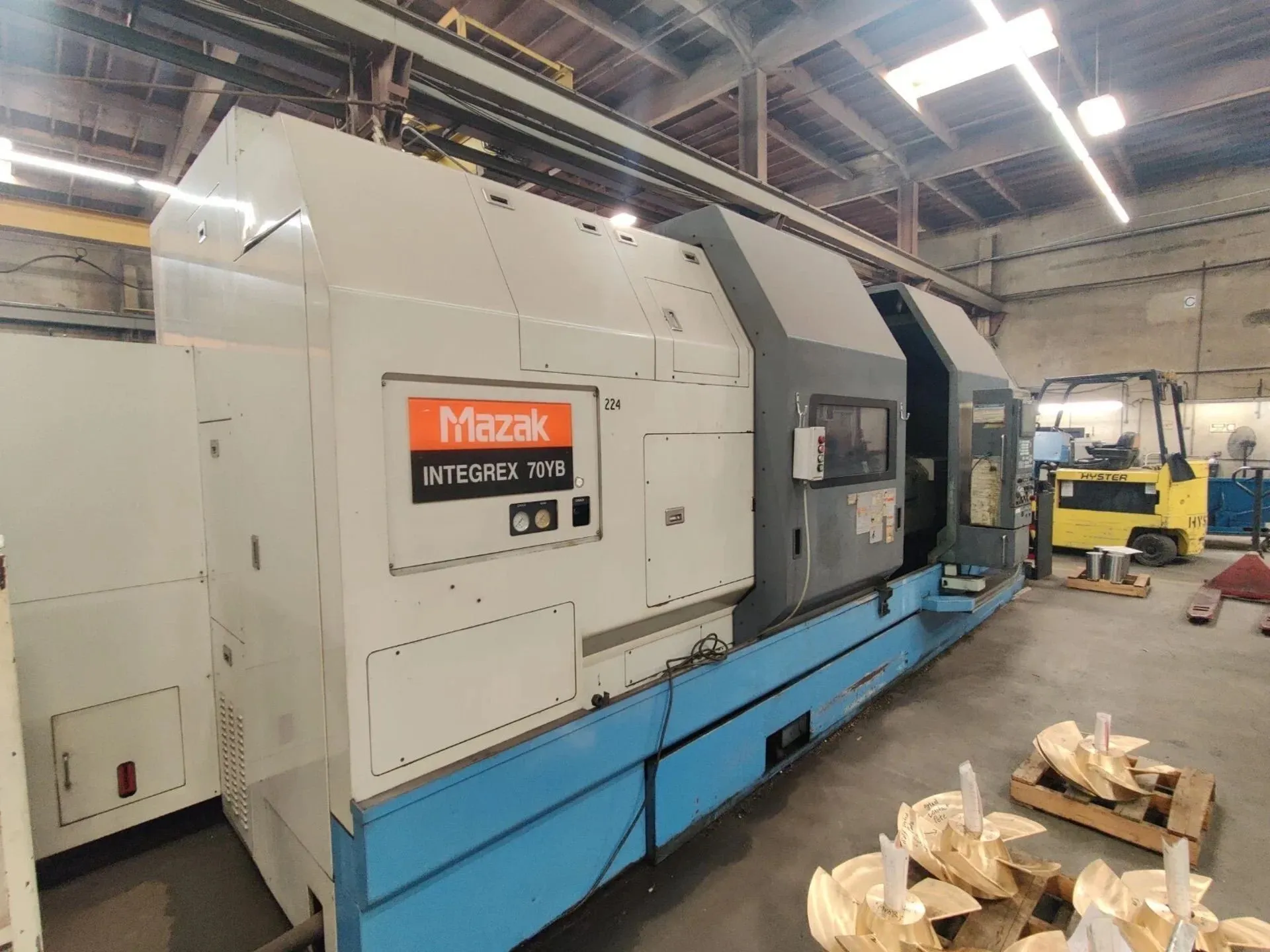

2001 MAZAK INTEGREX 70YB CNC Lathe available. Features include 36" swing, 80" machining length, 30" chuck, 60 hp, and 5000 RPM. Equipped with tailstock and live tooling.
| Swing | 36" | 914.4 mm |
| Machining Length | 80" | 2,032 mm |
| Chuck Size | 24" | 609.6 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Fusion 640 MT) | CNC (Mazatrol Fusion 640 MT) |
MAXIMUM SWING……………………………..36.02″
MAXIMUM SWING OVER CARRIAGE…………………30.3″
MAXIMUM CUTTING DIAMETER CHUCKING……………36.02″
X-AXIS 29.33”
Y-AXIS -+130MM
Z-AXIS 40”
C-AXIS .001
B-AXIS 225 DEGREES
SPINDLE NOSE………………………………A2-15
SPINDLE BORE………………………………10.24″
SPINDLE SPEED/RANGE………………………..1 – 750 RPM
SPINDLE HORSEPOWER (CONT/30 MINS.)…………..50/60 HP (AC)
SPINDLE TORQUE…………………………….1112 FT/LBS
TYPE OF TURRET…………………………….2 POSITION, W/ATC
TOOL SHANK HEIGHT………………………….1.25″
MAGAZINE CAPACITY………………………….60 TOOLS
Spindle motor: 15hp 18 – 3000 RPM
TOOL SIZE (BORING BAR MAX. DIA.)…………….2.0″
TOOL SELECTION METHOD………………………RANDOM
TOOL TO TOOL ATC TIME………………………2.5 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL……………4.72″
MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY………6.3″
MAX. TOOL LENGTH (FROM GAGE-LINE)……………18.11″
MAXIMUM TOOL WEIGHT………………………..44 LBS.
ATC TOOL SHANK-ROTARY TOOL………………….CAT 50
TURNING TOOL…………………MAZAK 60MM VDI
Y-AXIS RAPIDS……………………………..315 IPM
X-AXIS RAPIDS……………………………..472 IPM
Z-AXIS RAPIDS……………………………..590 IPM
C-AXIS RAPIDS……………………………..15 RPM
MACHINE HEIGHT…………………………….129.45″
TOTAL POWER REQUIRED (MACHINE ONLY)………….94.7 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER
KVA RATING WILL BE GREATER.
AIR REQUIREMENTS…………………………..71 PSI / 14 CFM
FUSION 640MT CNC CONTROL
LIKE NEW 24” SMW THRU HOLE CHUCK 10.24”
TOOL SETTER
60 POSITION TOOL CHANGER
50 TAPER MILLING SPINDLE
COOLANT SYSTEM
CHIP CONVEYOR
