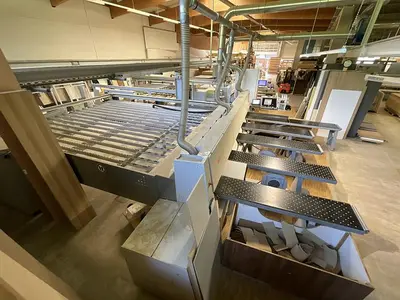

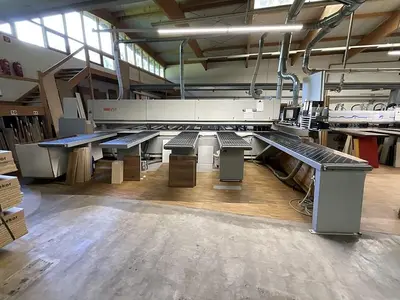

USED 2007 HOLZHER CUT 110 580

HolzHer Cut 110 for sale.

the complete computer has been exchanged and the software has been updated (2022)

the guides of the material pusher and saw carriage have been exchanged (2023)

A second blower for the air tables has been installed and an additional table has been added.

mint condition
dismantling is buyer
1 shift operation run and not really loaded.

The machine is "freshly" made. Gear stems from the slider + guides have recently been replaced.
Bearings and guides are new and computer is new.
the whole rebuild cost 40k to 50k

Technical data and description:
Basic machine pressure beam saw
Design: fence right Sawing cycle: away from fence
Cutting length: 5850 mm Cutting width: 5850 mm
Saw blades
Main saw blade Ø 400 X 4,4 X 30 mm, Z72, FZ/TZ (not
included!) TCT scoring saw blade Ø 180 x 4.4/5.4 x 30 mm
conical (not included!)
Cutting height
Cutting height: 110 mm
Saw blade projection: 120 mm
Pneumatic pressure beam, pressure beam pressure adjustable
Dust extraction
Central, travelling dust duct on the unit
Extraction connection basic machine: 1x Ø 160 mm, position
right side of machine Dust duct in pressure beam 2x Ø 120 mm -
1x top left, 1x top right
for SL 5850 mm: 3x Ø 120 mm - 1x at top left, 1x at top centre, 1x at top right
top right Air speed suction: 30 m/s
