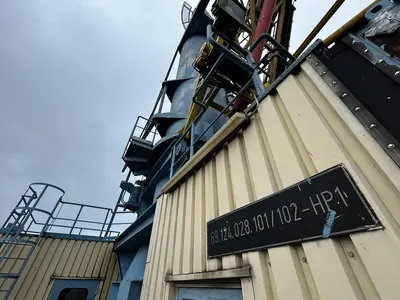

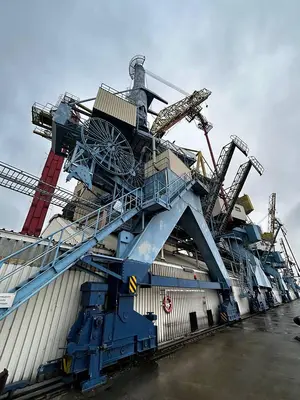

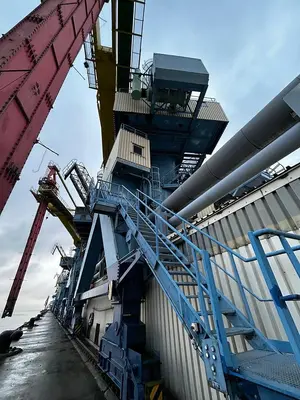

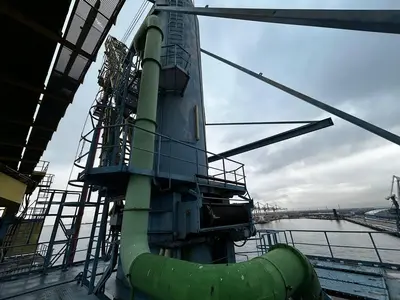

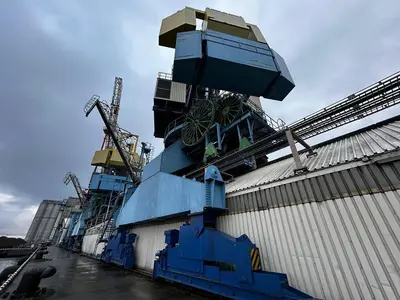

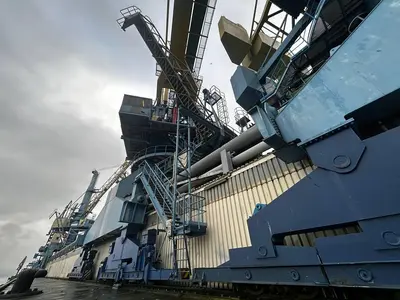

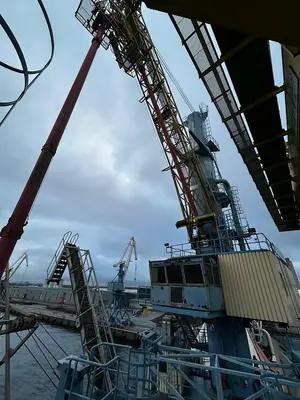

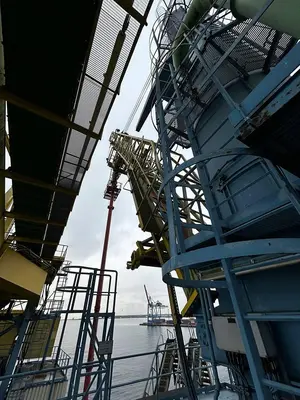

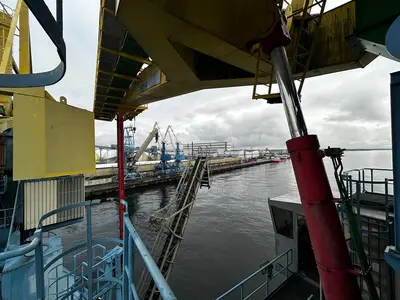

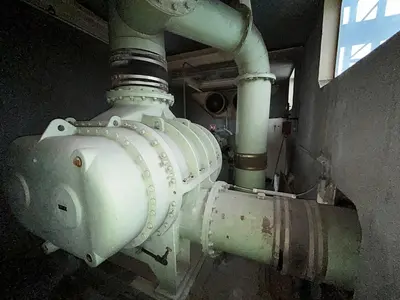

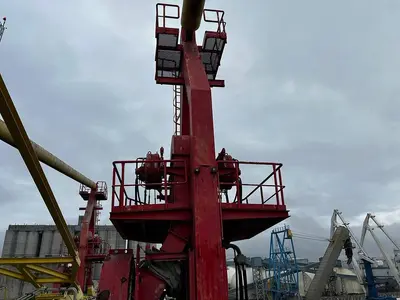

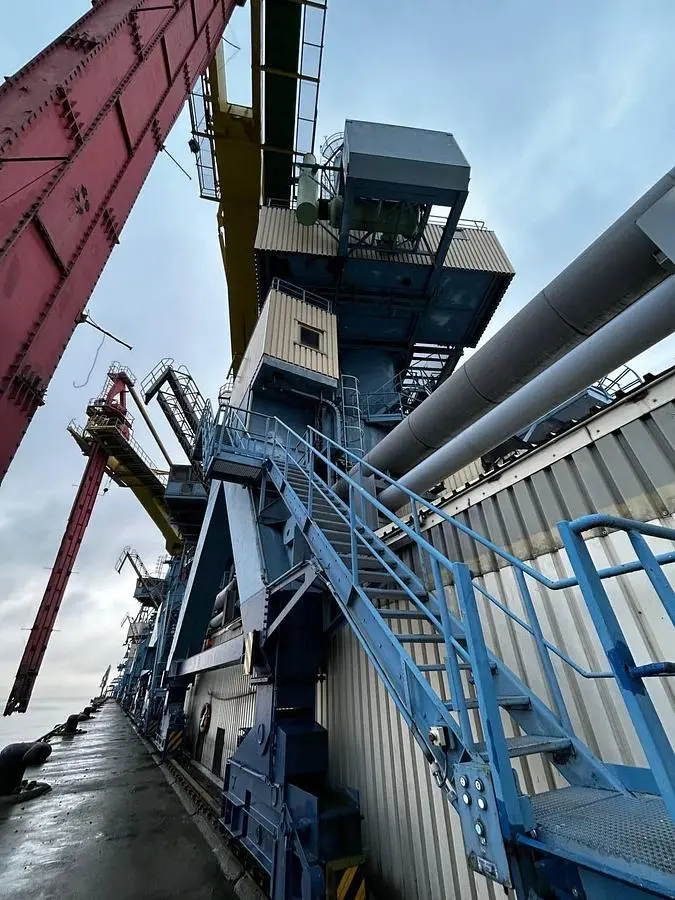

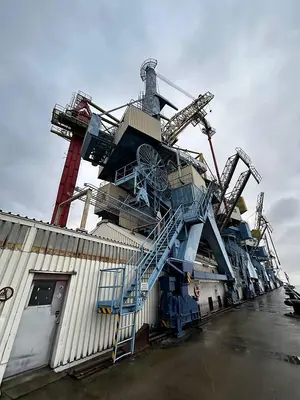

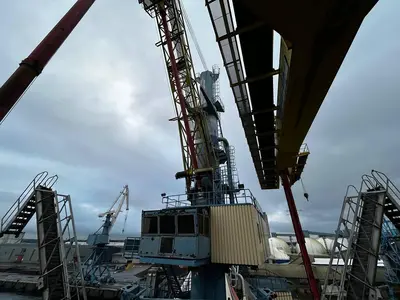

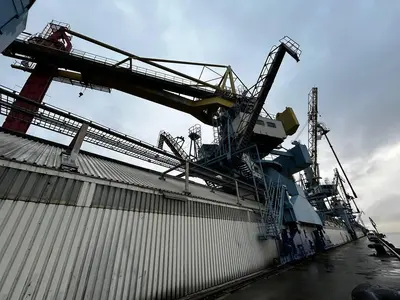

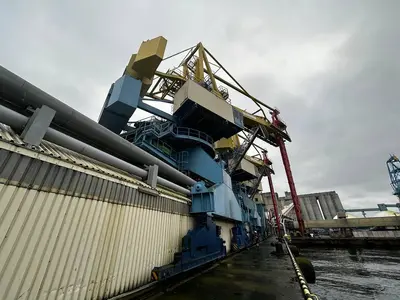

We have two grain unloaders capable of discharging vessels with a draft of up to 17 meters (approximately 100,000 DWT). One unit is a mechanical unloader and the other is a pneumatic unloader. Details are as follows:
Manufacturer: Bühler
Year of Manufacture: 1983-1985

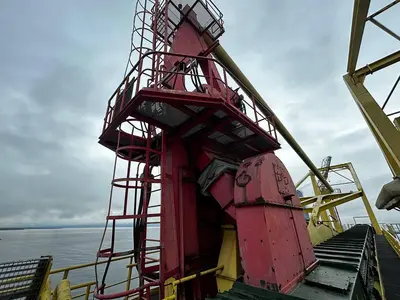

Mechanical Chain Transporter HM1-T1 + HM2-T1
Transporter type: HL-SKT RSH-450
Feed capacity: 1000 t/hour grain
Total length: 28.1 m
Chain speed: 2.28 m/s
Drive shaft speed: 37.7 rpm
Torque on drive shaft: 40,200 Nm
Drive power at shaft: 164 kW

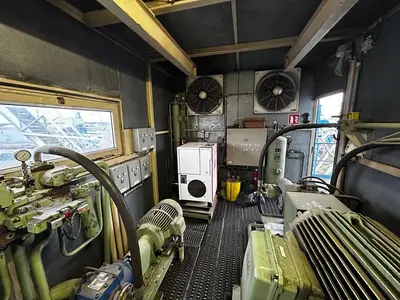

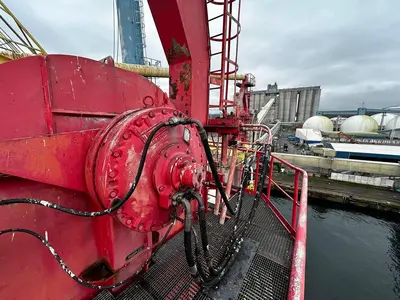

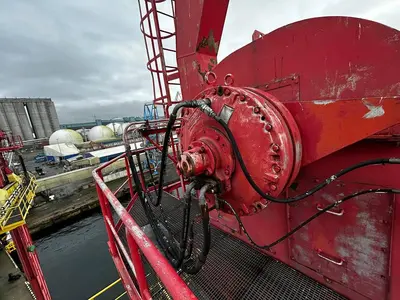

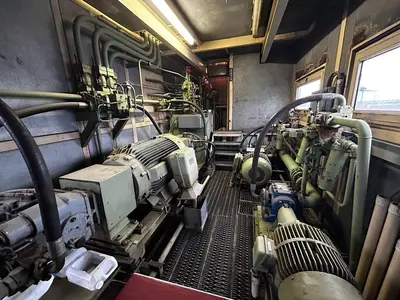

Drive system: two hydro motors on each drive shaft
Hydraulic motor type: MK 43-09200-CO-RN
Absorption capacity: 9.2 liters per rotation
Specific torque: 147 Nm/bar
Nominal torque: 20,100 Nm
Nominal pressure: 156 bar

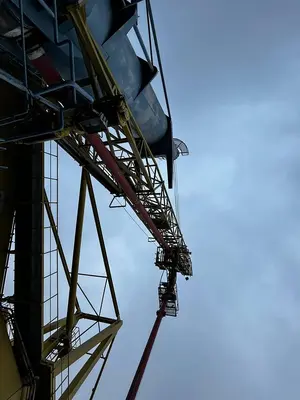

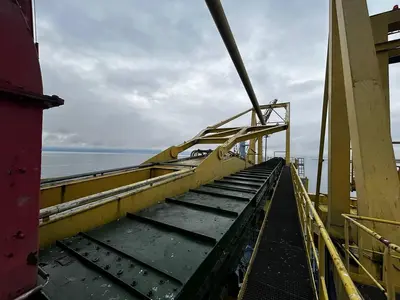

Chain Transporter in Boom HM1-T2 + HM2-T2
Transporter type: BKT 1210/290 142V 002 TWIN
Feed capacity: 1000 t/hour grain
Total length: 33.2 m
Chain speed: 1.32 m/s
Drive shaft speed: 40 rpm
Drive power: 150 kW

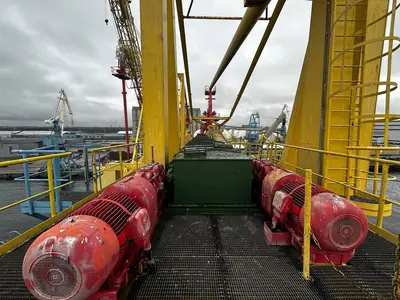

Drive motors: 2 × 90 kW
Motor type (BBC): QUX 280 M4 AG-B3
Voltage and frequency: 380 V, 3-phase, 50 Hz
Motor speed: 1500 rpm
Hydraulic coupling: 2 × FAD-450
Gear reducer: 2 × KZA-280
Transmission: bevel and cylindrical combination
