Overview
Type:
Paper Production Lines
Manufacturer:
Bollegraaf
Model:
PAPER SORTING SYSTEM
Stock #:
757234
Description

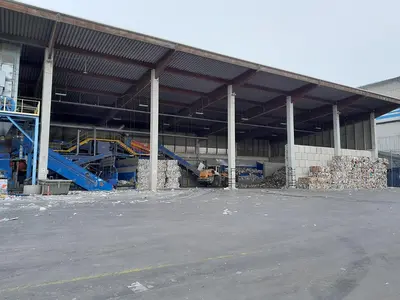

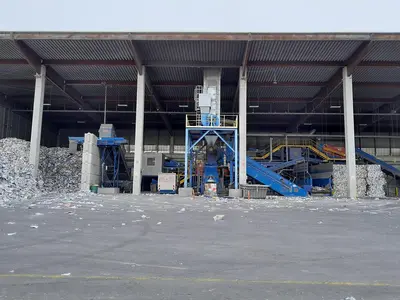

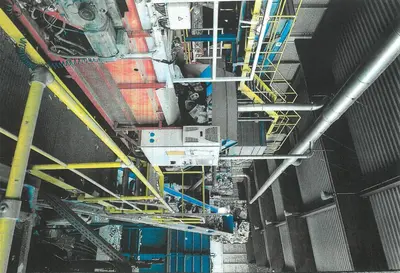

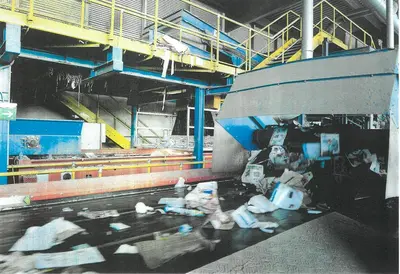

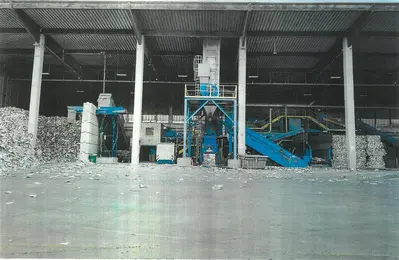

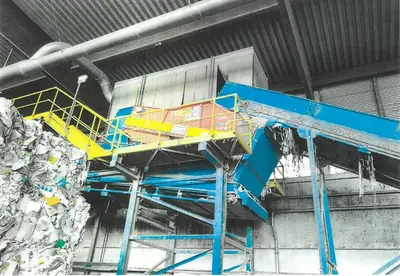

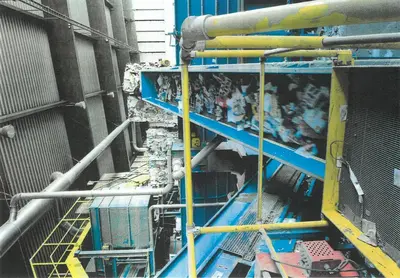

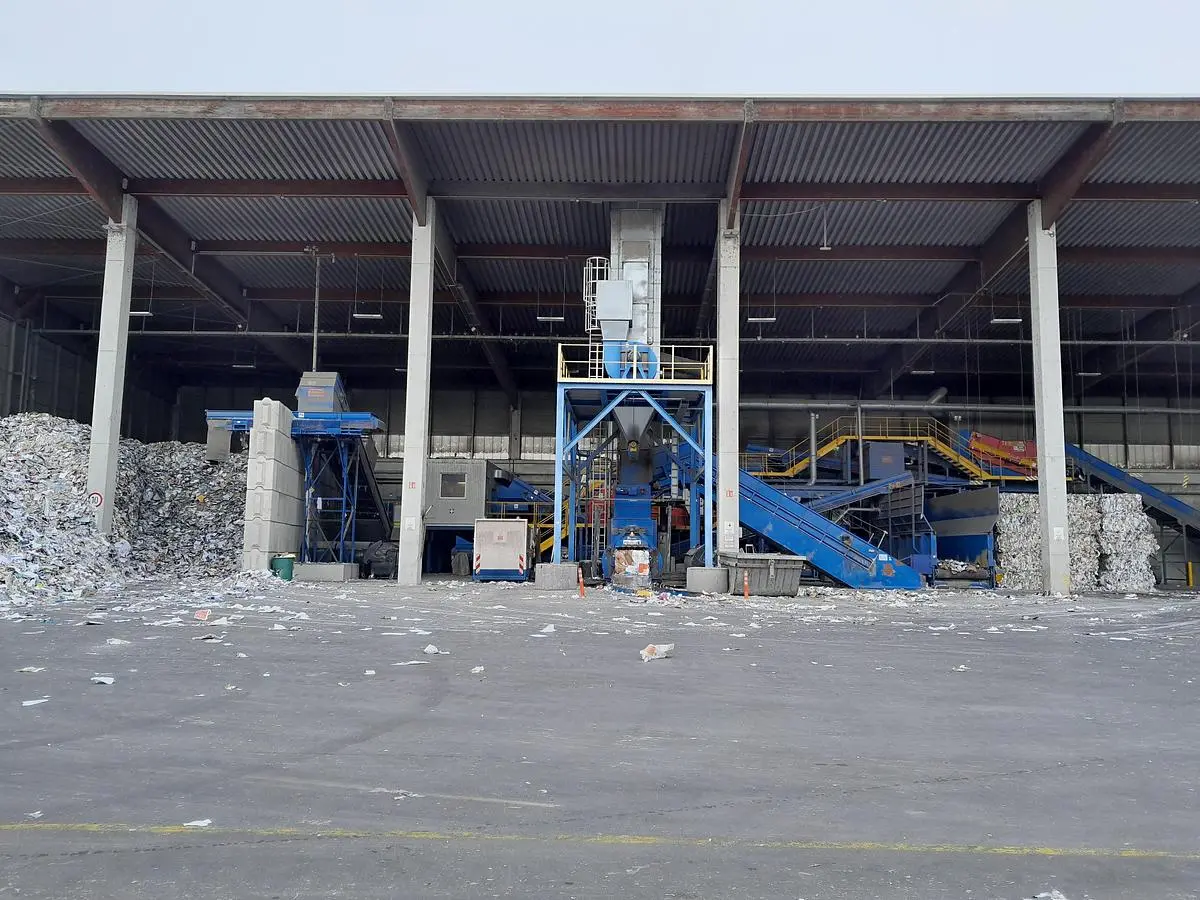

We are offering for sale a complete paper sorting system consisting of the following components:

1.DOSING BUNKER
Model: RHKC 200
Axle spacing: 12,000 mm
Belt width: 2,000 mm
Belt drive: 0.75 kW (0.22–1.1 m/min)
Frequency inverter: Movimot MM11 D-503-00
Drum drive: 4 kW
Construction: Steel, sheet metal walls, rubber belt
Special: Emergency stop both sides, moving parts enclosed

2.STEEP CONVEYOR
Model: RHSH 180
Axle spacing: 14,000 mm
Belt width: 1,800 mm
Incline: 30°
Cleats: T60 × 700 mm, offset
Trough height: 500 mm
Drive: 7.5 kW, 0.8 m/s
Construction: Steel, sheet walls, rubber belt, enclosure, emergency stop

3.TRANSFER BELT
Model: RHSH 160
Axle spacing: 4,500 mm
Belt width: 1,600 mm
Incline: 10°
Cleats: T20 × 1500 mm
Trough height: 300 mm
Drive: 2.2 kW
Construction: Steel, side sealing strips

4.CARDBOARD BELT
Model: Euro 8 / DRS 66-8 OCC
Drive: 5.5 kW
Frequency inverter: Movimot 07
Construction: Steel

5.STEEP BELT
Model: RHSH 180
Axle spacing: 14,800 mm
Belt width: 1,800 mm
Incline: 8°
Cleats: T40 × 800 mm
Trough height: 300 mm
Drive: 5.5 kW
Construction: Steel, three-sided transfer box

6.ACCELERATION BELT
Model: RHI 200
Axle spacing: 4,500 mm
Belt width: 2,000 mm
Trough height: 200 mm
Drive: 3 kW (2.5 m/s)
Frequency inverter: Movimot
Construction: Steel funnel, sheet walls

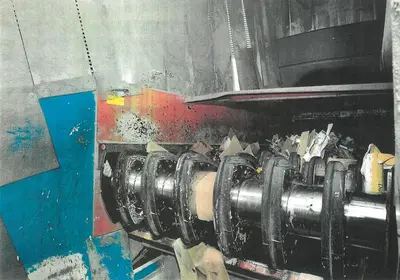

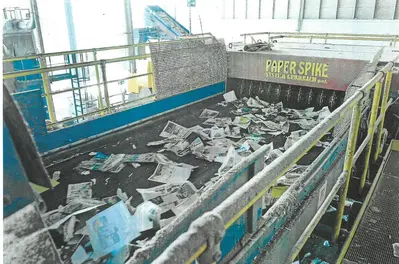

7.SPIKER
Model: Paper Spike 2500GZ
Drive spiker discs: 4 kW
Frequency inverter: Movimot 07
Drive ejector roller: 0.75 kW
Construction: Steel, enclosed, safety features
8. OUTFEED BELT
Axle spacing: 4,500 mm
Belt width: 800 mm
Drive: 0.75 kW
Construction: Steel, sheet walls, rubber belt

9.RETURN BELT
Model: RHI 220
Axle spacing: 3,200 mm
Belt width: 2,200 mm
Incline: 0°
Trough height: 300 mm
Drive: 3 kW
Construction: Steel, side sealing strips

10.NIR SORTING SYSTEM
System: Unisort PC 2400
Axle spacing: 5,000 mm
Belt width: 2,400 mm
Drive: 9.2 kW
Construction: Machine housing

11.STEEP BELT
Model: RHSH 140
Axle spacing: 12,300 mm
Belt width: 1,400 mm
Incline: 12°
Cleats: T40 × 600 mm
Drive: 4 kW
Construction: Steel, side sealing, transfer box

12.SORTING BELT
Model: RHIU 120
Axle spacing: 7,200 mm
Belt width: 1,200 mm
Incline: 0°
Trough height: 300 mm
Drive: 2.2 kW
Construction: Sorting sections for plastic and cardboard

13.COLLECTION BELT
Model: RHSH 120
Axle spacing: 6,300 mm
Belt width: 1,200 mm
Trough height: 300 mm
Drive: 0.6 m/s
Construction: Steel, side sealing strips

14.STEEP BELT
Model: RHSH 120
Axle spacing: 5,000 mm
Belt width: 1,200 mm
Incline: 30°
Cleats: T60 × 600 mm
Drive: 3 kW

15-STEEP BELT
Model: RHSH 120
Axle spacing: 13,300 mm
Belt width: 1,200 mm
Incline: 30°
Cleats: T60 × 600 mm
Drive: 4 kW

16.CARDBOARD BELT
Model: RHSH 160
Axle spacing: 3,000 mm
Belt width: 1,600 mm
Cleats: T20 × 1500 mm
Drive: 1.5 kW
Construction: Steel, side sealing strips

17.B19 BUNKER
Model: RHKC 200
Axle spacing: 11,500 mm
Belt width: 2,000 mm
Trough height: 3,500 mm
Drive: 1.5 kW
Construction: Steel, sheet walls

18.DISCHARGE BELT
Model: RHSH 80
Axle spacing: 5,800 mm
Belt width: 800 mm
Incline: 5°
Drive: 1.5 kW

19.STEEP BELT
Model: RHSH 180
Axle spacing: 5,500 mm
Belt width: 1,800 mm
Incline: 30°
Cleats: T60 × 600 mm
Drive: 3 kW

20.STEEP BELT
Model: RHSH 160
Axle spacing: 4,200 mm
Belt width: 1,600 mm
Incline: 30°
Drive: 3 kW

21.SORTING BELT
Model: RHIU 120
Axle spacing: 6,000 mm
Belt width: 1,200 mm
Incline: 0°
Drive: 2.2 kW
Construction: 2 sorting compartments, side rails, indicator system

22.HAND SORTING BELT
Model: RHI 80
Axle spacing: 4,400 mm
Belt width: 800 mm
Drive: 0.75 kW

23.RETURN BELT
Model: RHSH 80
Axle spacing: 17,000 mm
Belt width: 800 mm
Incline: 8°
Cleats: T40 × 1000 mm
Drive: 3 kW

24.DISCHARGE BELT
Model: RHI 80
Axle spacing: 2,800 mm
Belt width: 800 mm
Drive: 0.75 kW

25.PRESS BELT
Model: RHKG 160
Axle spacing: 19.9 m
Belt width: 1,600 mm
Trough height: 600–1100 mm
Drive: 7.5 kW
Construction: Steel, sheet walls, rubber belt

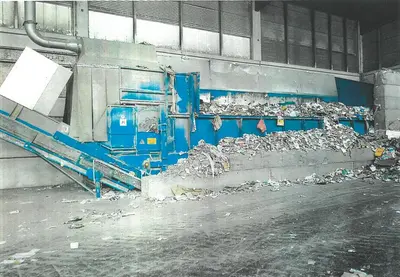

26.PRESS
Model: Paal Konti 275G
Construction: Steel

27.DUST EXTRACTION
Transport blower: 30 kW
Discharge screw: 1.5 kW

28.CLEANING SYSTEM
High-pressure ventilator: 15 kW
