Overview
Type:
Harden (Quench & Temper) Furnaces
Manufacturer:
HERMANN SCHWAMMBERGER
Model:
DLMEH 450 / 50 / 3250
Year:
2017
Stock #:
757138
Description

Manufacturer: Hermann Schwammberger
Model: DLMEh 450 / 50 / 3250
Year of Manufacture : 2017 (unit 1 ) 1980 renovated in 2011 ( unit 2 )

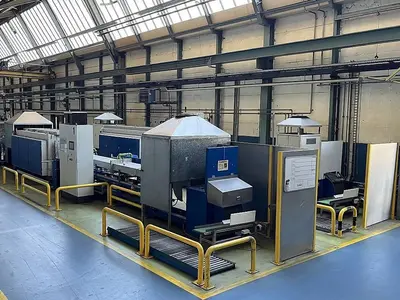

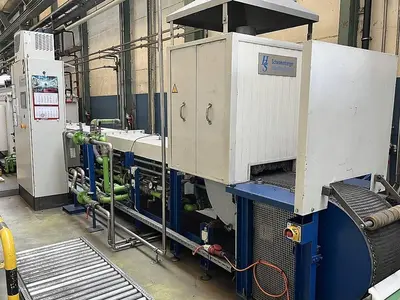

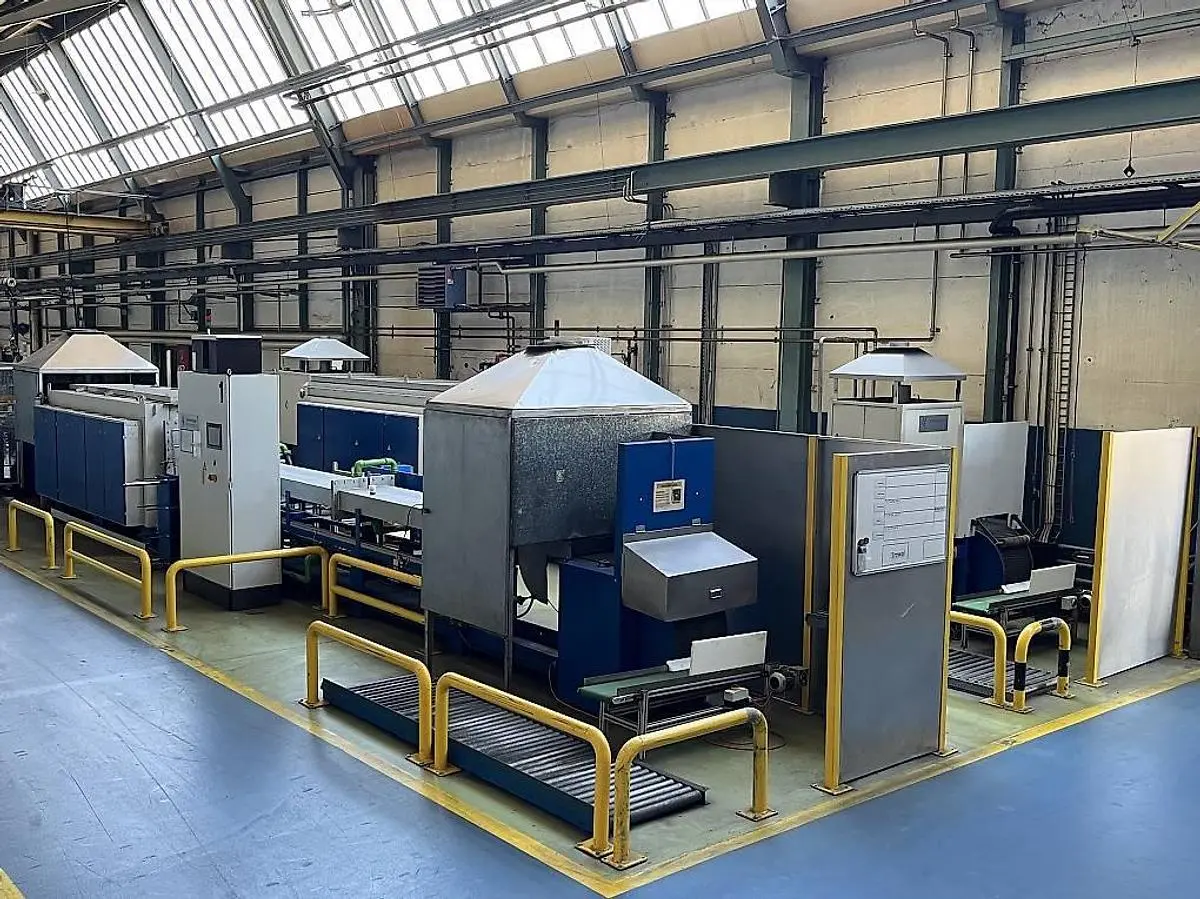

Type of Machine : Hardening furnace strip line
Suitable for: Various stainless steel components
Condition: Fully functional, well-maintained

Technical Data
Performance Data
• Belt load: 5 kg/m
• Residence time in heating zone: 14 min
• Belt speed: 230 mm/min (14 m/h)
• Operating temperature: 1050 °C
• Net throughput capacity: 69 kg/h
• Gross throughput capacity (incl. belt): 157 kg/h

Consumption Data (Approx.)
• Electric heating power: 43 kW
• Nitrogen (N2) inlet and outlet: 6 m³/h
• Forming gas H2/N2 (5–30 percent H2): 12 m³/h
• Cooling water (ΔT = 15 °C): 1.9 m³/h
• Cooling capacity equivalent: 33 kW

Furnace Dimensions / Specifications
• Conveyor belt width: 450 mm
• Clear height above belt: 30 mm
• Heated furnace length: 3250 mm
• Upper temperature limit: 1150 °C
• Operating temperature: 1120 °C
• Maximum gross throughput: 300 kg/h
• Electric heating total: 96 kW
• Temperature control zones: 4
• Belt speed range: 0–600 mm/min

Overall Dimensions & Weight
• Total furnace length: 15000 mm
• Furnace width: 1700 mm
• Furnace height: 1900 mm
• Weight: approx. 6500 kg

Electrical Data
• Total heating capacity: 96 kW
• Rated voltage: 3 × 358 V
• Rated current: 136–140 A
• Rated temperature: 1120 °C
Certification: CE
