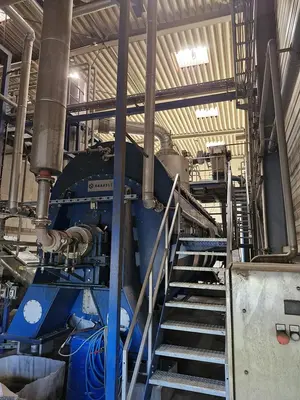

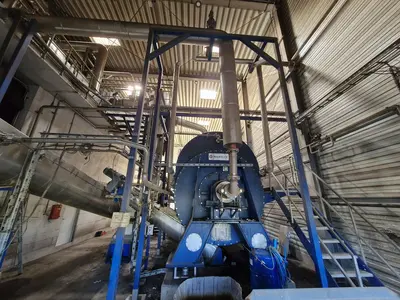

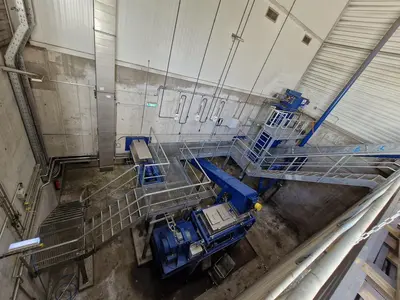

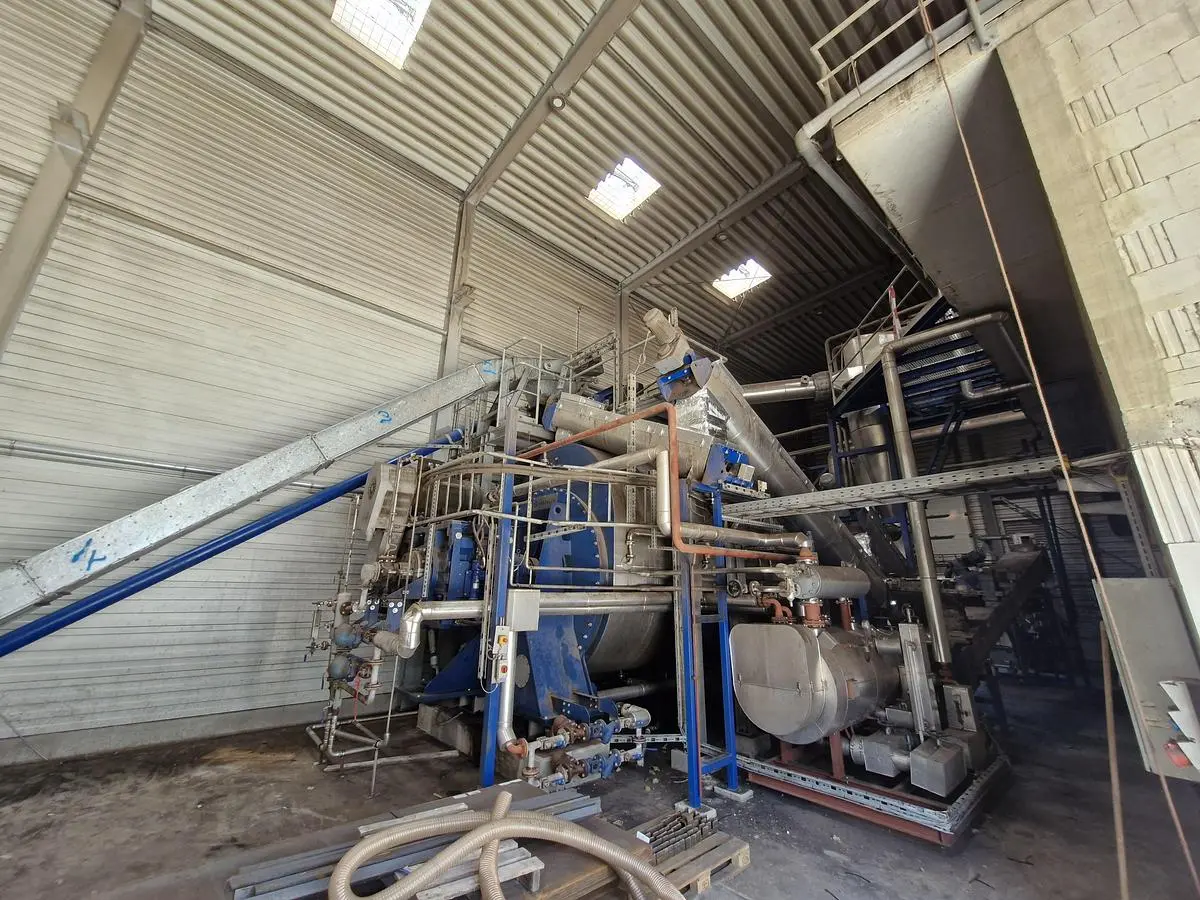

USED 2019 HAARSLEEV DISC DRYER
  • USED 2019 HAARSLEEV DISC DRYER
  • USED 2019 HAARSLEEV DISC DRYER
  • USED 2019 HAARSLEEV DISC DRYER
  • USED 2019 HAARSLEEV DISC DRYER

USED 2019 HAARSLEEV DISC DRYER

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Sugar Pulp Dewatering Press
Manufacturer:
HAARSLEEV
Model:
DISC DRYER
Year:
2019
Stock #:
757001
Description

Manufacturer: Haarsleev
Model: Disc Dryer
Year of Manufacture: 2019/2020
Decommissioned : December 2024
Drying capacity of up to 50,000 tons of sludge per year

Type: Disc Dryer 2264-TST
Heating Surface – Rotor: 380 m²
Heating Surface – Steam Jacket: 36.5 m²
Disc Thickness: 14 mm
Dimensions:
Shipping Weight: 110,000 kg
Maximum Operating Weight: 154,000 kg
Gearbox: SEW X4FA310T
Gearbox Oil: Meropa 320, approx. 540 L
Gear Ratio: i = 180
Motor: Hoyer IE3
Motor Power: 200 kW
Motor Speed: 1488 rpm
Voltage: 400 V
Frequency: 50 Hz
Transmission: V-belt drive
Clutch: Hydraulic clutch
Bearing: Spherical roller bearing type C4
Steam Inlet: 5" sealed head
Condensate Outlet: 3 1/2" sealed head
Rotation Direction of Rotor (viewed from drive end): Clockwise
Design Pressure: 10 bar
Consumption:
Pressure Test Certificate:
The disc dryer is supplied with a Declaration of Conformity according to the EU Pressure Equipment Directive 2014/68/EU (PED).
