6’ x10 GA CLEARING NIAGARA “HB-55-4-6” 55-TON CNC HYDRAULIC PRESS BRAKE - Zakron Comp-U-Bend "MCI 61000" CNC Control w/2-Axis Back Gauge - 72” Overall - 54” Between Housings - 6” Stroke - 6” Throat
| Tonnage | 55 T | 49.895 t |
| Type | HYD | HYD |
| Overall Length | 72" | 1.8 m |
| Between Housings | 54" | 1.4 m |
| Stroke | 6" | 152.4 mm |
| # Axis | 2 | 2 |
| Control | CNC (Zakron Comp-U-Bend CNC Control) | CNC (Zakron Comp-U-Bend CNC Control) |
| Dimensions | 85” x 45” x 80” | 85” x 45” x 80” |
| Weight | 4500 | 4500 |

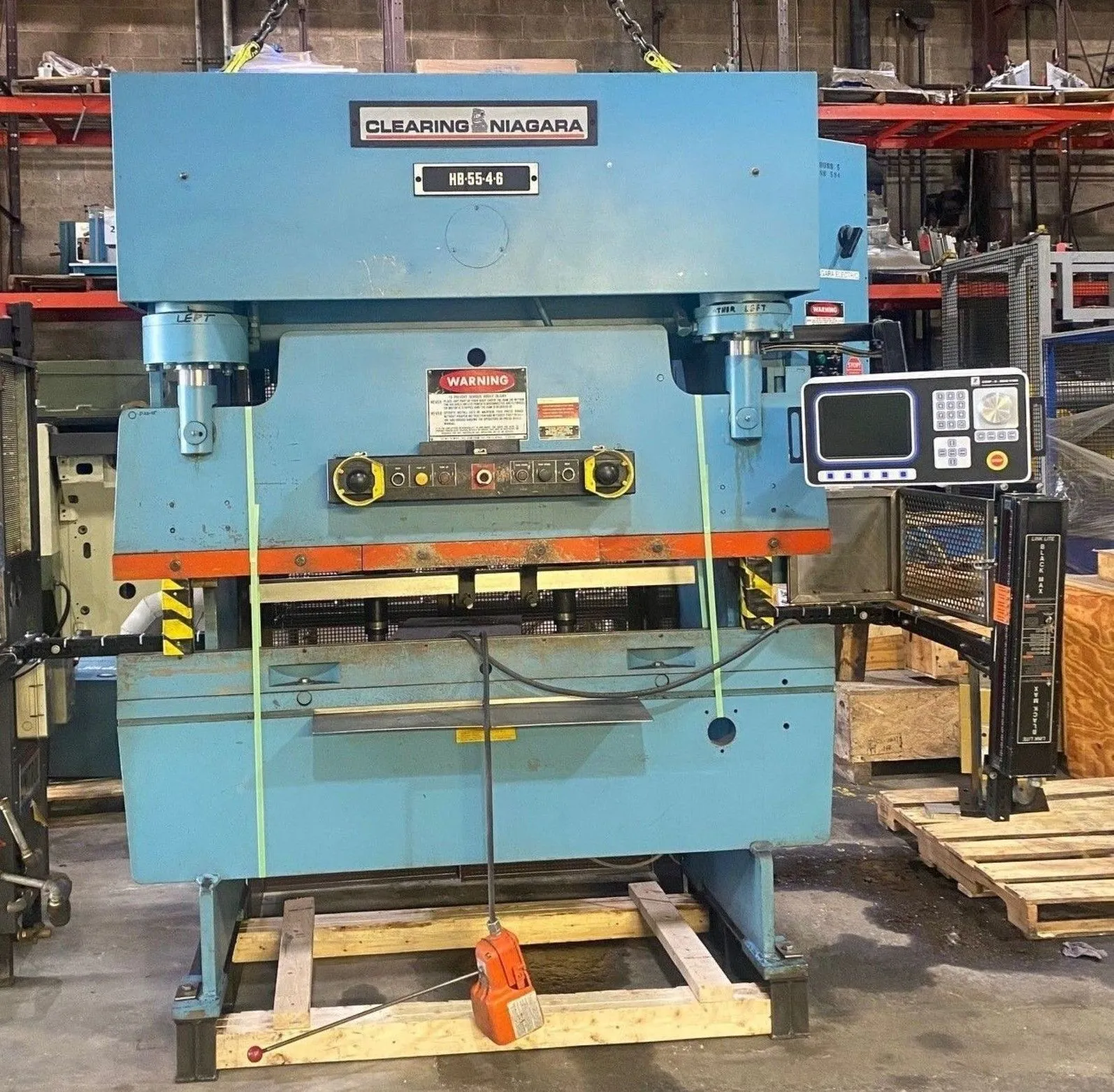

6’ x 10 GA CLEARING NIAGARA 55-TON CNC HYDRAULIC PRESS BRAKE
Serial No P54147, Model HB-55-4-6
EQUIPPED WITH:
Zakron Comp-U-Bend MCI 61000 CNC CONTROL w/2-Axis
Back Gauge (Serial No FE524)
Dual Palm Buttons & Electric Foot Switch
Stroke And Speed Adjustment
Ram Tilt Adjustment
CATALOG SPECIFICATIONS:
Tonnage Capacity, Rated 55 TONS
Overall Length of Bed & Ram 72”
Distance Between Housings 54”
Bending Capacity, Rated 6’ x 10 GA
Die Opening, IN 1-1/8"
Stroke Length, Adjustable 0 to 6”
Open Height 13”
Closed Height 7”
Throat Depth 6”
Ram Speed, Forming 16 IPM
Ram Speed, Approach 157 IPM
Ram Speed, Return 157 IPM
Bed Width 2.5”
Motor Horsepower 5 HP
Weight Approximately 4500 LBS
F.O.B. OUR WAREHOUSE
