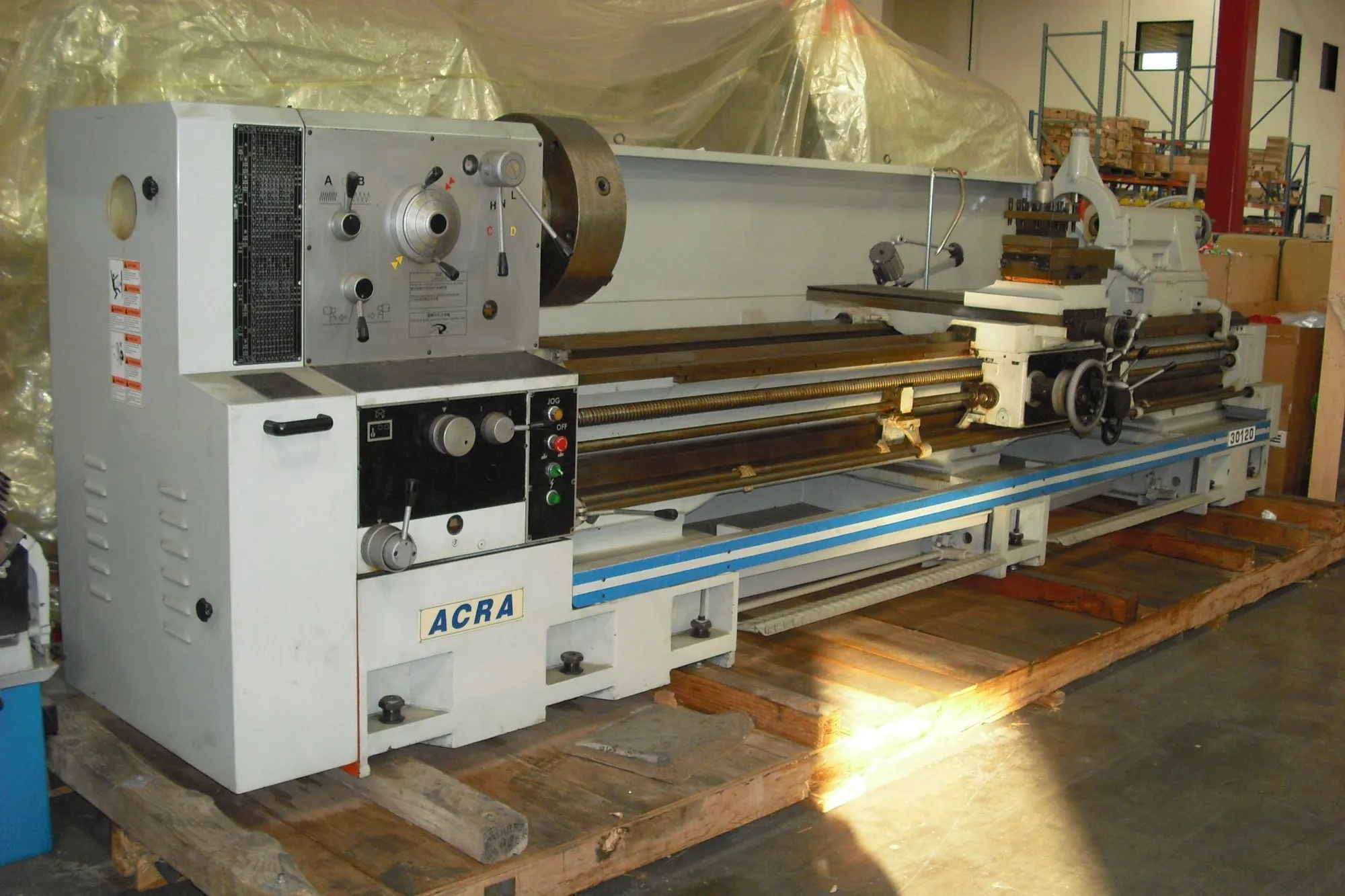

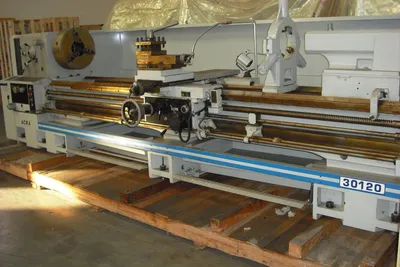

NEW 2024 ACRA 30120 ACH

2024 NEW ACRA Mdl ACH 30120 Eng. lathe, In Stock,Swing 30", CC 120" 20" 3 Jaw, 4 1/16" Bore
ACH lathes are made in the same factory as Kingston lathe. The ACRA ACH 30120 lathe (also referred to by part number 30120B by some suppliers) is a heavy-duty engine lathe with a 30-inch swing over the bed and a 120-inch distance between centers. It features a 15 HP main motor and a large 4-16 inch spindle bore.
Acra machinery was founded in 1965, they have over 30 years of experience in manufacturing high quality manual and CNC machine tools such as Bandsaw, CNC Panel Bending Centre, Corner Notcher, Iron Worker, Laser Cutter, and Plasma Cutter. They also offer an extensive range of sheet metal machinery services.
If you are interested in Sheet Metal Machinery services or any of Acra Machinerys’ high quality products please contact us.

Feature Specification
Swing Over Bed 30 in. (760 mm)
Distance Between Centers 120 in. (3050 mm)
Spindle Bore 4-1/16 in. (114 mm)
Spindle Nose D1-11 Camlock
Spindle Speeds 12 steps, 10 - 1,000 RPM
Main Motor 15 HP
Bed Width 15-3/4 in.
Swing Over Cross Slide 21 in.
Swing In Gap 39 in.
Quill Taper MT5
Voltage 220V/440V AC, 3 Phase (varies)

20" 3 Jaw Chuck
2-Way Rapid Travel
4-way tool post
Foot Brake
Coolant System
Work Lamp
Gap Bed
Full length rear Splash Guard
10" Steady Rest
