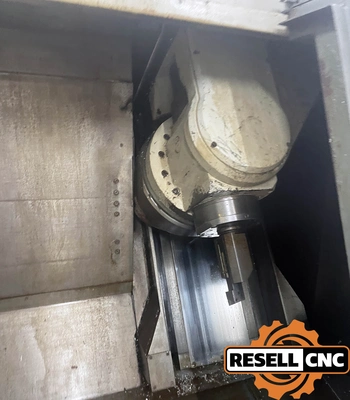

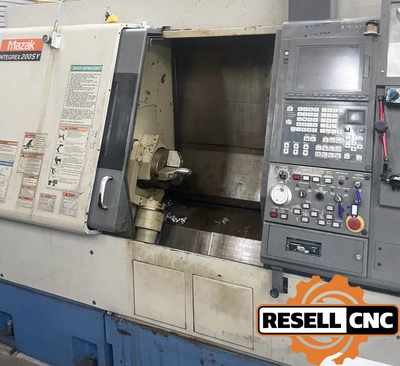

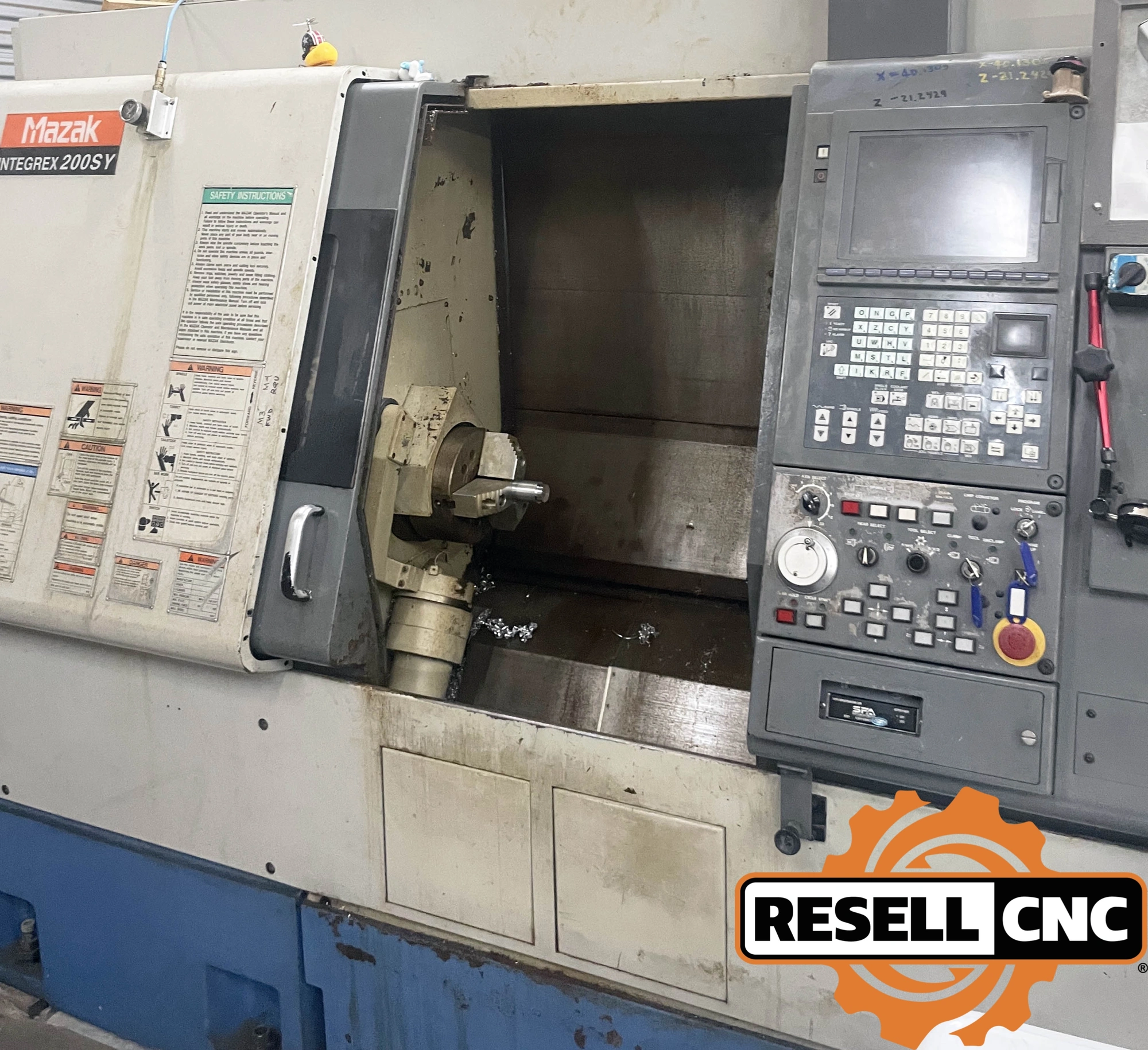

USED 2002 Mazak Integrex 200SY

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Approx Weight And Dims Of Accessories: Max Workpiece Weight: 220.46 lbs

Bar Capacity: 2.0
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 8.0

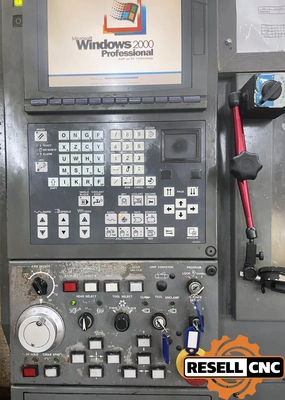

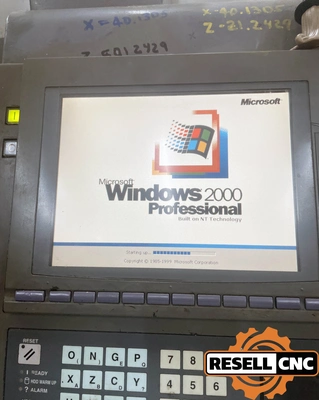

Control Make Model: Mazatrol Fusion 640MT CNC Control
Control Options: Rigid Tapping
Distance Between Centers: 40.08
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Parts Catcher, Tool Presetter
Max Cutting Turning Diameter: 21.26
Max Swing Over Bed: 21.26
Max Swing Over Cross Slide: 20.47
Max Turning Cutting Length: 40.08
Programmable Tailstock: false
Rapid Traverse: 1181/1299
Second Chuck Size: 6.0
Second Spindle Bore: 1.73
Second Spindle Motor: 10
Second Spindle Nose: A2-6
Second Spindle Speed: 5000
Single Turret: true
Single Turret Live Tooling: true
Spindle Bore: 2.4
Spindle Motor: 30
Spindle Nose: A2-6
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 40.0
Total Spindles: 2
Twin Turret: false
X Travel: 20.87
Y Axis: true
Z Travel: 41.93
