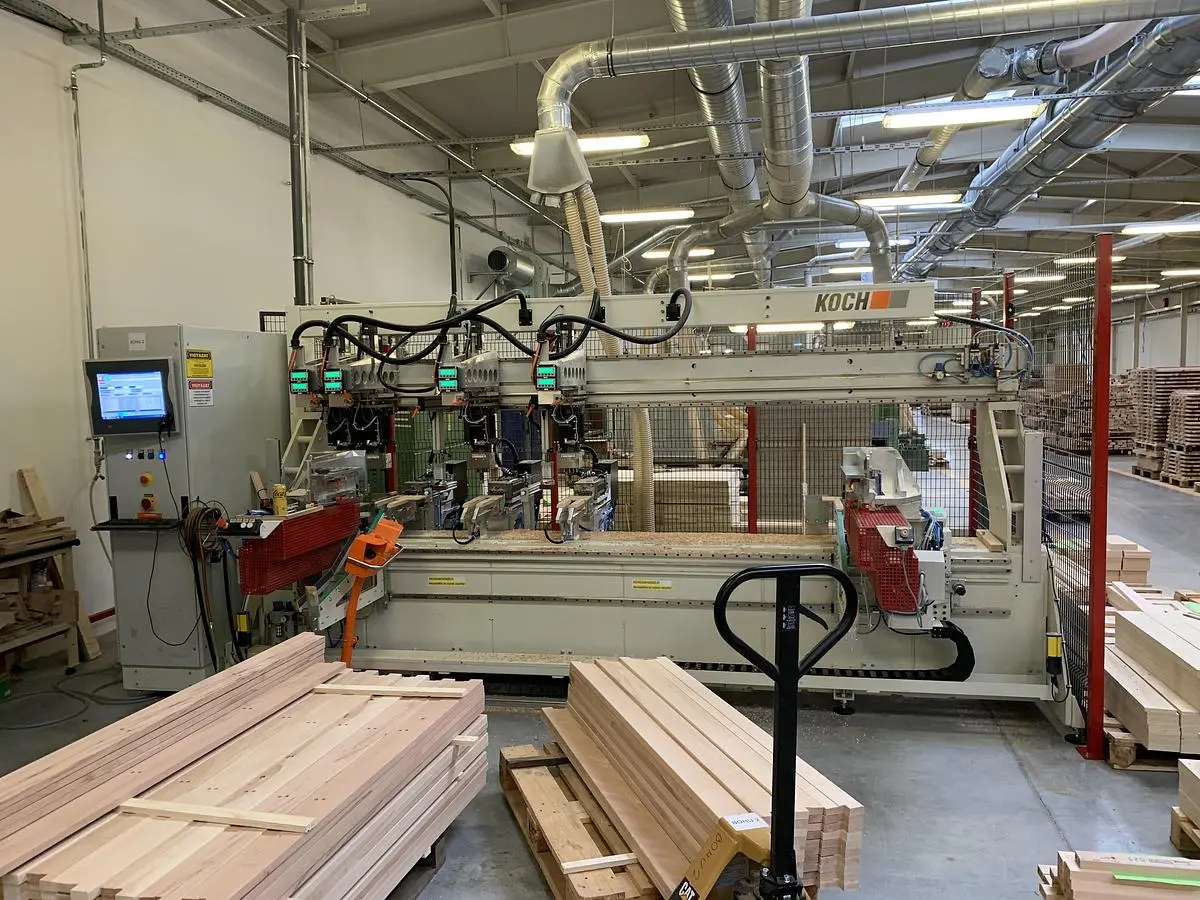

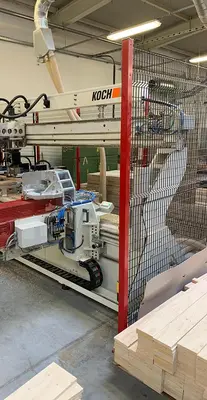

USED 2019 KOCH BL 2500 NC SELECT LINE

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 2019 KOCH BL 2500 NC SELECT LINE

USED 2019 KOCH BL 2500 NC SELECT LINE

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Drilling Machines/Hole Boring Machines
Manufacturer:
KOCH
Model:
BL 2500 NC SELECT LINE
Year:
2019
Stock #:
757226
Description

Manufacturer: KOCH
Model: BL 2500 NC select line
Year of Manufacture: 2019
Type of Machine : Automatic Drilling Machine
FEATURES
• Magazine loading system
• Clamping table for frame parts
• 3 horizontal longitudinal drilling units (from the rear)
• 4 vertical drilling units (from above)
• Manual workpiece insertion possible
• Work cycle activation via dual-hand controls
• Positioning control with KOCH NUMERIC Basic 1
• Beckhoff C6920 Industrial PC control
• 15" touch panel with English interface
• Software prepared for online connection
WORKPIECE DIMENSIONS
• Length: 150 – 2500 mm
• Width: 20 – 300 mm
• Thickness: 10 – 50 mm
• Material: Solid wood
MAGAZINE LOADING
• Workpiece return function
• Driven by two parallel controlled servomotors
• Capacity depends on workpiece weight
CLAMPING TABLE
• For frame parts
• 3 support segments insertable
• Workpiece clamping using cylinders and templates
• Allows machining of custom workpiece dimensions

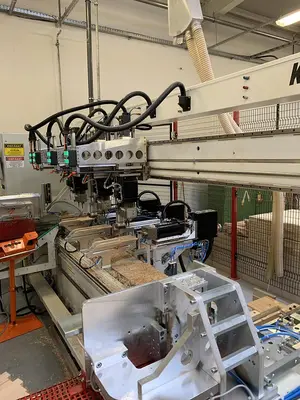

DRILLING UNITS – HORIZONTAL
• 3 longitudinal drilling units from the rear
• Installation width: 160 mm
• Drill motor: 2 kW

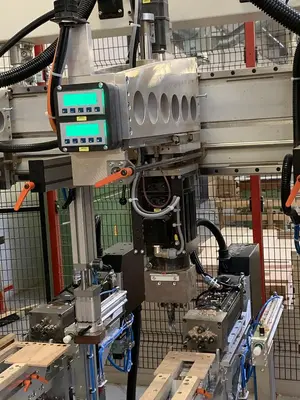

DRILLING UNITS – VERTICAL
• 4 vertical drilling units (mounted on a linear guide)
• Movable across full working width (X), position shown via LCD
• Adjustable drilling depth (Y) with LCD reading
• Vertical clamping cylinder mounted on the unit
• Drill motor: 1.5 kW at 50 Hz
• Drilling stroke: 50 mm
• Bit length: 70 mm
• Speed: 2800 rpm
• 4 rotary rings with quick adjustment and fixed stops at 0° and 90°
• Counter blocks for through holes optional
CONTROL AND PC
• Beckhoff C6920 Industrial PC
• Intel Celeron 2.2 GHz CPU
• 2.5" 320 GB HDD
• Connections: 1× RS232, 2× USB, 1× Ethernet
• 15" touch panel
• Operating system: Windows 7 (English)
• All commands entered via touch panel
• Prepared for online connection (network setup handled by customer)
• USB port available
AXES
• 4× Dynamic NC axes with position control for Z axes
CONNECTION DATA
• Electrical supply: 400 V, 50 Hz, 3-phase
• Voltage fluctuation tolerance: +6% / -10%
• RCD requirements: all-current sensitive (type B), ≥ 300 mA
• Compressed air: 7 bar
• Extraction air velocity: minimum 30 m/s
