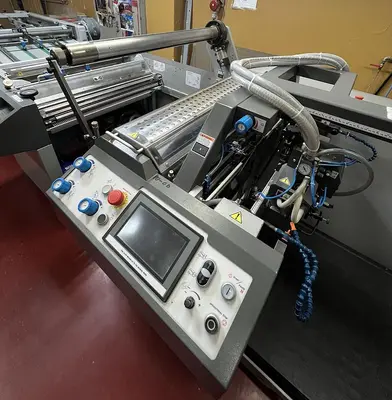

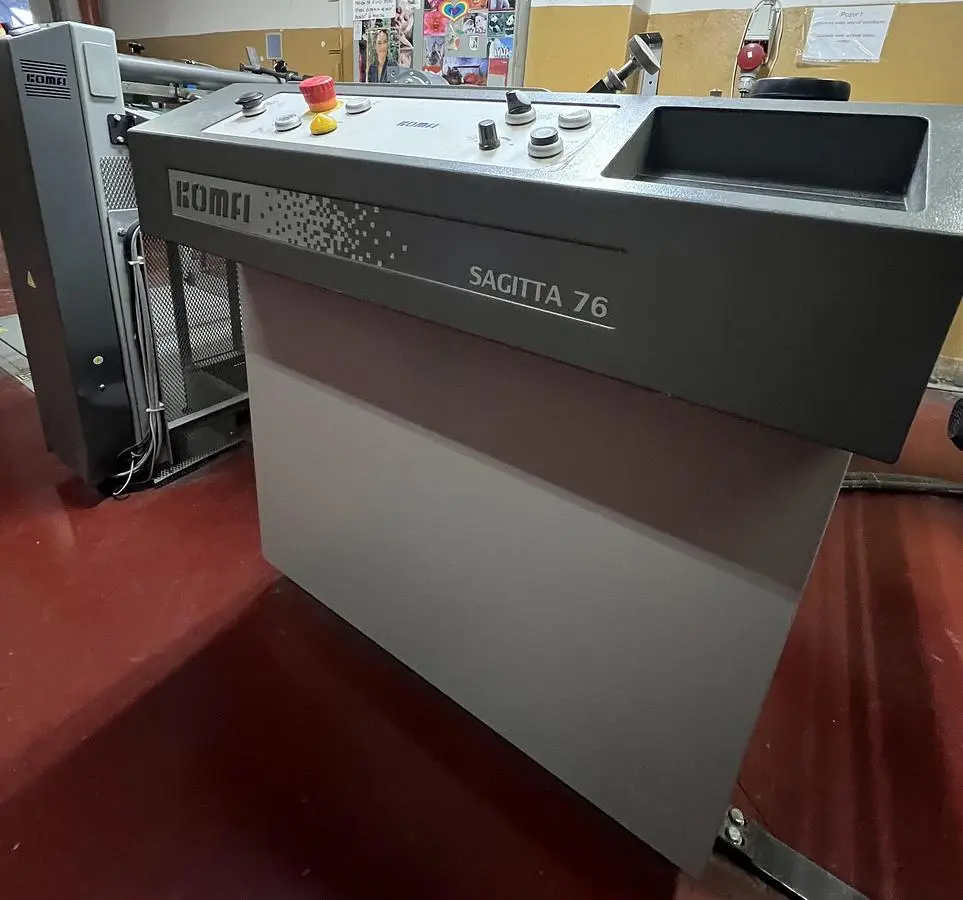

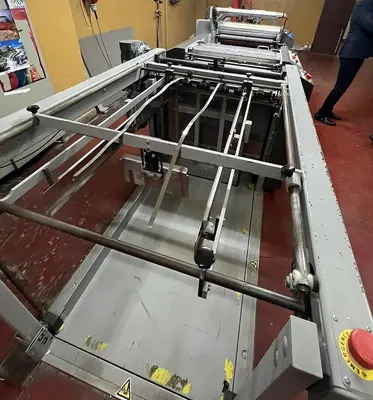

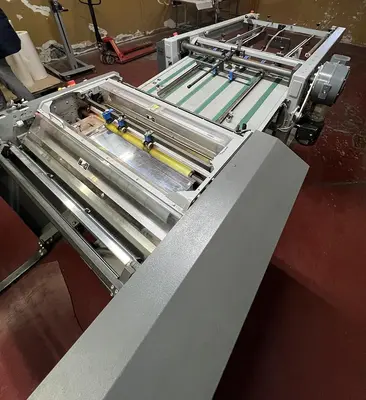

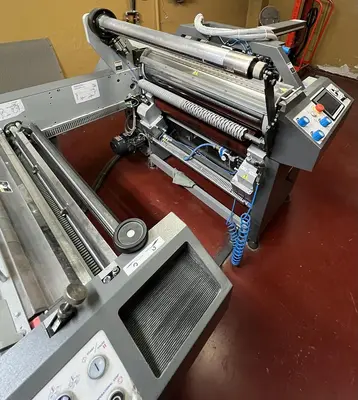

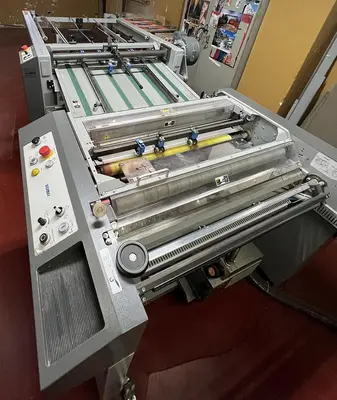

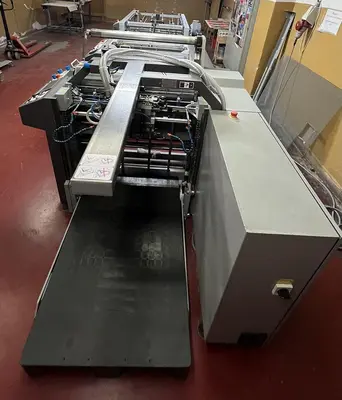

automatic thermo-laminator
Type: Sagitta 76
Manufacturer: Komfi
Year: 2021
The Sagitta 76 laminating machine is a professional, high-performance device designed for single-sided lamination of jobs printed by offset or digital printing presses, up to B1 format.
The main advantages of this machine include its easy setup, user-friendly operation, and convenient access to functional parts, allowing for minimal setup times. Its durable mechanical construction ensures reliable operation at high speeds, even in continuous three-shift production.
Basic machine configuration
Single-system KOMFI feeding head
Automatic sheet feeding directly from a pallet
Automatic stacker
Automatic sheet overlap control
Laminating roller heated by a five-zone resistive heater with PID regulation
Polyurethane pressure roller
Automatic sheet separation using a built-in perforator and cutting knives
Pneumatic, electronically controlled tearing unit with adjustable tearing roller speed
Automatic sheet separation control
Built-in perforator
Adjustable alignment bar
Rotary slitting knives
Vacuum pump
Additional feeder air blowers for long sheets
Missing sheet detection
Sheet separation detector
Temperature and pressure drop warning signal
Expanding unwind shaft
Antistatic bar
OTF module for applying overlay film
Maximum laminating speed: 60 m/min
Minimum sheet size: 30 × 22 cm
Maximum sheet size: 76 × 112 cm
Maximum feeder pile height: 68 cm
Sheet grammage: 115 – 600 g/m²
Laminating film thickness: 24 – 50 µm
Types of laminating film: OPP, PET, Nylon
Heating time of laminating roller (25 – 100 °C): approx. 5 min
Sheet overlap accuracy (at constant laminating speed): ± 2 mm
Electrical connection: 16.5 kVA, 3 × NPE 400 V AC, 50 Hz
Compressed air consumption: 70 l/min
Machine dimensions including table/stacker (L × W × H): 410 × 156 × 132 cm / 520 × 156 × 132 cm
In very good condition, fully functional
