USED 2005 STARRAG CWK 400D

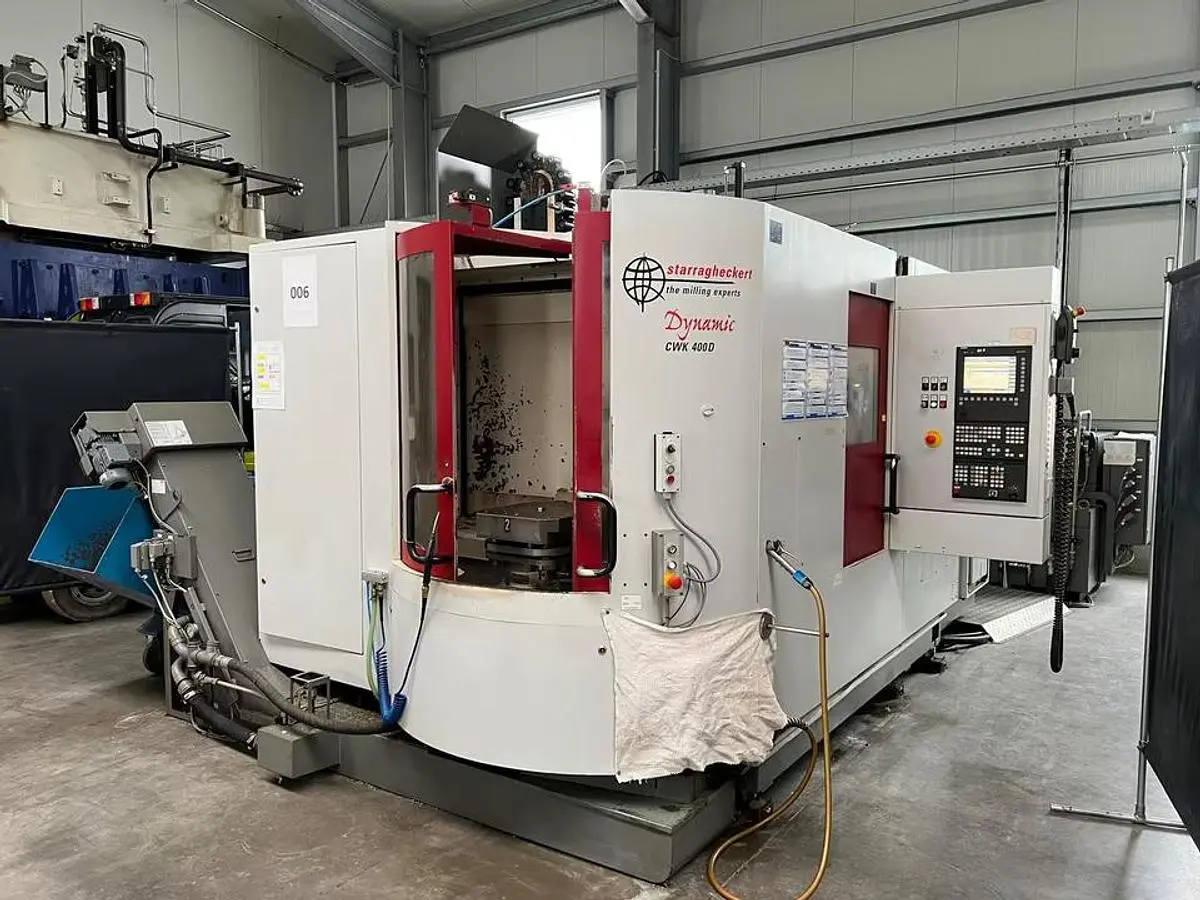

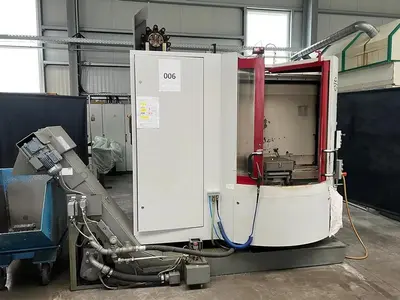

Starrag CWK 400D – 4-axis horizontal machining center

A 4-axis horizontal machining center from Starrag is available for sale.
The machine is used, regularly maintained, and in fully functional condition.

**Machine details**
-Manufacturer: Starrag
-Model: CWK 400D
-Year of manufacture: 2005
-Operating hours: 32,099

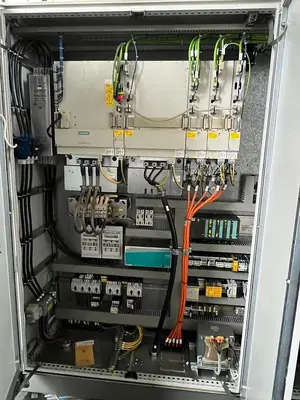

-Control system: Siemens Sinumerik 840D
-Machine weight: 12,800 kg
-Space requirement (LxW): 5.8 × 4.8 m

**Technical data**
Travel distances:
-X = 625 mm
-Y = 650 mm
-Z = 650 mm
-B axis: 360° (0.001°) / 100 rpm
-Spindle speed: 50 – 10,000 rpm (stepless)
-Motor power: 24 kW / 37 kW
-Torque: 230 Nm / 350 Nm

**Table & pallets**
-2 pallets, each 500 × 400 mm
-T-slots according to DIN 55201
-Load: 400 kg
-Pallet changer available (change time 8 s / 5 s)

**Tool data**
-Mounting: DIN 69893-HSK-A63

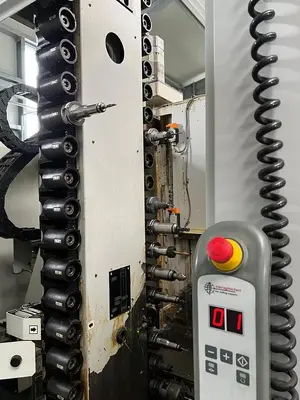

-Chain magazine with 60 spaces
-Tool diameter: 80 mm (up to 160 mm with free auxiliary spaces)
-Max. tool length: 350 mm
-Max. tool weight: 10 kg
-Total tool weight: 200 kg

** Equipment & extras**

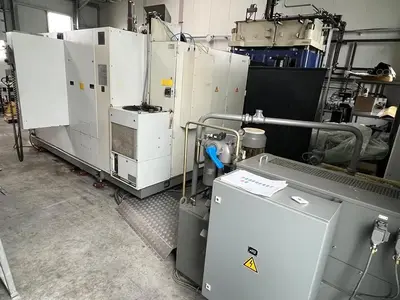

-Coolant system (emulsion, internal & external, approx. 1100 L)
-Knoll cooling lubricant unit with fleece filter (30, 40, 50 bar)
-Measuring probe: Renishaw
-Tool breakage monitoring in the magazine

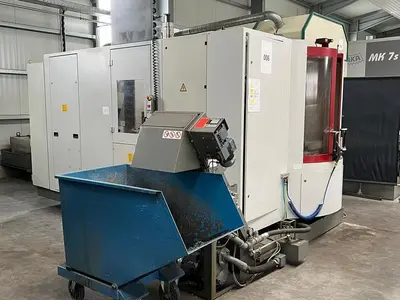

-Chip conveyor
-Splash shower, paper belt filter, rinsing gun at the setup station

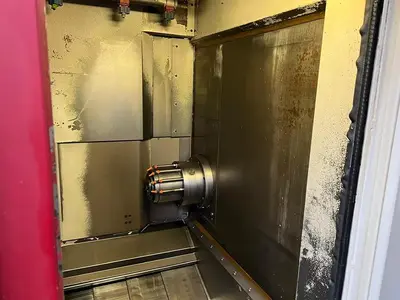

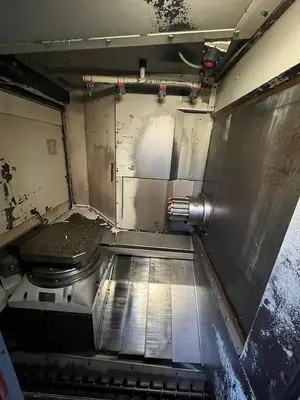

-Closed work area cladding in accordance with UVV
-Pallet sequence operation
-Network connection, Ethernet interface
-Technical documents & installation plan available

**Maintenance**
-Performed regularly
-Machine is fully functional
