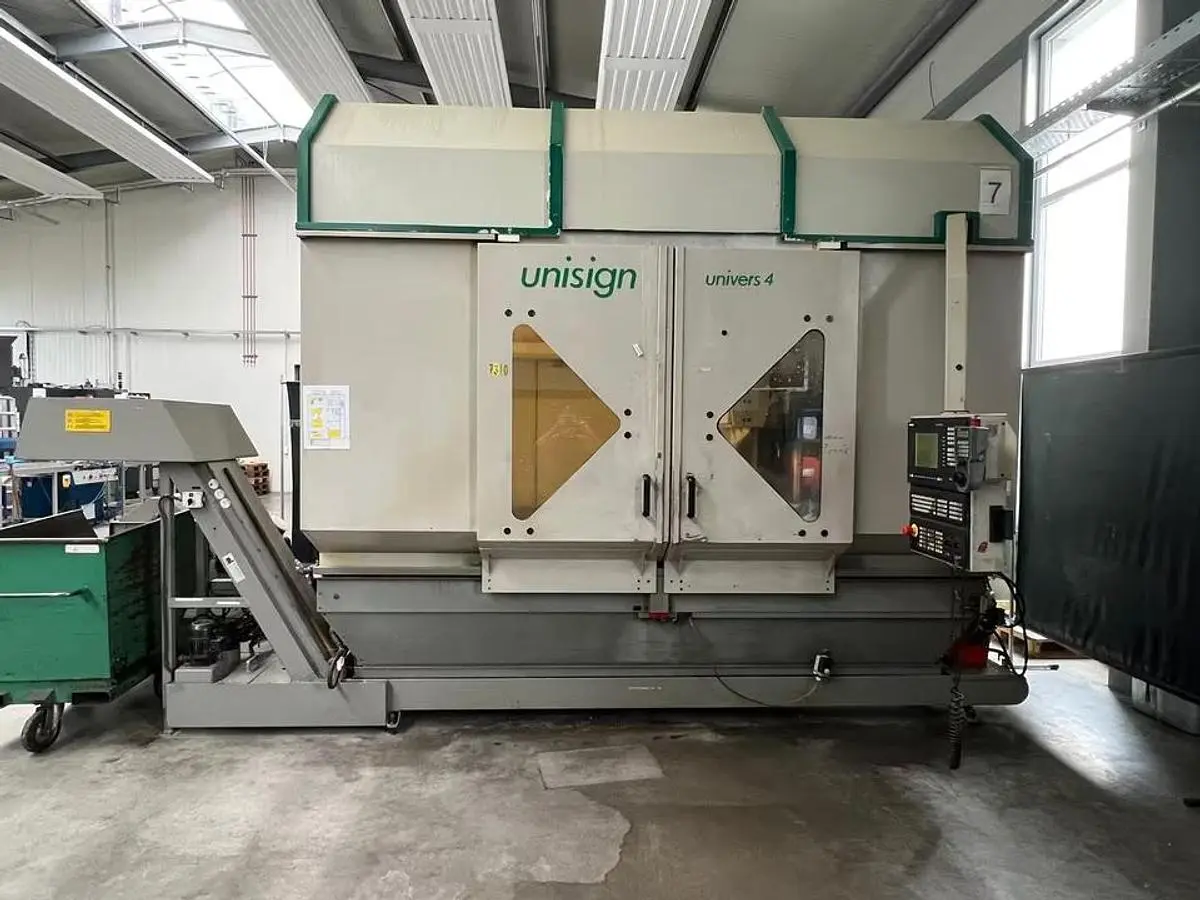

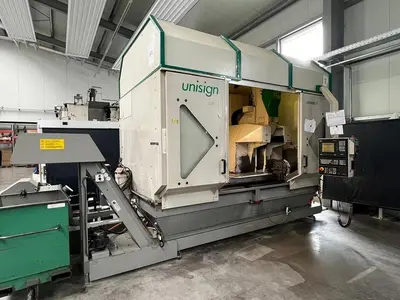

A 4-axis vertical machining center from the manufacturer Unisign, model Univers 4, built in 2004, is for sale.
The machine is used but in good condition, fully functional, and has been regularly maintained.
Special highlight: second milling spindle (replacement milling spindle available).
Operating hours: 19,357
**Key technical data**

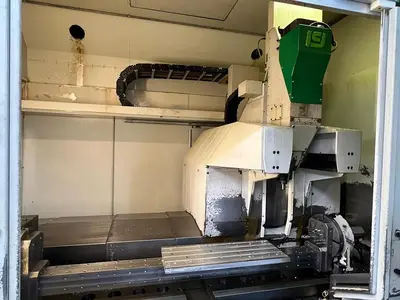

-Travel distances: X = 1600 mm / Y = 400 mm / Z = 400 mm

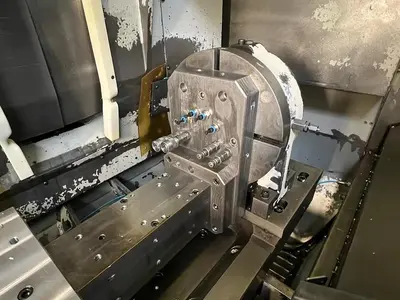

-B-axis: A-axis (360° x 0.001°) 20 rpm
-Spindle speed: 0 – 9000 rpm
-Control: Siemens Sinumerik 810D

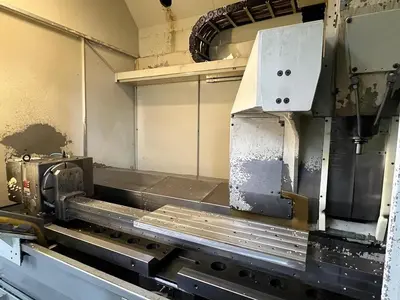

-Table size: 1 bridge with 4 sides, L 1800 mm, 4 x 113 mm
-Table load: approx. 150 kg
-Working feed: 5 – 28000 mm/min
-Rapid traverse (X/Y/Z): 28000 mm/min
**Tool & magazine**
-Tool holder: DIN 69871-SK40

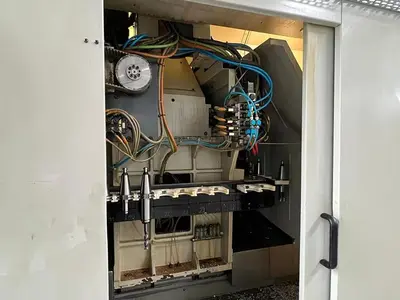

-Chain magazine with 44 slots
-Tool diameter: approx. 70 mm (with free slots up to 200 mm)
-Max. tool length: approx. 240 mm
-Max. tool weight: 5 kg
-Max. total weight of tool magazine: approx. 200 kg
-Tool change time: approx. 8 sec
**Machine requirements & dimensions**
-Total power requirement: 14 kW
-Machine weight: approx. 9000 kg
-Space requirements (LxW): approx. 6.5 x 3.5 m
**Equipment & accessories**

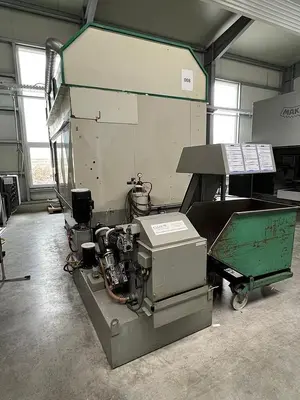

-Coolant system (approx. 480 L, emulsion inside & outside)

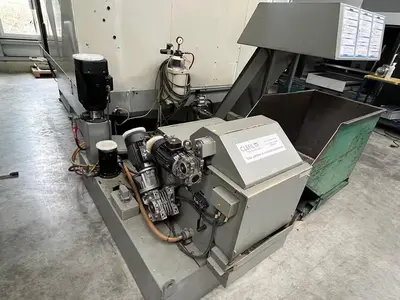

-Clefil RBF-E100 20 bar unit
-Chip conveyor
-Rinsing gun in the machining area
-Hydraulic/pneumatic clamping options in the machining area
-Closed work area enclosure in accordance with UVV

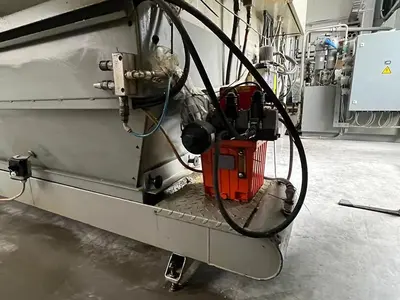

-Röhmheld hydraulic unit (max. 500 bar)
-Automatic RWP20.00 measuring probe
-Various SK40 mounts
-Technical documents & installation plan available
**Maintenance**
-Regular maintenance performed
-Hydraulic and pneumatic hoses partially replaced
-LT module replaced in the control cabinet
The machine is ready for immediate use.
