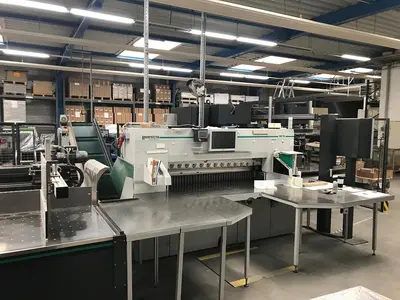

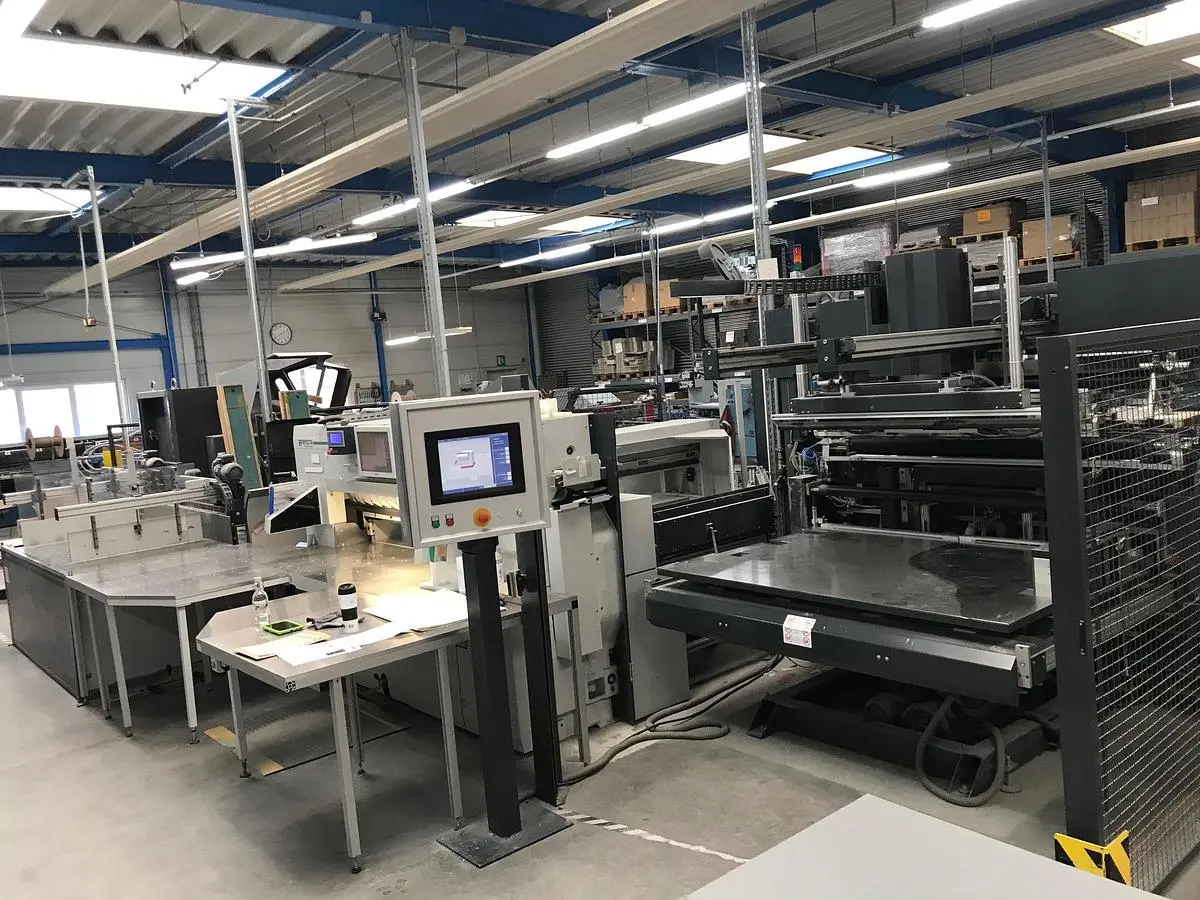

USED 2013 PERFECTA CUTTING LINE

We are offering for sale a Perfecta cutting line, all components built in 2013, consisting of:

1.High-Performance High-Speed Cutter Perfecta 168 TS

Cutting width: 1,680 mm, usable rear table length: 1,680 mm

Working height: 165 mm, min. offcut strip: 26 mm

Pressing force: 3.5-60 kN

Material clamp + rotating saddle, 6 carbide knives, with 5 knife boxes

Table height: 890 mm

Side tables on the right: 1 x 1.5 m, left: 1 x 0.5 x 1.5 m + 0.5 x 1.25 m

Net weight: 6,900 kg

- Total: 6 knives, all in good condition, 2 of which are almost As good as new

The unloader can also be rotated 90 degrees parallel to the paper discharge direction if required.

2.Perfecta ZTS 2750 Clamp Transport System

For automatic feeding of the high-speed cutter via the rear table.The cutting line is in very good condition and still in production.

Max. clamp travel: 2,750 mm

Insertion height without adapter: 30 - 165 mm

Insertion height with adapter: 0 - 135 mm

3.BASA 7 Automatic Jogging Machine

Max. sheet size: 1,260 x 1,670 mm

Min. sheet size: 550 x 660 mm – NEW!

Max. stack height: 1,400 mm

Grammage: 60 - 300 g/m², can be fed from the right or left

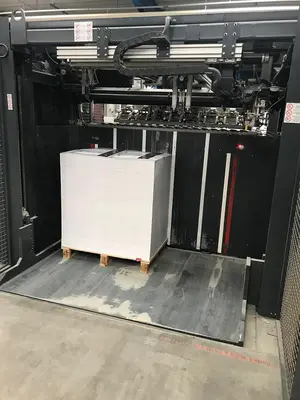

4.Perfecta Unloader BA 6

Max. size: 1,050 x 1,450 mm

Layer height: 160 mm

Max. stack height: mm 1400

Maximum load capacity: 300 kg

An external compressed air connection of 6 bar is required – for required specifications, including electrical connections

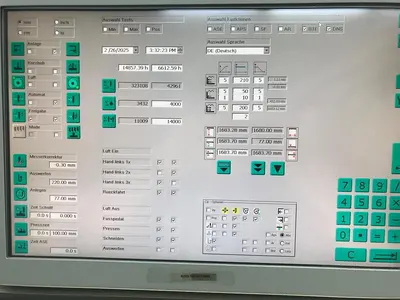

Human/Machine Interface:

- 15" touchscreen - with intelligent operator guidance, technology memory, modem, USB interface, Ethernet

- Direct processing of prepress data on the machine control system without additional hardware (CIP 3; CIP 4 - optional)

- Spare parts package - wear parts, list to follow
