COTTON SPINNING SMALL OPEN END LINE – YOC – 2007
Composition:

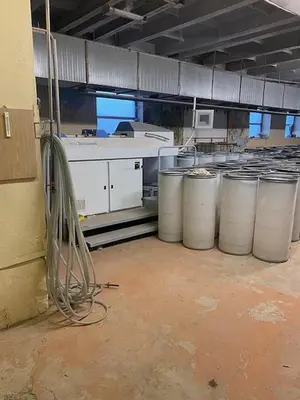

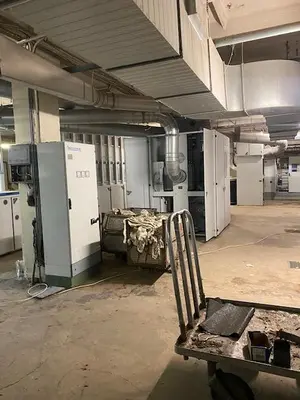

1. Cotton Blow room – 1 set ( capacity 500-800 kgs/h cotton), composed
of:

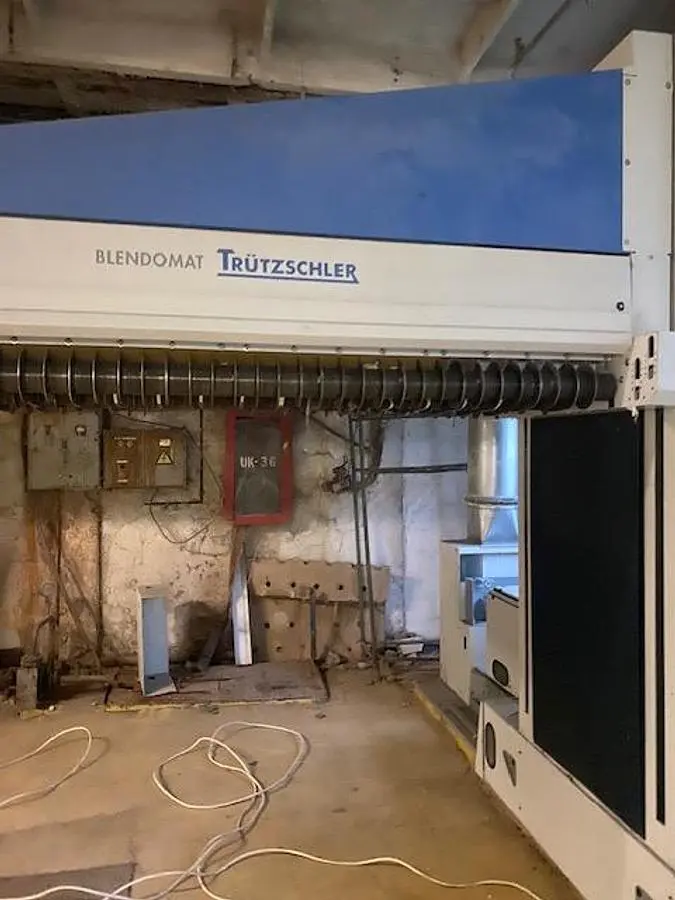

- Blendomat – 36 m rails for 36 bales, 2 rollers bale plucker
- Staend.Br – condenser
- SP-EM – metal separator
- CL-C3 - Cleanomat ( fine cleamer)
- MX-1-10 – multimixer
- SP-DX - Dustex

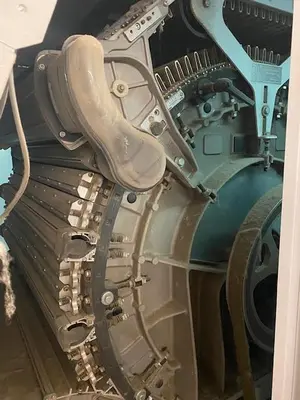

2. Flat cards model TC-03 - 3 sets ( 60-90 kgs/h /each)- with:
- DFK chute feeds
- 3 liker in ; 12 stat.flats front and 6 st.flats back
- IDF – autolevellers
- Automatic can changer – cans dia 1000x1200 mm
3. Drawing frames TD -03 - 2 sets ( prod. Speed 600-800 m/min)
- Creel for 8 slivers/cans
- Cans delivery – 450 x1000 mm
4. Rotor spinning machines AUTOCORO 360 of 168 rotors /each – 2 sets
- Delivery – 6” cylindrical ( waxing)
- Rotors – type BD ( cotton) ( S556-BD & G536-BD on second machine)
- Combers – B 174 DN
- Yarn clearers – Corolab XQ
- 2 robots on one machine and 1 robot on second machine

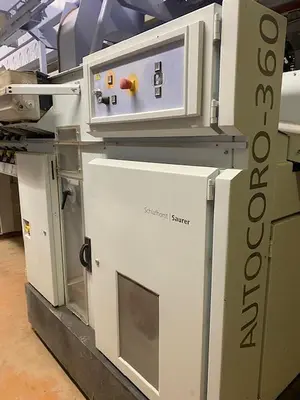

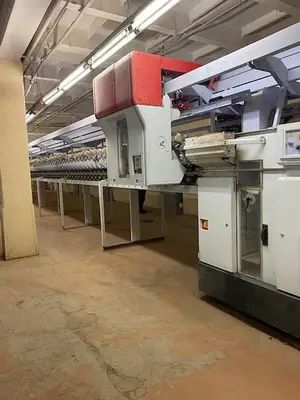

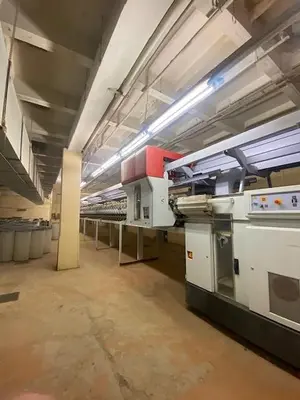

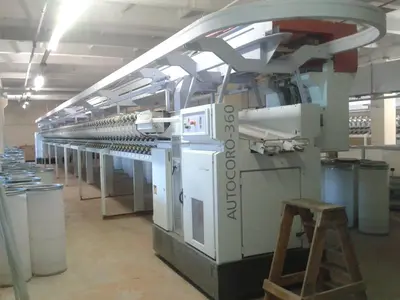

AUTOCORO 360 – 168 pos.- 2 sets
- Automatic rotor spinning Equipped with :
- IDS – Intelligent Drive System ( setting rotor speed, take -up tension, spinning vacuum, yarn twist
and draft infinitely adjustable via frequency converter)
_ EVA – electronic vacuum adjustment electronically controlled 65-95 mbar
- Conveyor belt for removal of packages on each side
- Spinbox – Corobox SE 12 for rotor speeds 40.000 to 150.000 rpm as function of sliver and
yarn count
- Twin disc bearings for yarns of up to 60 mm long natural and blends
- SDSI – single drive intake individual motor drive sliver intake for slivers up to 7 ktex ( nm
0.14 and drafts 20-450 folds
- Complete with opening rollers, rotors and navels
- COROMAT – 2 pcs with EIS event identification system, yarn piecing and doffing
- Cleaning head for mechanical and pneumatic cleaning of rotors, spin box, navel and doff
tube
- Laser light barrier to control rotor speed and piecing cycle – piecing tester
- SRZ winding units for cylinder Coro-Pack packages for compact yarn up to 300 mm dia
- Max take up speed 220m/min at 30 degree angle
- Length measuring system for yarn packages
- COROLAB XQ Yarn monitoring system.
Factory was producing 100% cotton yarn – Nm 4 – Nm 40.
