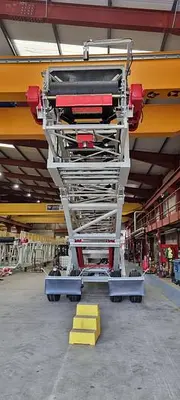

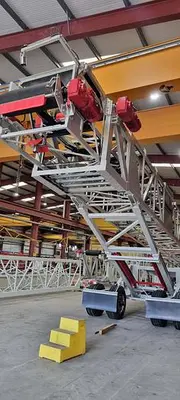

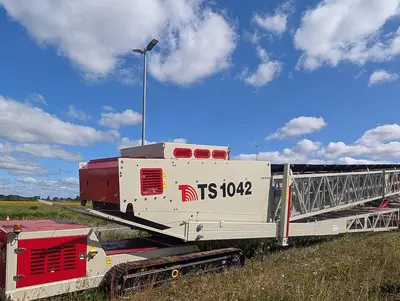

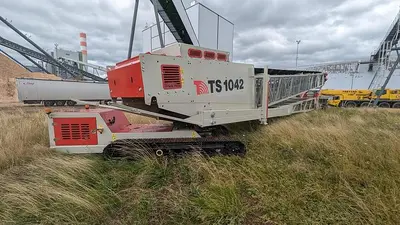

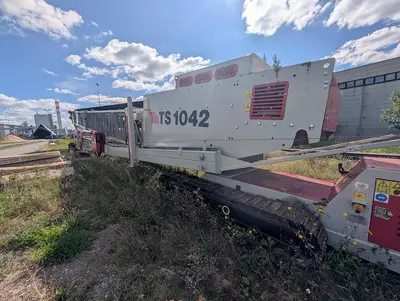

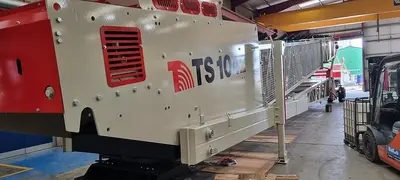

Manufacturer: Telestack
Model: TS 1042
Condition - Like new. Its been barely used.
Hours - 61 hours only
Task:
Technical Specifications:
Electric Drive System:
Performance & Storage:
Dimensions & Weight:
Capacity and technical data: TELESTACK TS 1042
Material: Wood chips
Max. feed size: 0-80 mm, max. 100 mm
Max. bulk density: approx. 0.4 t/m³, max. 0.5 t/m³
Average output: approx. 225 t/h, max. 250 t/h
Moisture content: 20%
Application description: Stockpiling wood chips in storage boxes

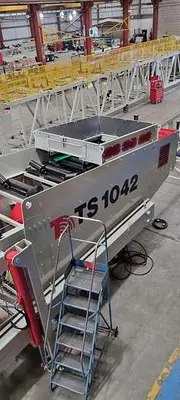

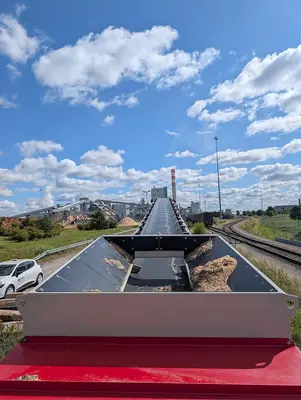

Receiving hopper for material transfer from a screening, crushing, or conveyor system,
intake height approx. 3,000 mm, depending on the conveyor angle,
max. feed grain size 100 mm,
hydraulic height adjustment and telescopic device from the control panel,

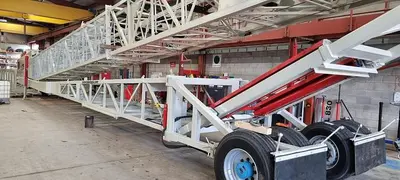

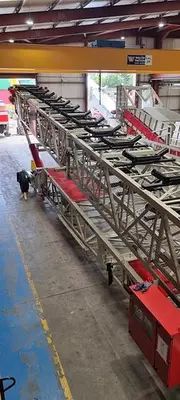

belt length up to approx. 42,720 mm,
max. discharge height up to approx. 14,520 mm,
smooth belt 1050 mm wide, three-layer EP400 4:2,
electric drive: 18.5 kW main belt, 2 x 5.5 kW telescopic belt,

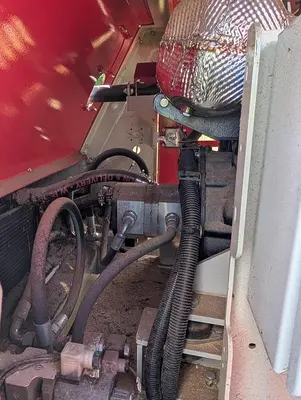

1.1 kW telescopic drive, 5.5 kW electrohydraulic power pack,

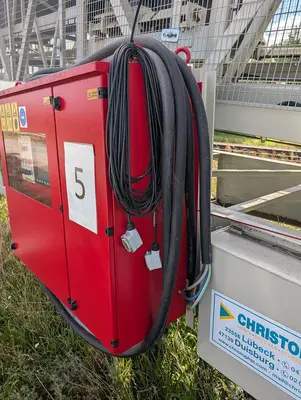

control cabinet with connection for all electrical consumers and on-site interlock to the feed belt,
transport capacity: max. 250 t/h with a bulk density of 0.4-0.5 t/h,
storage capacity approx. 4,024 – 57,365 m³ (0-270 degrees),
Minimum overall dimensions,
fully retracted and lowered: length approx. 27,780 mm, width approx. 3,700 mm, height 5,540 mm,
swiveling and telescoping via control cabinet,
weight approx. 25,700 kg
