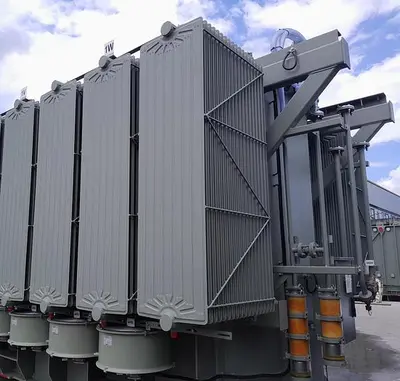

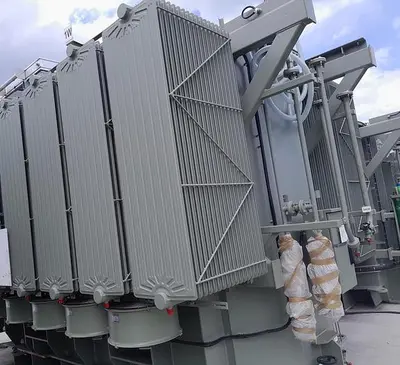

USED SGB HIGH-VOLTAGE TRANSFORMER 63MVA, 31,5KV/115KV, 40 OHM

USED SGB HIGH-VOLTAGE TRANSFORMER 63MVA, 31,5KV/115KV, 40 OHM

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Transformers
Manufacturer:
SGB
Model:
HIGH-VOLTAGE TRANSFORMER 63MVA, 31,5KV/115KV, 40 OHM
Stock #:
755629
Description

Model: DOTR 63000/123
Rated Power: 50 / 63 MVA
High Voltage (HV): 115 kV
High Voltage Tapping Range: +9 / -9 x 1.778% (adjustable under load)
Insulation Level HV: 123/550/230 kV
Low Voltage (LV): 31.5 kV
Insulation Level LV: 36/170/70 kV
Tertiary Voltage: 6 kV
Insulation Level TW: 12/75/28 kV
Frequency: 50 Hz
Vector Group: Yynyn0(d)
Cooling Method: ONAN / ONAF
Maximum Oil Temperature Rise: 60 K
Maximum Winding Temperature Rise: 65 K
Ambient Temperature Range: -25°C to 40°C
Impedance:
No-Load Losses: 12.5 kW (+IEC-Tolerance)
Load Losses at 50 MVA: 154 kW (+IEC-Tolerance)
Noise Power Level at ONAF (No Load): 80 dB(A)
Weight Details:
Dimensions:

FAT in 2024
Manufacturer's warranty still valid

Find more here - https://www.ucymachines.com/

Contact us at - [email protected]
