1) Twin Vitacount 12-2

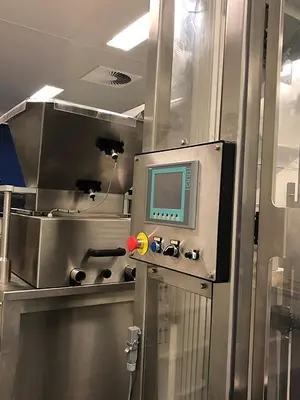

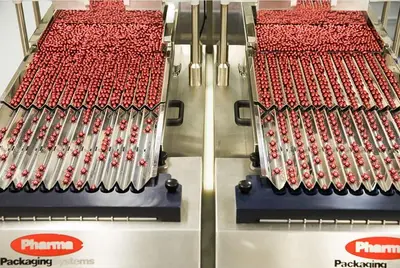

The Vitacount 12-1 is the lower cost solution designed for vitamin applications, yet it combines proven product feed technology with electronic controls and infrared count heads as used on the higher specification machines. The 12-1 features 12 product feed tracks. The Vitacount features an integrated chip and dust extraction system. A touch screen control panel allows easy access to machine and product parameters, giving the operator good visibility of the complete filling process.
The product library can store up to 1000 different set-ups and offers instant recall of both product and machine parameters.
Vitacount is height adjustable by means of the manually adjusted telescopic funnel arrangement to allow differing heights of bottle to be filled and the system offers maximum versatility as product feed system requires no change parts and is capable of packaging all tablet and capsule forms.
Vitacount 12-1 Features Include:

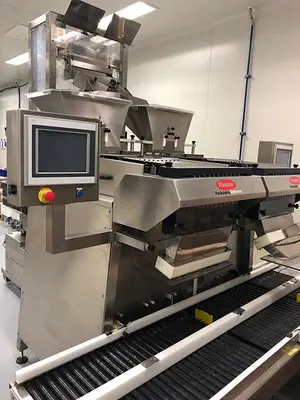

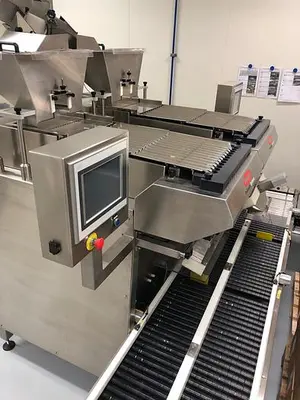

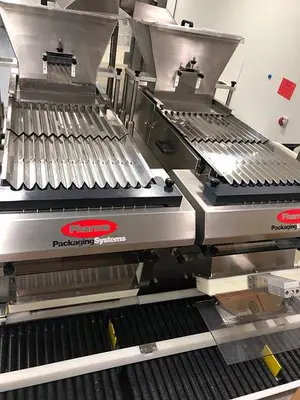

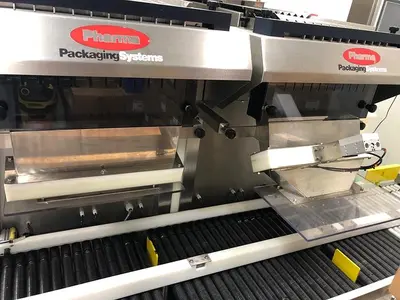

This is an electronic counting and filling system for softgels (or tablets) in bulk, with an output of approximately 13,000 caps/min. The Vitacount setup includes 2 bunkers, 2 x 12 counting heads, and 2 x 12 vibrating ducts, all controlled by a PLC and a 12” HMI interface module.
The entire setup is made of stainless steel (SS 304/316) and designed to meet GMP standards.
The dimensions of this setup are approximately: 3.0 x 3.0 meters, plus a conveyor measuring 250 cm x 40 cm.
2) Pharmalift:

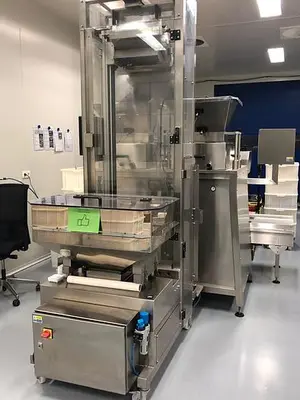

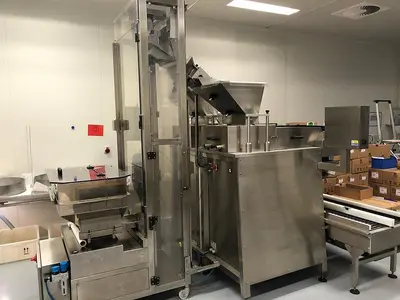

The Pharmalift is the ideal bulk feeder for integration with either tablet counting machines or blister machines.
Pharmalift Features Include:

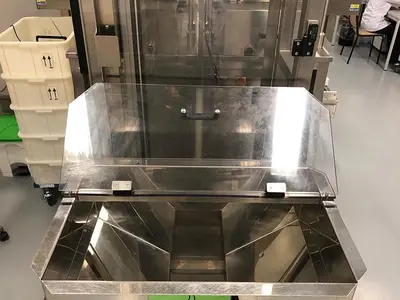

Pharmalift provides a large capacity bulk hopper at operator level that will feed on demand to the filling machine. Touch-screen / PLC control system allows the vibratory feed speed to be optimized for each product and allows start and stop functions as well as test and displays machine status and any alarm signals.
Dust and Chip Extraction System Removal Prior to Delivering to Tablet Counter or Blister Machines
Linear vibratory drive feeds product over perforated section to remove dust and chips before passing the product in the elevator lift bucket. When the bucket is filled to correct level with product it is raised by a pneumatic rod-less cylinder.

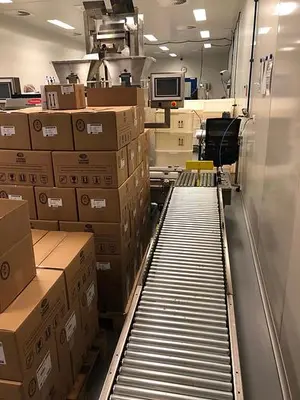

3) Conveyor
