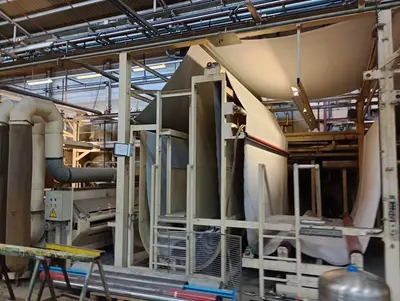

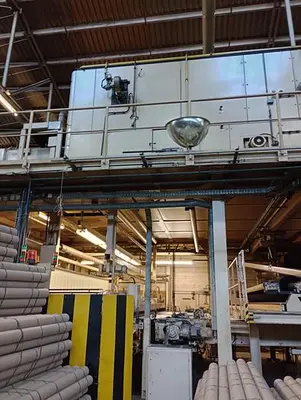

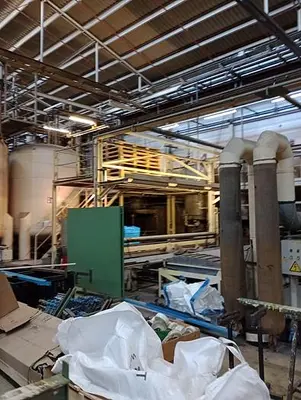

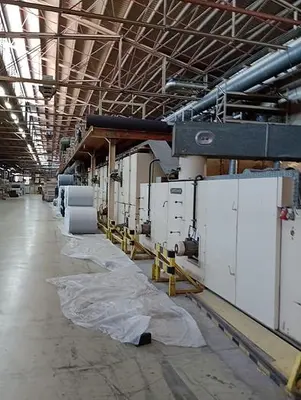

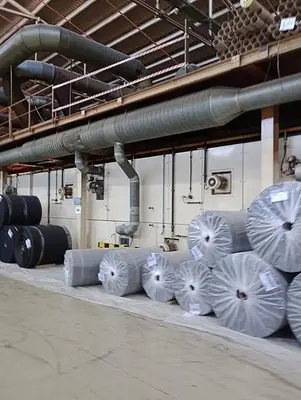

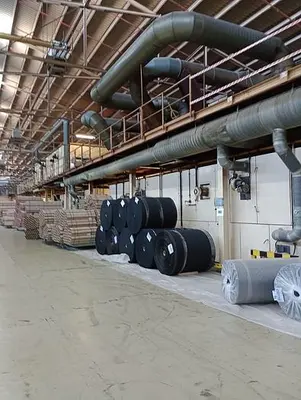

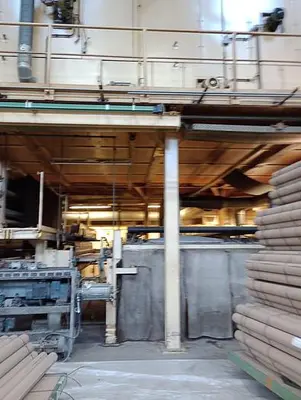

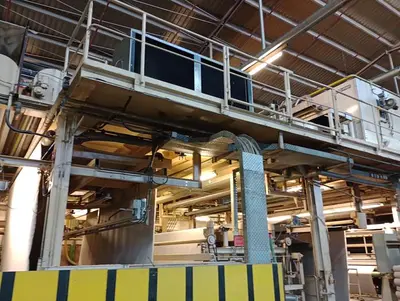

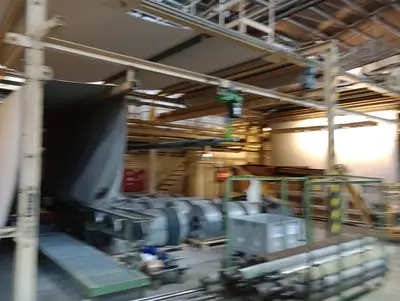

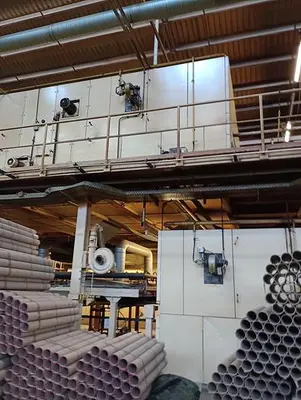

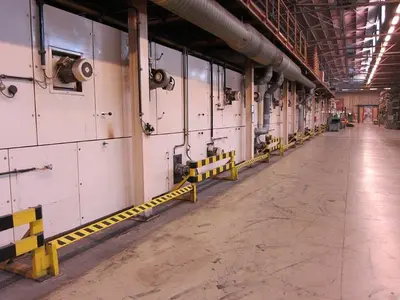

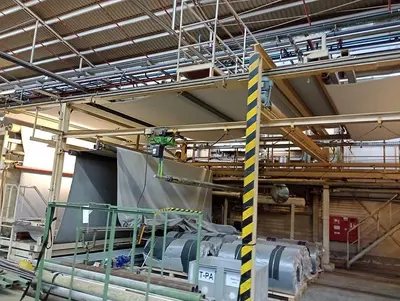

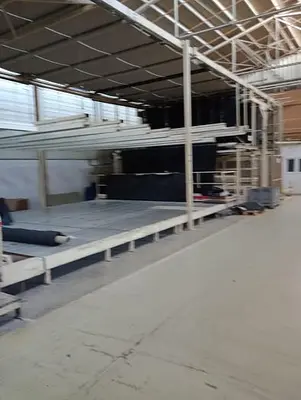

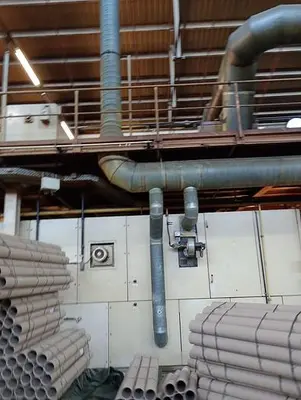

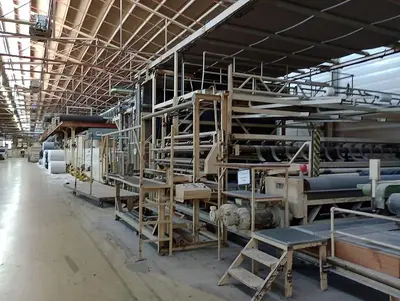

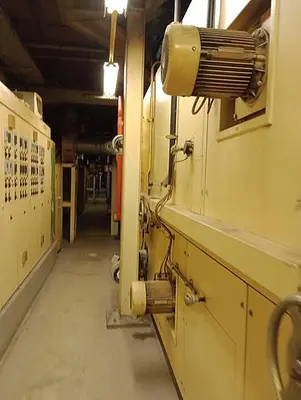

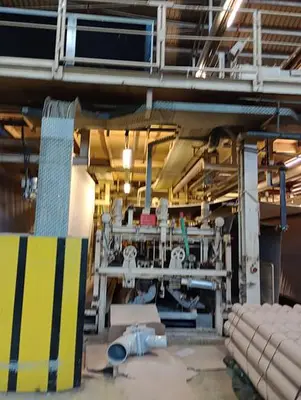

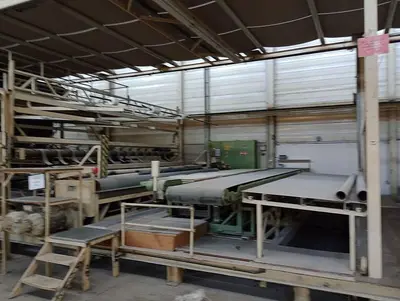

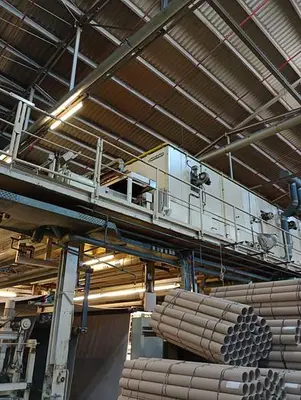

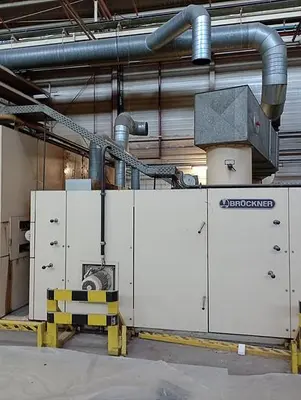

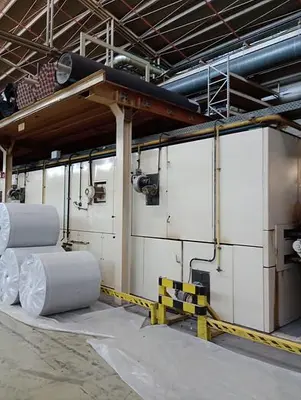

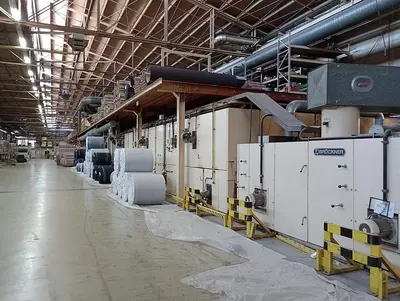

Latex coating system by Brückner
Back Coating Line
Technical data:
Max. Working width: 5200 mm
Back Coating Line
can be used up to a clamping width of 5250 mm.
Min. working width: 3400 mm for Prage 3500 mm
Drive speed: 2 -. 15 m/min.
Drive: Direct current motors
Operating side: right
Colour of the system: RAL 1.015 structure
Goods transport system: vertical needle chain
Length of one field: 3 m
Fans per field: 2
The output of one fan: . Fan power: 7.5 kW
Heating systems - per field: 2, separately above and below the web
Adjustable air temperature: 50 - 250 .° C
Achievable temperature spread:
160 ° at the top, 100 ° at the bottom
or top 200 ° , bottom 125 °

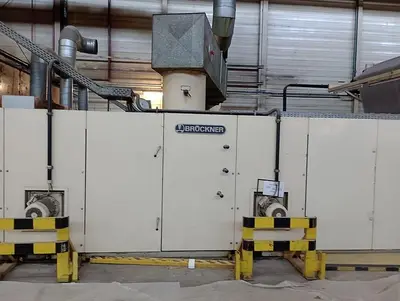

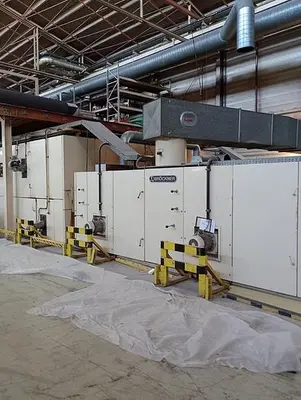

Size of the dryer
Pre-drying: 5 fields
Gelling channel: 3 fields
Vulcanising channel: 12 fields
Production speed: 9- m/min. with the following data:
Precoat: 725 g/m2 dry,- 76. % dry matter
Foam: 650 g/m2 dry, 72- % dry matter
Carpet pile: 100' % PA
Weight pile and carrier: 600 g/m2
Air temperature:
reverse side 170 - 180 °C
Field 14 + 15 140 ° C
Pile side 135 ° C
Cooling: 50 ° on the foam surface at 20 ° room temperature
Heat-up time to _180./135 °C : • max. 20 min.
Gas consumption with dry
dry goods: approx. 2.2.10 6 kcal/h
incl. I-emitters
at 5 m working width
approx. 200 kg/h gas
Electrical power of the ducts
Circulating air: Pre-drying approx. 62 kW
Gelling and. vulcanising channel
approx.185 kW
Cooling fields approx. 40 kW
Heated: Direct gas
Gas type: Propane or butane with. 500 mm WS pressure in the distribution pipe
Installed heat output: 3 Gcal/h
corresponds to approx. 300 kg gas/h
