Water-steam generation plant

A complete water-steam generation plant, including all required upstream and downstream equipment and lines: water treatment (softening, osmosis system), tank system, feed water tank, high and low pressure distribution systems, exhaust gas heat exchanger.

---

System for water vapour generation with

2 x 1,304 kW 16 bar

The system for generating water vapour consists of the following components:

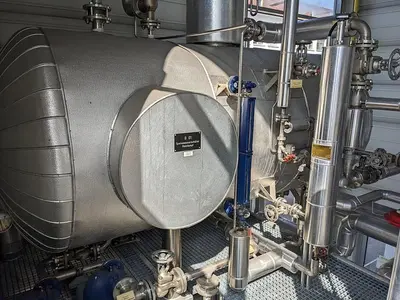

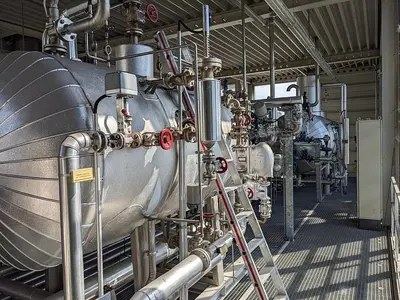

- Steam boiler 01
- Steam boiler 02

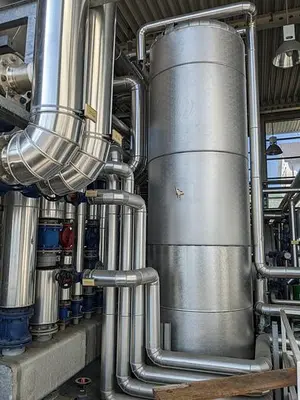

- Feed water tank Pure steam
- Feed water tank-steam boiler
- Pure steam generator

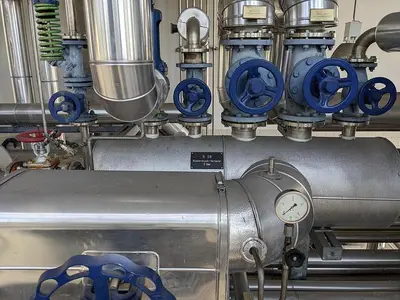

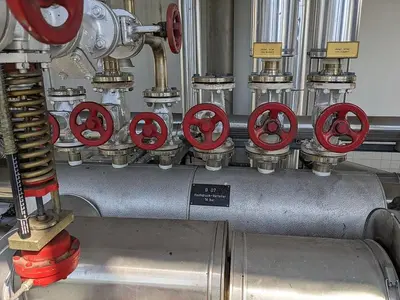

- High pressure distributor
- Low pressure distributor

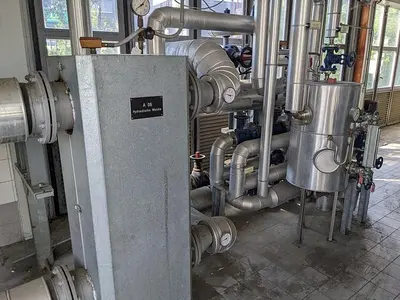

- Hydraulic separator

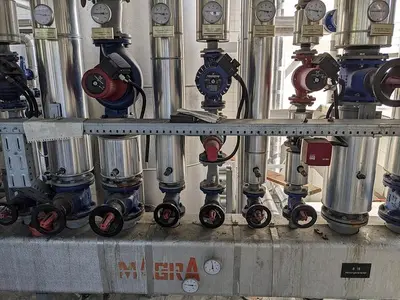

- Heating manifold
- Flue gas heat exchanger
- Boiler 01
- Boiler 02

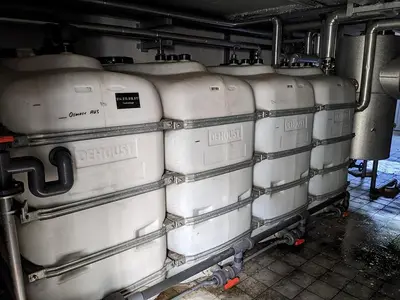

- Tank system
- Reverse osmosis A04
- Softening system

Description of individual components:

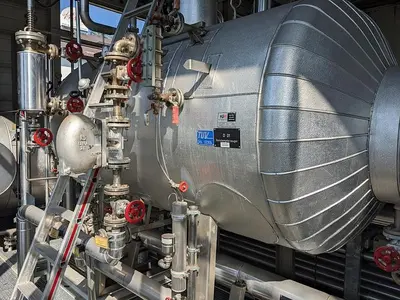

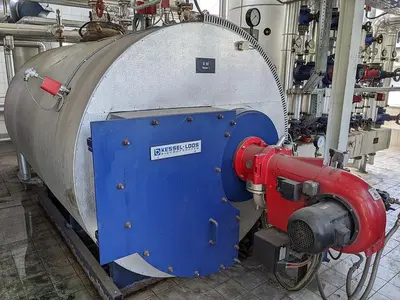

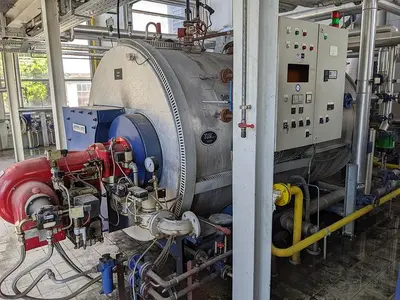

**Steam boiler 01**:
- Type: UP 2000
- Year of construction: 1993
- max. operating pressure: 16 bar
- Effective output: 1304 kW
- Manufacturer: Loos

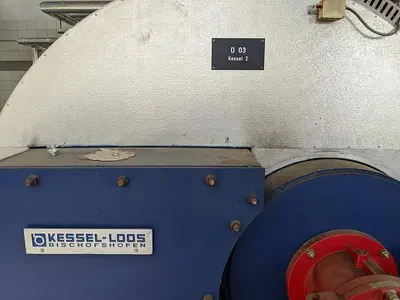

**Steam boiler 02**:
- Type: UP 2000
- Year of construction: 1993
- max. operating pressure: 16 bar
- Effective output: 1304 kW
- Manufacturer: Loos

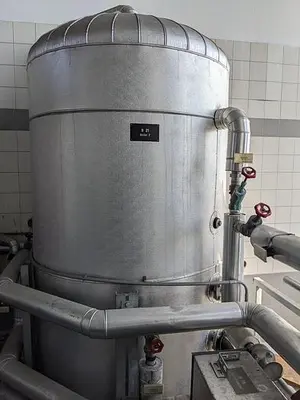

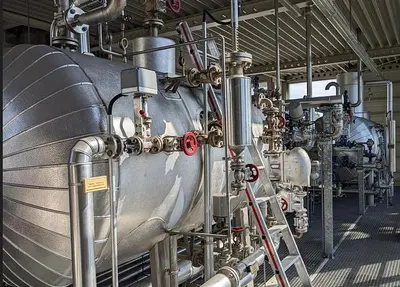

**Pure steam feed water tank**:
- Type: SW/NDR
- Year of construction: 1994
- Max. Pressure: 1 bar
- Temperature: 120C
- Capacity: 3000l
- Manufacturer: Eichler

**Feed water tank steam boiler**:
- Type: SW/NDR
- Year of construction: 1994
- Max. Pressure: 1 bar
- Temperature: 120C
- Capacity: 8000l
- Manufacturer: Eichler

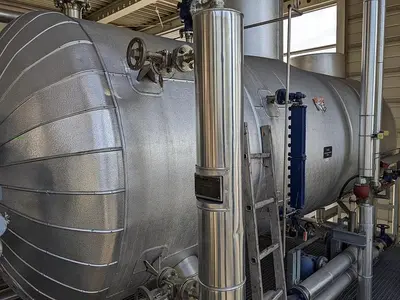

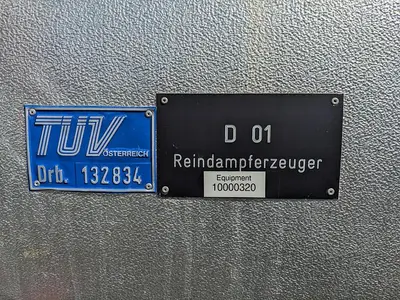

**Pure vapour generator**:
- Type: U_-B 1317
- Year of construction: 1994
- Manufacturer: Ortner
- Tank:
 - Capacity: 2370l
 - Temperature: 220C
 - max. pressure: 14 bar
- Bundle:
 - Capacity: 180 litres
 - Temperature 220C
 - Max. Pressure: 18 bar

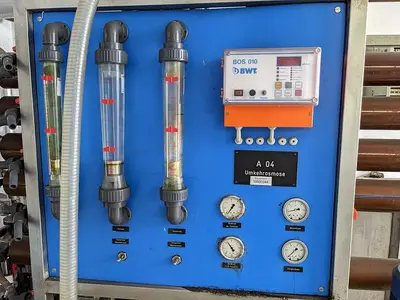

**Reverse osmosis A04**:
- Type: BRO-2500-N
- Year of construction: 1994
- Remark: 4-storage tank B14-B17
- Manufacturer: BWT AG

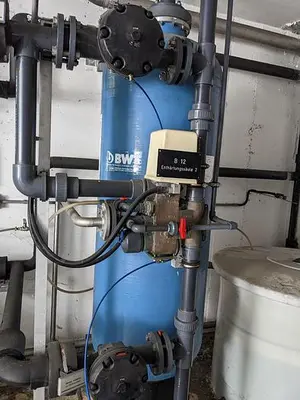

**Softener**:
- Type: BA-300-MD/MHV
- Year of construction: 1994
- Composition: two softening columns (B10 and B12); two salt tanks (B11 and B13)
- Manufacturer: BWT AG
