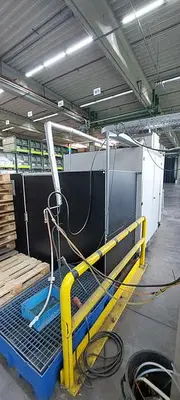

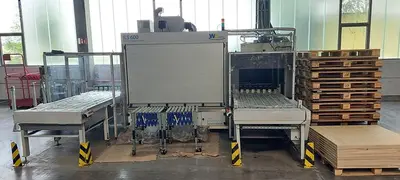

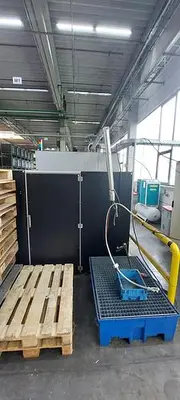

2019 WK Systemtechnik ILS 600 – HTL –
Ionline Lubrication System
Dickschickt preservation system. The oil is applied via nozzles
The spray system is a minimum quantity spray system for high-precision dosing of preservative oil. With the spray system you can be coated or oiled reproducibly.
By spraying using two-substance nozzles, the finest layer thicknesses can be applied without contact and a wide viscosity range can be covered.
The forming medium is in a closed circuit; the excess pressure created by the spray air in the chamber is sucked off at the inlet and outlet using a vacuum lock, so there is no environmental pollution.
General data
Dimensions (WxHxD)
without conveyor units
2486mmx2080mmx2722mm
Dimensions with open doors 3265mmx3510mmx2722mm
Weight approx. 2500 KG
Electrical connection
Supply voltage 400 Volt / 50 Hz
Power 15kVA
Fuse protection 35 A
Control voltage 24 V
Air connection
Air connection 1⁄2’ screw connection
Compressed air supply 6 bar
Air quality Oil and water-free
Preservative oil properties
Flash point
Liquid media with a flash point
flash point >56°C
use
Viscosity at 20°C 1 - 200mm2/s (cst)
Density >0.7 Kg/dm3
Consumption data
Preservative medium Spray air Consumption @
0.5 bar
Spray chamber Max. 2.5 l/h 600 l/min
Spray system components
Normal accessories are:
Operating instructions ILS 600
Circuit diagram ILS 600
Media circuit plan ILS 600
Data USB stick

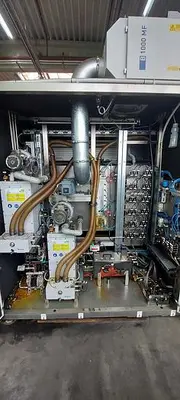

Components of the ILS 600: 15
Tight stainless steel collecting tray with stainless steel welded frame
Conservation range
Inlet lock
Spray chamber
Outlet lock
Intermediate container
Analogue level measurement
Compressed air diaphragm pump for filling
Suction lance with level switch
Separators 1 & 2
4 x Activated Carbon Filters
4 x Aerosolfilter
Koaleszer-Filter cassette
Level sensors min / max.

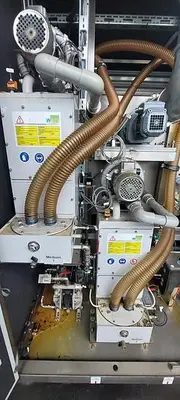

Side channel blower K04 with silencer
Spray chamber
Four-sided nozzle units with external preservation nozzles
Nozzle shutdown
Thermally monitored media supply
Sensor-monitored conveyor belt for chamber flow
Compressed air diaphragm pump for filling the oil containers

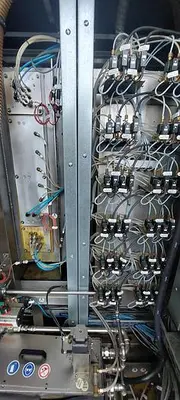

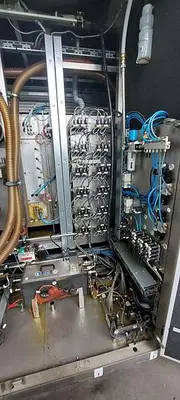

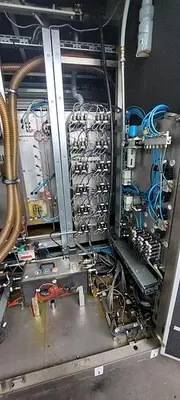

Pneumatic unit
Maintenance device combination
Mounting plate oil medium 1 & 2
preparation pump
Geared stepper motor
Flow transmitter
High pressure filter
Leak sensor

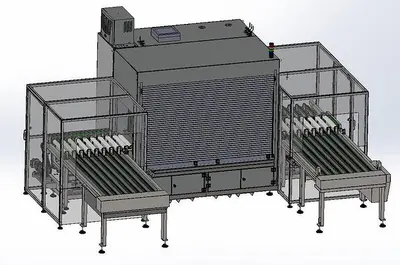

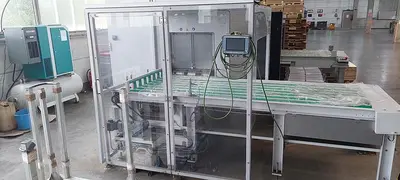

Feed conveyor belt with motor and sensor monitoring
Inlet side cross conveyor belt with lifting unit
Outlet-side cross conveyor belt with lifting unit
Removal conveyor belt with motor, sensor monitoring and oil collecting tray
