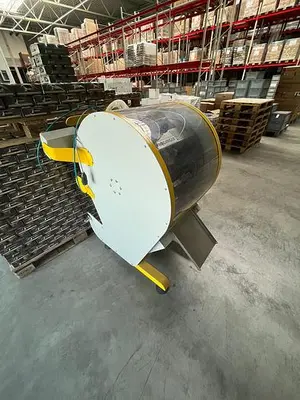

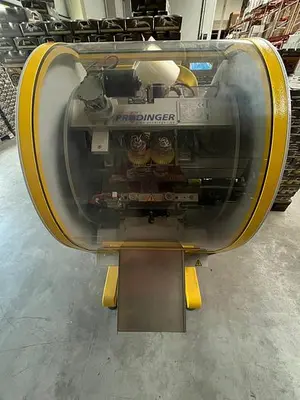

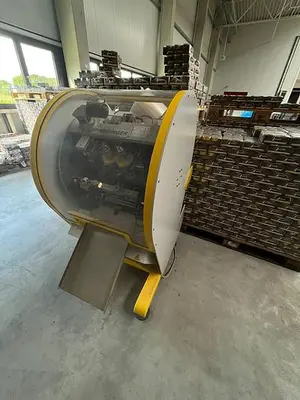

2017 TLM Prime 400

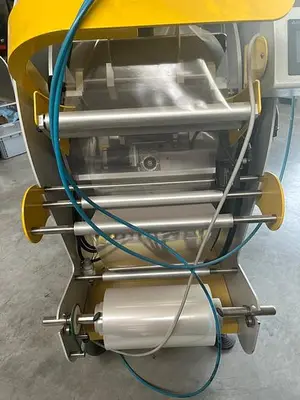

Welding machines flow packer Product filling from above, stable steel construction[1] powder-coated; guides and components thatcome into contact with the product made ofstainless steel; color RAL 7035 light gray and RAL1021 rapeseed yellow; stable, transparent protective cover made ofpolycarbonate Safety cover overwelding system and control panel; manual filling intopre-tensioned bags on the forming shoulder; automaticoperation via photocell control; motor drivevia stepper motors (2 pieces); adjustable (standard)or fixed shaping shoulder adapted to the product;
Product is pulled and welded via a roller system (take-off roller/welding roller); adjustableheadroom height; Product infeed belt/ welding system adjustable at an angle of 45° - 80°; max. product thickness100mm; Latest Mitsubishi system for optimizing the rolling movement of the axles; control panel typeMitsubishi with program memory for approx. 50 different programs; car diagnostic system;Piece counter; Photocell for print mark control;frequency-controlledconveyor belt speed;

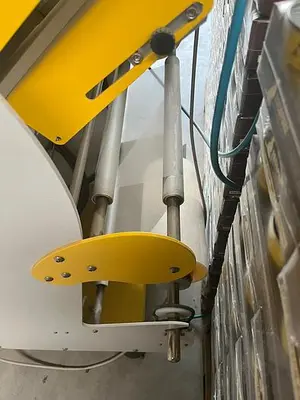

Machine with base frame for holding the film roll; anti-vibration feet; including discharge conveyor belt; output up to 20 pieces/min in autocycle; CE-compliant production of the machine.
Technical data:
Welding width 200mm;max. product size LxH=300x100mm; Electrical connection380V/50Hz Dimensions: 650x800x1400mm, weight 250kgSerial number: 1063/2016
