USED 2017 ANDRITZ KMPT GMBH DCF312 / 16 / 4

2017 Andritz KMPT GmbH DCF312 / 16 / 4
Andritz - Dynamic membrane filtration
Dynamic Crossflow Filter cpl. with control unit
Model: DCF312 / 16 / 4
Manufacturer: Andritz KMPT GmbH
Year of manufacture: 2017
Condition: As good as new

Description:
Crossflow processes are used to separate substances that are difficult to filter. In this process, rotating ceramic discs (alternatively: polymer) generate a turbulent differential velocity. With dynamic crossflow filtration, a high degree of separation can be realised, especially with a concentration of the retentate of up to 700 mPas.

Ceramic filter discs are available on the market in a wide range of pore sizes from 7 nm to 2 μm.
Areas of application:
- Colour extraction (e.g. pigments)
- Separation of biomass - e.g. in the extraction of enzymes, proteins, proteins, polysaccharides, antibiotics
- Recovery of valuable substances - e.g. hydroxides - coloids
- Concentration of suspensions - e.g. juices, flavourings
- Liquid processing - recycling of high-quality liquids
- Other liquids
Technical data:

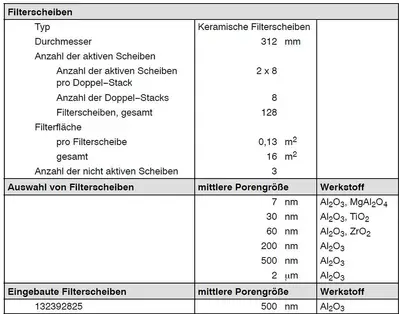

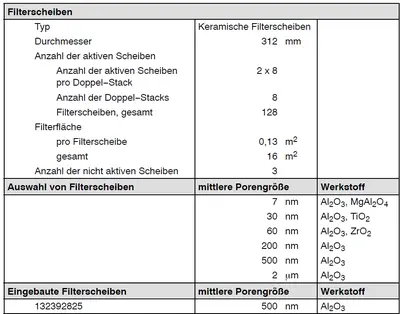

Filtration area: 16 m2 Number of shafts: 4 Membrane: Ceramic / Polymer Number of membranes: 128 Filtration area per membrane: 0.13 m2 Design pressure: 0 - 6 bar g Max. permissible temperature: 0 - 90° C Design basis: Pressure Equipment Directive 2014/68/EU, AD 2000, Module A2, Cat. II

Internal dimensions of the container: D= 765 mm Useful volume of the container: approx. 245 litres Cylindrical height of the container: approx. 679 mm Wall thickness of the container: 8 mm Operating modes: Continuous or batch operation Total weight with control unit: 3,500 kg Dimensions: L=2,700 mm; W=1,400 mm; H=2,500 mm Required room height: min. 3,500 mm Operating speed: 300 - 400 1/min Power: 45 KW Connected voltage: 400 V Frequency: 50 Hz Connecting plug: CEE plug 5 plig, 125 A, TN-S mains

Scope of delivery:

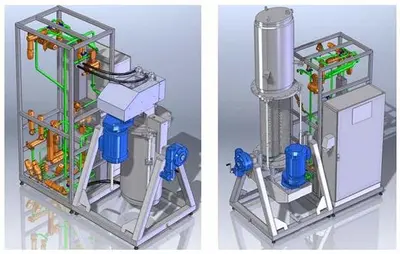

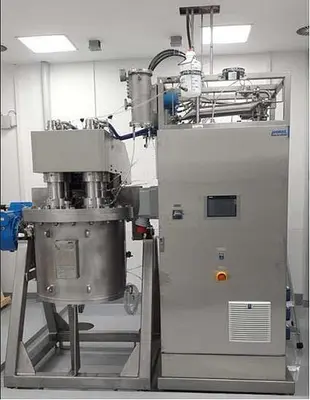

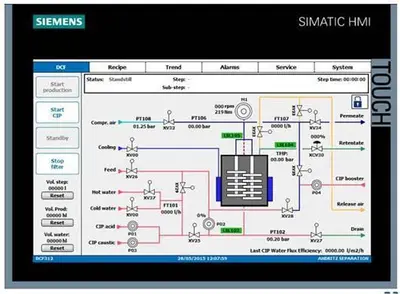

Complete system, consisting of 1x crossflow filter 1x base frame 1x control unit / control panel / frequency converter Touch panel for operating the complete unit.
