Overview
Type:
Lapping / Polishing / Grinding
Manufacturer:
KARL SCHNELL
Model:
GRINDING LINE FOR FROZEN SYNTHESIS
Stock #:
168
Description

Grinding line for frozen synthesis , Karl Schnell
Packed , stored in Europe, ready to ship and install
Featured for US

CAPACITY

Capacity up to 15 000 kg/h for the fresh process
Capacity up to 8 000 kg/h for the frozen process
Design for three shifts-operations
6 working days/week with 16 working hours/day

RAW MATERIEL
All raw materials temperature between -18°C and +15°C:
- Pork and chicken liver
- Pork pulmon
- Atum viscera
- MDM

Max 19 000 cp @ 0°C
Content :
Pos.015 KS Lifting device DM-1500 type 632
Maximum load capacity: 1500Kg
Designed for frozen raw material pallets
Fitted with a safety fence
Safety fence secured by 2 safety light curtains

Pos.020 KS Breaker PB1 type 492
Single shaft breaker for frozen raw materials pallets
Maximum height for frozen pallet: 1450mm

Pos.085 KS Lifting device DM-800 type 632
Maximum load capacity: 800Kg
Designed for Jumbo/pallbox and Bag-in-Box
Fitted with a safety fence
Safety fence secured by a safety light curtain
Frontal load of the boxes

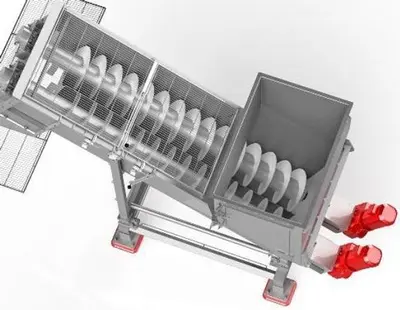

Pos.120 KS Double screw 500 - 4500mm type 643
Diameter of each screw 500mm
Length of the screws: 4500mm
Without double jacket for hot water

Pos.121 KS Belt conveyor 800 – 5000mm type 635
Fitted with metal detector Mesutronic and ejection flap

Metal detector Mesutronic für belt conveyor
• MESUTRONIC metal detector ‚METRON 07 Ci‘ with new ‘metall-free-zone-technology’
Pos.150 KS Feed hopper 900 P type 674
Feeding and precutting auger at the bottom of the hopper driven by a 30kW motor (SPF supplies the frequency drive in the MCC)
Design allowing an easy feeding screw change
Product level measuring by laser sensor
Fitted with a safety fence with sliding door on the lifter opposite side
Including steam injectors at the outlet for a better pumpability of frozen raw ma-terials
Fitted with feeding screw and Servomotor adapted to process fresh and frozen raw materials

Pos.210 KS Emulsifier FL248 DK 250kW Type 186
Directly flanged to the feed hopper Pos.150
Motor 250 kW

Pos.305 Bornemann product pump SLH-5G-3000
Supplied whithout frequency converter
Fitted with single mechanical seals

Pos.700 Cleaning platform for the breaker PB1 and double screw
Pos.701 Cleaning platform for the belt conveyor Pos.040
Pos.702 Cleaning platform for the hopper Pos.150
