USED 2018 ELHA DEPO XPERT K 1212

ELHA machining center

- The operating hours amount to 30,350 hours.
Regarding the operating hours, it must be mentioned that due to the discontinuation of the last article run on the centre, it has not been used for production since the beginning of 2021.

Due to a transport system that is currently still connected to the machining centre in terms of control technology, the machining centre could not be disconnected from the power supply, so it had to remain switched on and the operating hours increased despite the fact that production was no longer taking place.

The effective operating hours of the machining centre during which production took place on the centre are therefore just under 11,500 to 12,000 hours.

Manufacturer: ELHA
Designation: Horizontal BAZ
Machine type: DEPO XPERT K 1212
Year of construction: 2018
Machine hours: 27405.1 h // (of which 12892.8 h in use)
Mass of the system: 44500 kg
Mass of the largest unit
for transportation: 32000 kg
Power supply: V AC 400 V DC 24
Connected load: 135 kVA
Fuse protection: 250 A
Travel distances (X-Y-Z): 500-1200-1000 mm
Max. travel speeds (X-Y-Z): 20-30-30 m/min
Max. acceleration (X-Y-Z): 2.5-3-3 m/s²
Feed force (X-Y-Z): 25000-20000-20000 N
Weight compensation for
support of the Y-axis: 2x32 liters
Measuring systems: direct & absolute
CNC control: MTX Indra Drive (Bosch)
Remote diagnosis: Host for MMC
Safety circuit: SafeLogic

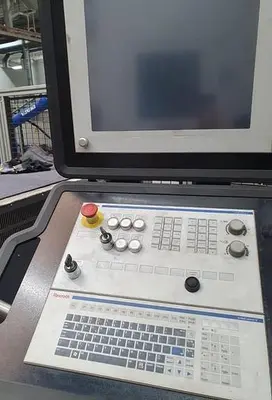

Machine panel: MBT
Manual control units: HBM-111711
Central lubrication table: 1.5 liters
Central lubrication machine: 6 liters

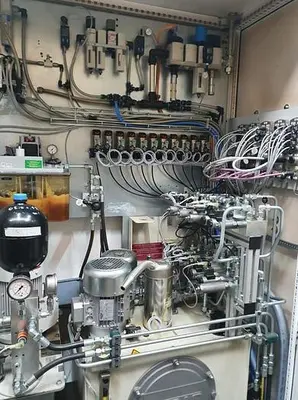

Hydraulic table: 15 liters
Hydraulic machine: 1000 liters
Cooling: 75 liters
