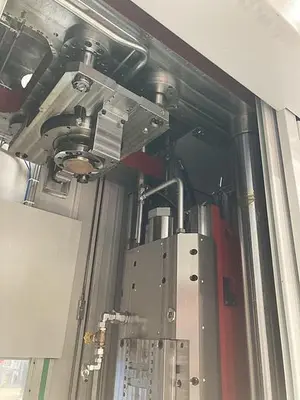

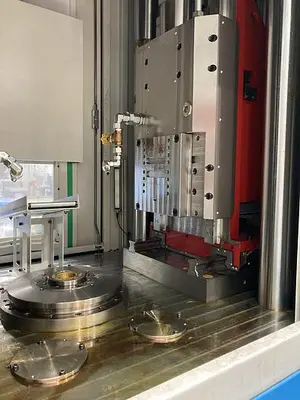

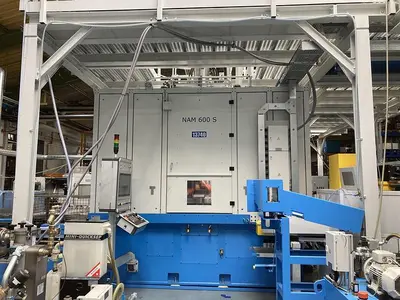

2-roll flow-forming line NAM600S
General condition: practically new / already out of service
Scraper device (around the tailstock)
Working stroke max. 500 mm
Scraper force, infinitely variable from 50 - 200 kN
Hydrau I i k / lubrication / cooling system
Drive power Hydraulics approx. 75 kW
Olin content Hydraulic tank approx. 1,500 I
Equipment/Com ponents Hyd raulics Make Parker Hannifin
Drive power oil lubrication approx. 4.4 kW
Olin content Lubricant tank approx. 600 I
Equipment/Com ponents Lubricant system Make Parker Hannifin
Connected load Cooling system approx. 2.2kW
lnhalt Coolant tank approx. 650 I
Powerful coolant supply, adjustable 0 - 200 l/min.
Cooling water requirement hydraulics + lubrication approx. 2.500 /h
Cooling water flow temperature max. 25'C min.
Cooling water differential pressure 2bar
Cooling water system jerk max. 5 bar
Compressed air system pressure Max 6 bar
CNC control Make Siemens Sinumerik 840 D SL
Machine weight approx. 15.500 kg
Electrical data
Connected load approx. 205 kVA
Supply voltage 3-400 V, 50 Hz
Fuse protection 3x355A
Painting in WF standard
Main color (machine body) Ultramarine blue (RAL 5002)
Secondary color 1 (claddings) Silk gray (RAL 7044)
Secondary color 2 (moving parts) Zinc yellow (RAL 1018)
Ambient temperature during operation 10'c - 40' c
Humidity max. 80
