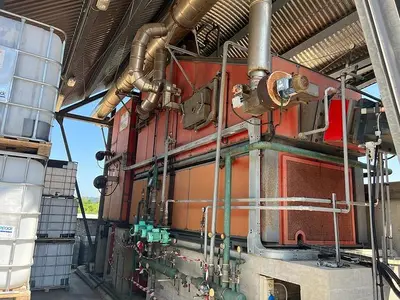

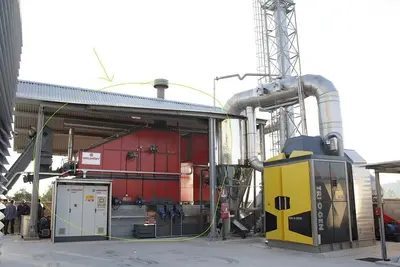

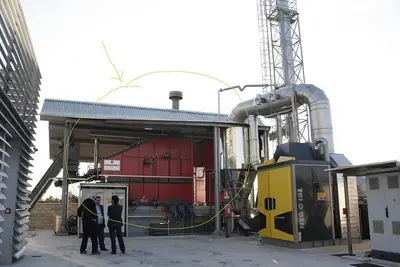

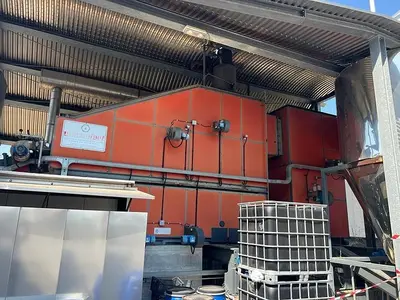

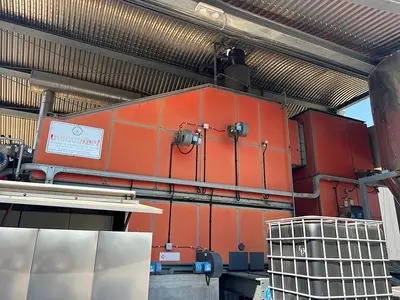

mobile grate boiler for wood chips, having the following characteristics
used very little (max 4000 hours) and are in excellent condition.
Combustion chamber with a power output of 900,000 Kcal/h with MOBILE GRID technology complete with refractory-lined adiabatic post-combustion chamber, suitable for connection to a drying system for Bio mass, having the following design characteristics: 3,400 Kg/h of flue gas at a temperature of 850-950°C .
The combustion chamber is designed and built to use solid wood fuels and alternatively also liquid and gaseous fuels. The self-supporting structure with horizontal development built of special steel with a thickness of 10÷12 mm suitable to withstand thermal stresses with combustion chamber with a large section completely dry with several smoke turns for optimal decantation of the dust contained in the smoke, with combustion chamber temperatures varying from 800÷1,000°C equipped with doors for periodic cleaning, post-combustion chamber with high-speed turbulent gas inlet due to the special system of secondary combustion air injection.
Refractory lining with high alumina content (minimum 60%) made of refractory bricks properly fixed with special anchors and refractory castings with high insulation density. Insulating cladding of high-density anti-radiant material with steel infill panels painted with special paints.
Dimensions:
Length 3,500 mm
Width 1,700 mm
Height 2,800 mm
Technical characteristics:
Flue gas flow rate 3,820 m3/h
Combustion chamber volume: 3.90 m3
Post-combustion chamber volume 1.00 m3
Moving grate surface 1.36 m2
Weight: ~16,700 kg
150 kWe and 900 kWt
