Briquetting machine for the production of charcoal briquettes including a hot air generator and conveyor
- How much material per hr is briquetted? 2,5-4t per h

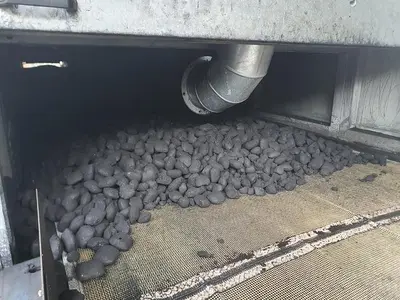

- What do the briquettes look like?
30x40 mm,
- Are there any technical data (list of components, layout or similar?)
Briquette plant:
- Feeding hopper
- Material loading conveyor
- Paddle mixer

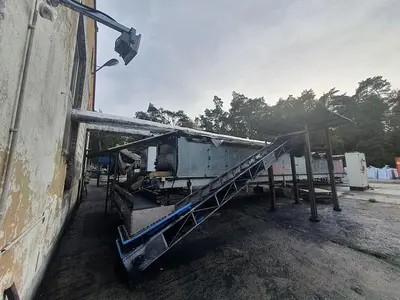

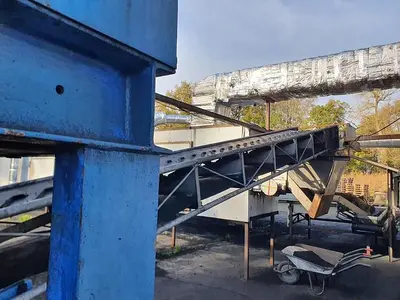

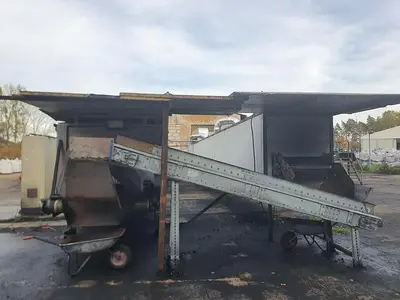

- Conveyor belt to press

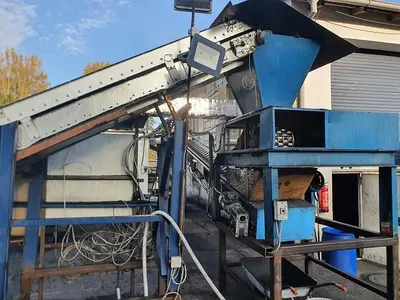

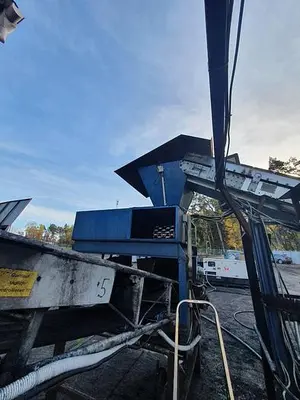

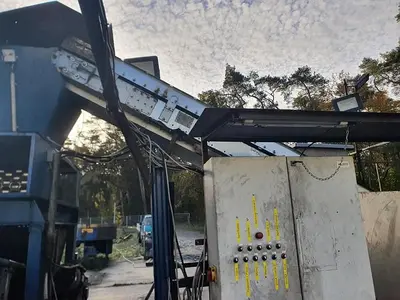

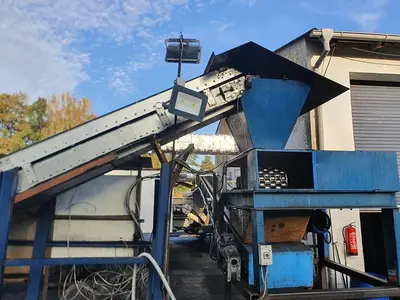

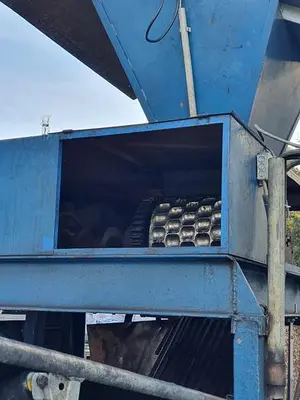

- Press incl. hopper

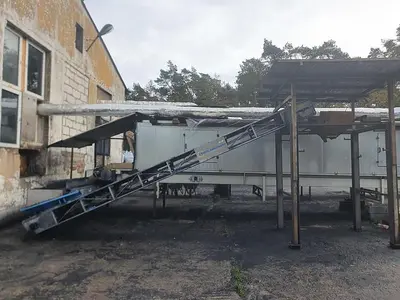

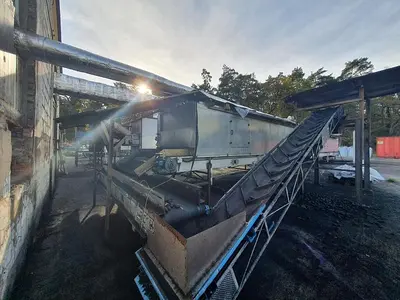

- Conveyor belt to drying section

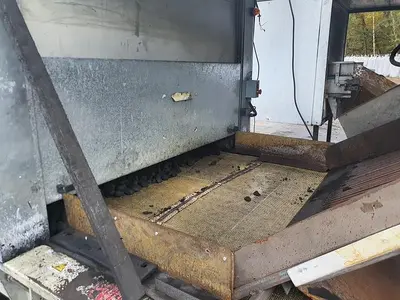

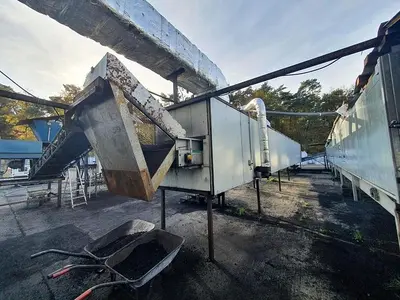

- Drying line consisting of 3 cooling belts with stainless steel belt, 2 belts (LxW) á 7m x 1m, 1 belt 3,6m x 1m incl. housing
- Conveyor belt to the second drying line (second drying line is not part of the offer)

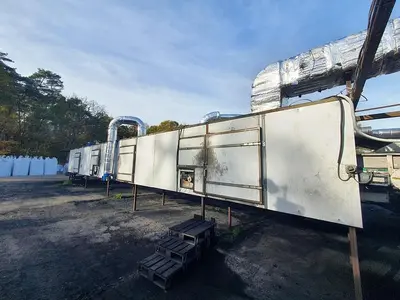

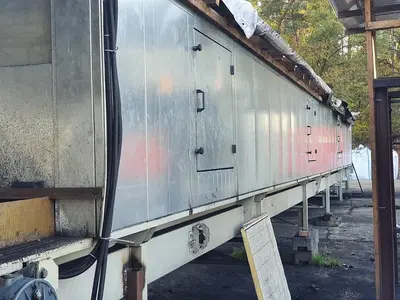

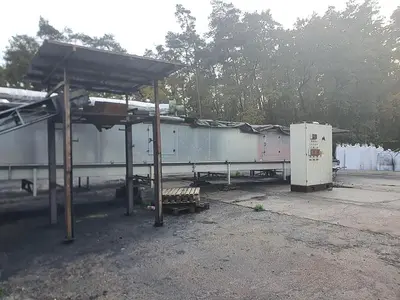

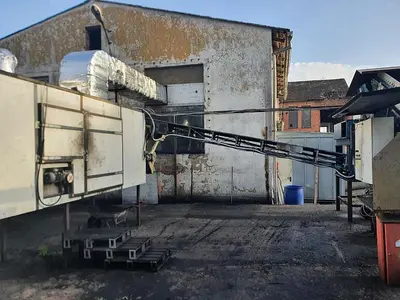

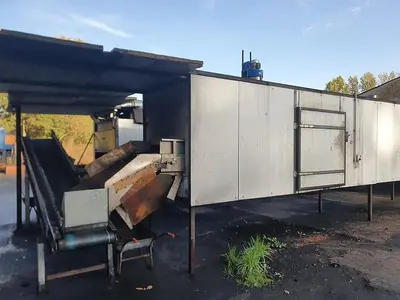

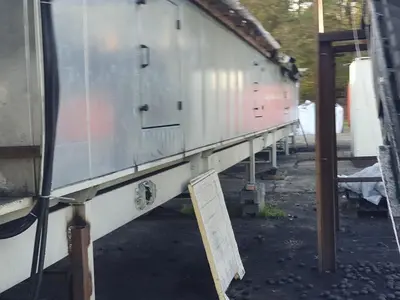

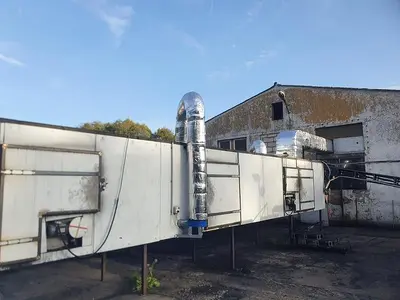

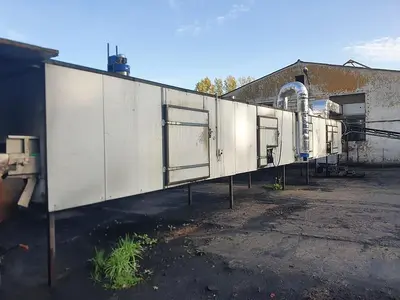

- Drying line consisting of one continuous oven, 17.5m x 2.2m x 2.3m, consisting of two parts á 8.5m incl. control cabinet, transport by Keflar belt, width approx. 1.80m
- Sheet metal chute to conveyor belt
- Conveyor belt for removal of the briquettes
- Conveyor belt for filling the BigBags
- rack to receive BigBag

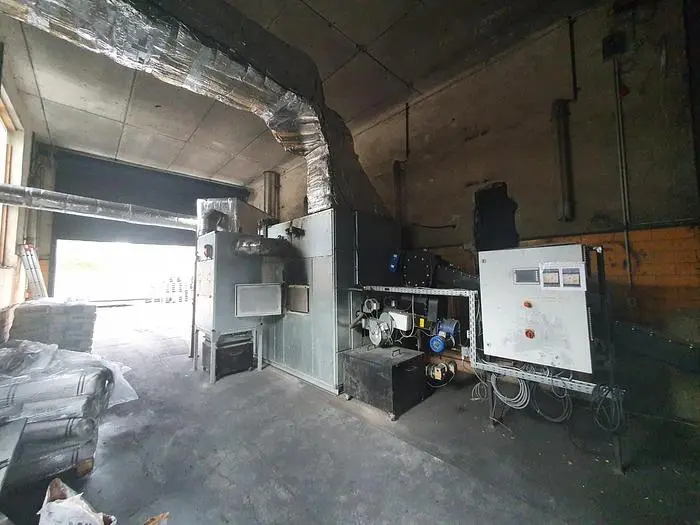

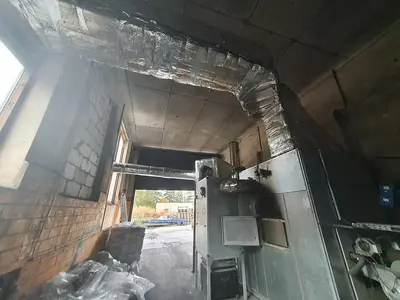

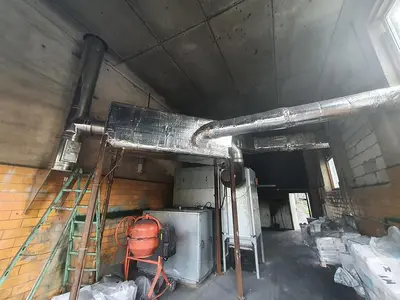

Warm air generator:
- nordluft warm air heater NL-BM 200
- year of construction 2014
- Nominal heat output 180 kW
- warm air volume flow 8.000 m³/h
- Wood chip bunker approx. 10 m³
- Discharge in bunker
- Screw conveyor to the furnace length approx. 3m
- Feeding

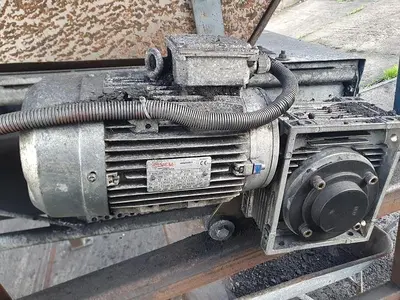

- motor 3x400 / 4,0
- Ash screw 3x400 / 4,0
- Air heat exchanger incl. blower

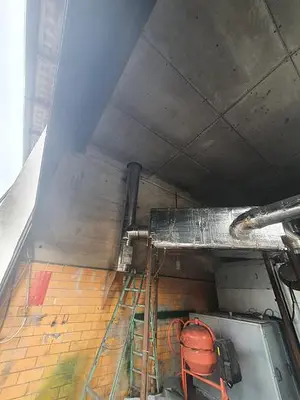

- Piping incl. insulation approx. 30 m

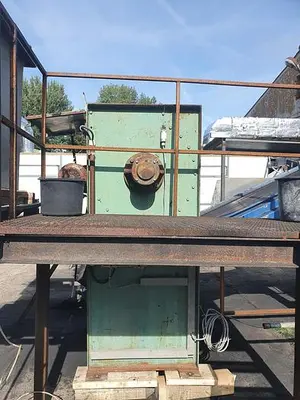

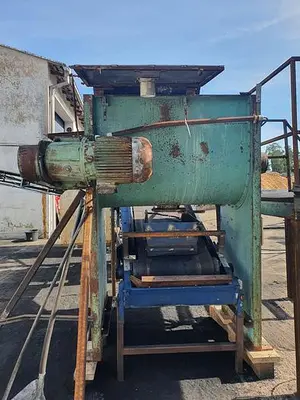

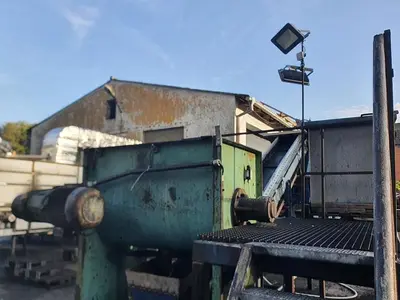

Mixer: Belt helix mixer 600l, year of construction 1995, manufacturer Eberhard Bauer
Briquette press incl. conveyor belts: manufacturer unknown, year of construction 2020
Cooling belts (stainless steel): Year of construction unknown, manufacturer NIKO
Continuous furnace incl. control cabinet: manufacturer AIGLE Machine srl, year of construction unknown
Hot air generator: NL-BM 200, year of construction 2014
