Overview
Type:
CNC Lathes
Manufacturer:
PINACHO
Model:
SMART TURN 6/180
Year:
2006
Description

Manufacturer: Pinacho
Model: Smart Turn 6/180
Power: 7.5 kW
Frequency: 50 Hz

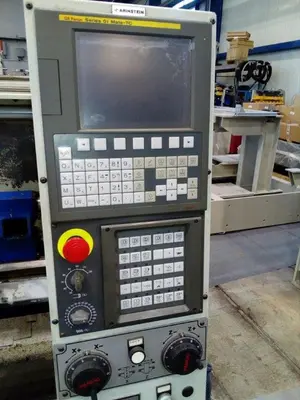

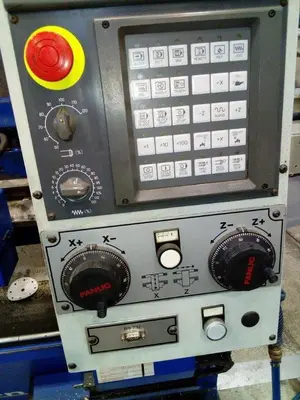

Control: FANUC

CAPACITY
• Center height: 180 mm
• Center width: 750–1000 mm
• Permissible diameter over bed: 360 mm
• Permissible diameter over longitudinal slide: 335 mm
• Permissible diameter over cross slide: 198 mm
• Bed width: 250 mm

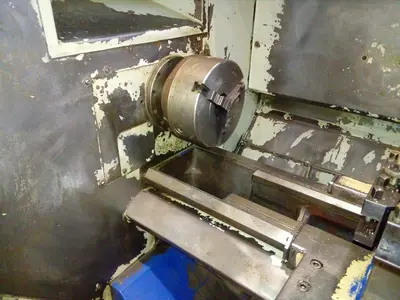

SPINDLE
• Spindle bore: 42 mm
• Spindle nose: CAMLOCK no. 5 (DIN 55027 no. 5)
• Spindle taper: Morse taper no. 4
• Number of spindle speeds: 1
• Cutting speed (constant surface speed): 0–4000 U/min
FEED
• Working feed Z,X (mm/min): 0–10000 mm/min
• Rapid traverse Z,X (m/min): 10 m/min

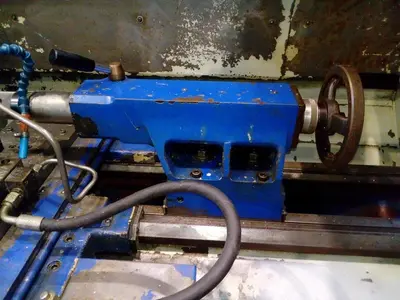

TAILSTOCK
• Tailstock quill diameter: 58 mm
• Tailstock quill travel: 200 mm
• Tailstock taper: Morse taper no. 3
MOTORS
• Main motor power: 5.5 kW
• Feed force longitudinal (N): 4500 N
• Feed force cross (N): 3500 N
• Coolant pump motor power: 0.57 kW
STEADY RESTS
• Fixed steady rest opening min/max: 10–115 mm
• Follow rest opening min/max: 10–70 mm
