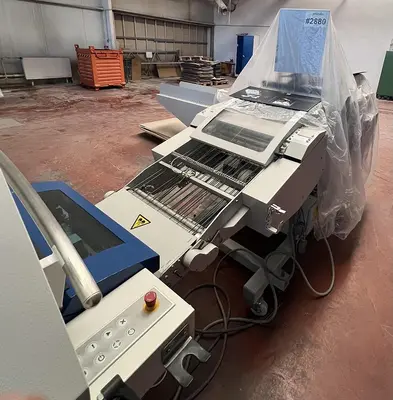

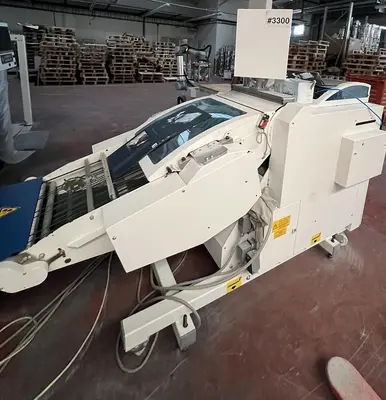

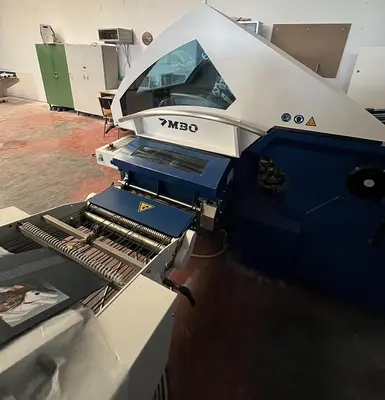

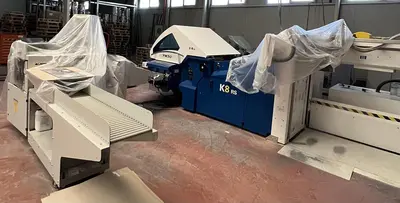

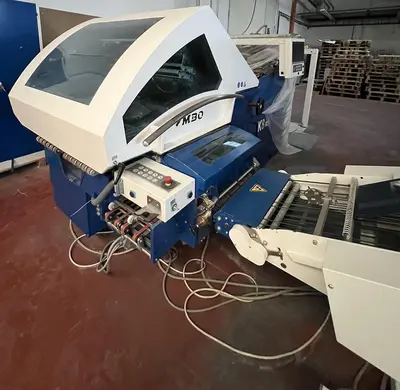

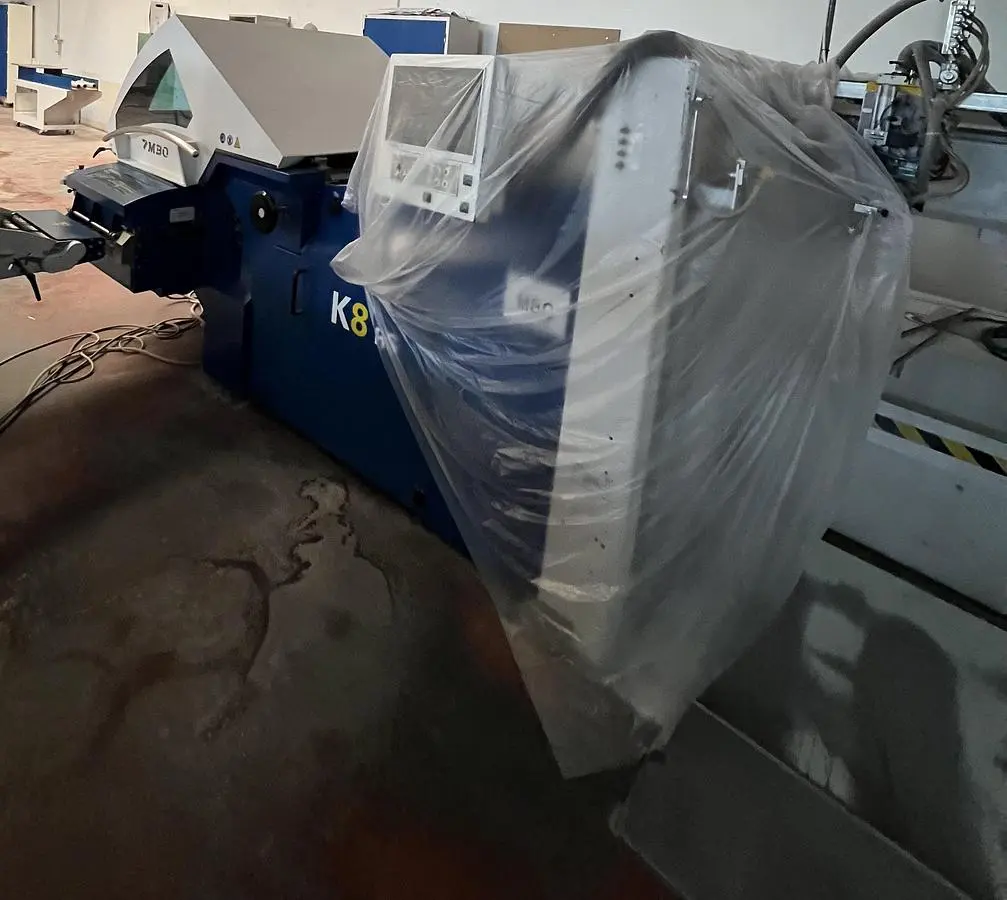

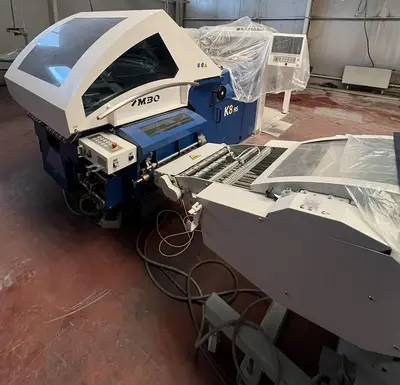

USED 2018 MBO K8RS SKTL/6

Folding line
Type: K8RS SKTL/6
Manufacturer: MBO
Year: 2018

Configuration
6 pockets + 1 knife + 1 side pocket + 1 knife
Knife fold Vacuknife, pneumatic carbon knife
(32-page folding)
Automatic pocket adjustment, automatic pocket stop adjustment

Paper format
Max. paper format (width × length): 78 × 120 cm
Min. paper format (width × length): 17 × 25 cm
Minimum fold length: 6 cm

Folding options
“Altar” folding possible

Performance
Maximum speed: 275 m/min
Paper weight: 40 – 200 g/m²

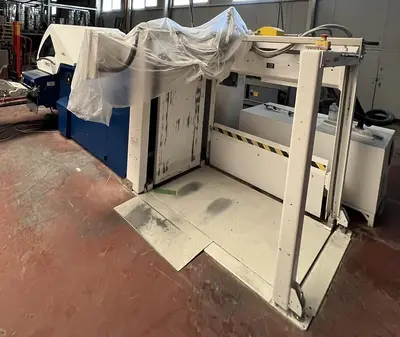

Double-belt feeder
Pallet feeder height: 130 cm
Mechanical format adjustment

Feeder system
Feeder equipped with a laser beam
Double feed wheel
Extended feed table
Feeder head adjustment: mechanical
Double-sheet detection: ultrasonic
Double-sheet monitoring: mechanical
Possibility to reject defective folded sheets

Control & monitoring
Pocket sensors
Sheet length monitoring
Cross folds: complete opening mechanism

Drive system
Maintenance-free main cylinder drive: maintenance-free belt, no lubrication required

Touchscreen Display
Touch-screen display: complete machine setup (job storage, job evaluation, full fold catalogue during setup, Czech language included)

Paper Transport and Folding Technology

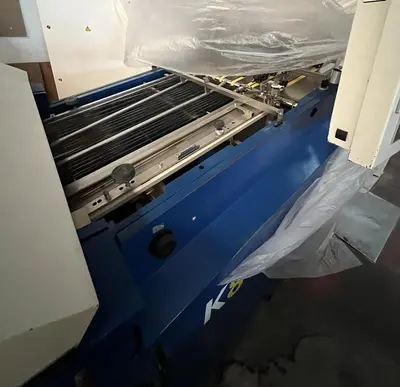

Vacuum belt: vacuum suction belt for paper transport
Special folding rollers: VIRO-TEC
Automatic roller adjustment
Tooling & Control
Segment tool cassette: for perforating and creasing tools
Control and command unit: M1 Control
Remote machine diagnostics
Additional Equipment
Antistatic alignment section
Segments for creasing and perforating
Machine is equipped with an option for rejecting faulty folded sheets
Possible connection to a central air/compressor system

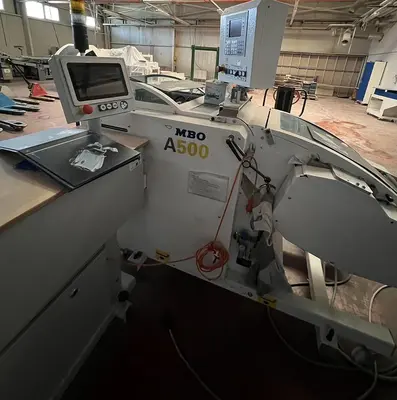

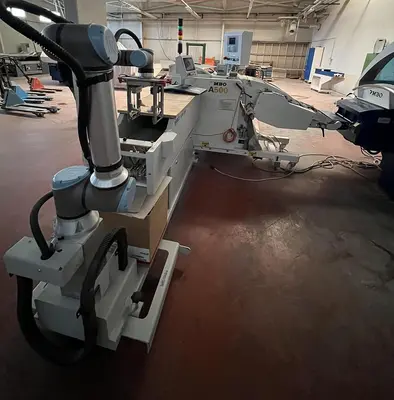

Pile Delivery MBO A500

Mobile delivery into pile without risk of print damage
Capable of working in double or triple production mode
Automatic format adjustment in running direction
Airflow adjustment
Rotating control panel
Automatic rejection of faulty sheets
Device automatically recognizes the delivery side
Pressing of folded sheets
Pressing capacity up to 3.5 t
Piling of pressed sheets
Semi-automatic settings
Counter
Counting by number of pieces
Antistatic device

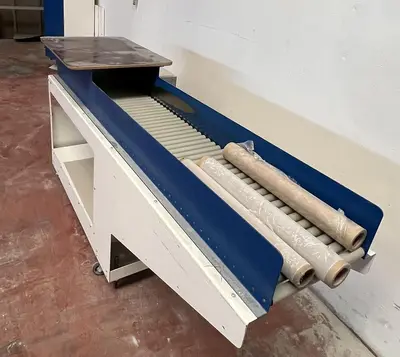

Sheet delivery via transport belt
Delivery of folded sheets horizontally
Option for single-sheet or shingled delivery
Fold length control
Weight control
Interface with the folding machine

Technical Parameters
Maximum format: 510 × 330 mm
Minimum format: 80 × 95 mm
Minimum pile height: 3 mm
Maximum pile height: 160 mm
Output: 900 bundles/hour
Speed: 15 – 205 m/min
Electrical connection: 16 A, 400/230 V, 3.5 kW
Compressed air: 6 bar, 100 l/min

In good condition, fully functional
