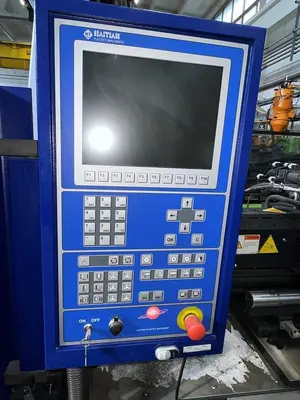

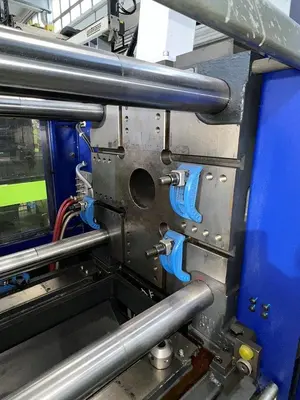

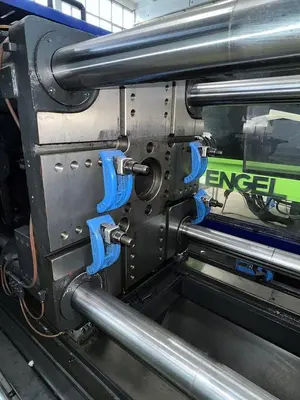

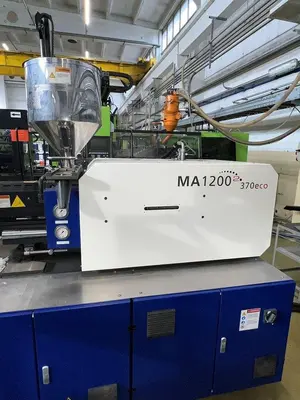

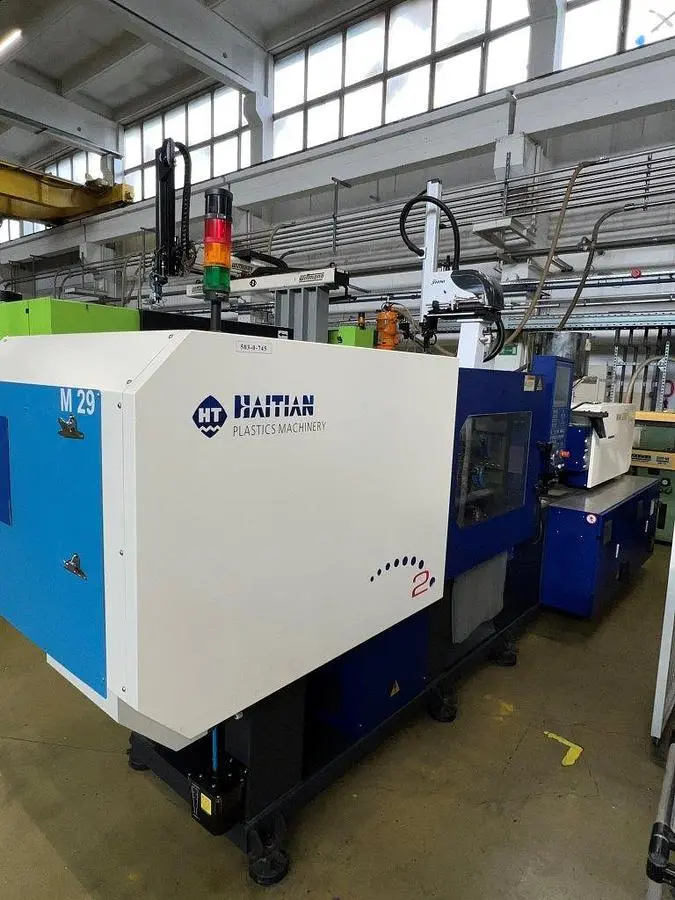

USED 2018 HAITIAN MA1200II/ECO
Overview
Description
Manufacturer: Haitian
Model: MA1200II/eco
Year of Manufacture: 2018
Injection Unit: 370
Screw Model: Ø 40 mm B
Power Supply: AC 400V, 3P/N/PE, 50 Hz
Short Circuit Current Rating: 25 kA
Rated Power: 15 kW
Full Load Current: 25 A
Machine Weight: 4400 kg
Clamping Force: 120 T
Type: Hydraulic machine
Mold Platen Dimensions: 615 × 615 mm
Distance Between Tie Bars (H × V): 410 × 410 mm
Mold Opening Stroke: 360 mm
Max Mold Height: 450 mm
Min Mold Height: 150 mm
Ejector Stroke: 120 mm
Ejector Force: 33 kN
Minimum Mold Dimensions (L × W): 290 × 290 mm
Injection Unit:
