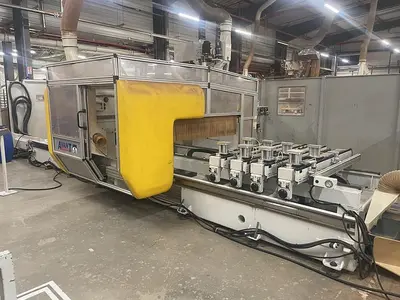

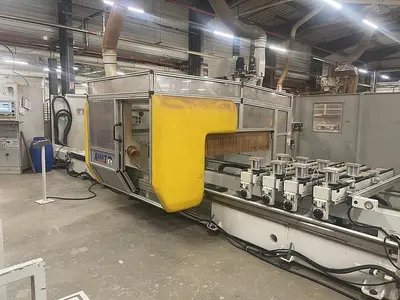

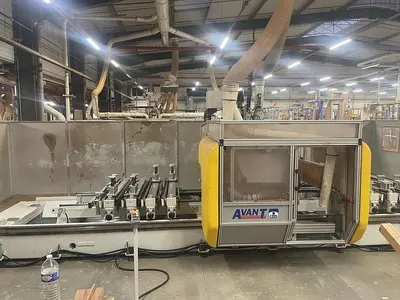

USED 2006 CMS AVANT-1/B-560-TX3/RR
Overview
Manufacturer: CMS
Model: Avant-1/B-560-TX3/RR with a digital table
Year of Manufacture: 2006
Type of Machine: 4-axis CNC machining center with a moving bridge
- Moving bridge design with two racks. Fixed table during machining.
- Welded steel support frame stabilized by double heat treatment
- Mobile bridge supporting a set of two crossed slide carriages for transverse and vertical movement
- Travels:
o X axis: 5600mm
o Y axis: 2050 mm
o Z axis: 300 mm
- Working and positioning speed:
o X axis from 0 to 60 m/min, positioning speed of 60m/min
o Y axis from 0 to 100 m/min, positioning speed of 100m/min
o Z axis from 0 to 30 m/min, positioning speed of 30m/min
- Automatic centralized lubrication
- TX3 vertical head with tool changer mounted on Z-TX3/12/L vertical carriage
o Head power: 15kw at 18000 rpm
o Programmable rotation speed of 1800 to 24000 rpm
o HSK63E cone
- 2 Rotary tool magazines with 16 stations each, i.e. 32 stations
o Max. tool diameter: 250mm
o Max. blade diameter: 400mm
- 8 transverse beams with longitudinal positioning controlled by 8 digital axes
- 8 digitalized positions in the transverse direction to allow the positioning of vices and suction cups
- Chip evacuation belt
- 2 dry vacuum pumps

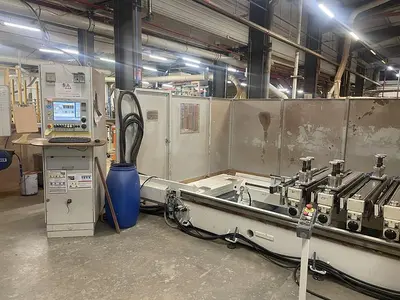

- OSAI S 10/510i numerical control
