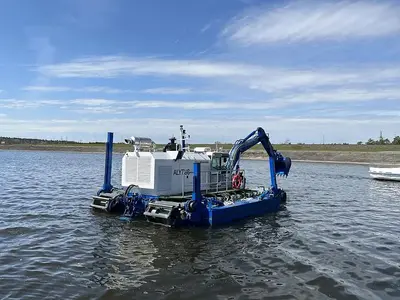

NEW MULTIFUNCTIONAL AMPHIBIOUS DREDGER PRIENAI

Self-propelled Multifunctional Amphibious dredging/digging equipment

Multifunctional Amphibious

PRIENAI is new

SAND PUMS and floating pipelines

These dredging/digging equipment can also be dismantled into separate sections and transportet by land. The equipment can work both on land and in water.

SELF-PROPELLED MULTIFUNCTIONAL AMPHIBIOUS
DREDGING/DIGGING EQUIPMENT
1. Self-propelled Multifunctional Amphibious dredging/digging equipment:
2.1. Self-propelled Multifunctional Amphibious 1
2.2. Self-propelled Multifunctional Amphibious 2
2. Additional equipment for Multifunctional Amphibious dredging/digging equipment:
2.1. Sand pump
2.2. Bucket
2.3. Grab
2.4. The self-floating hose
Equipment Date of Built – 2021/2022
Certificated By RINA.

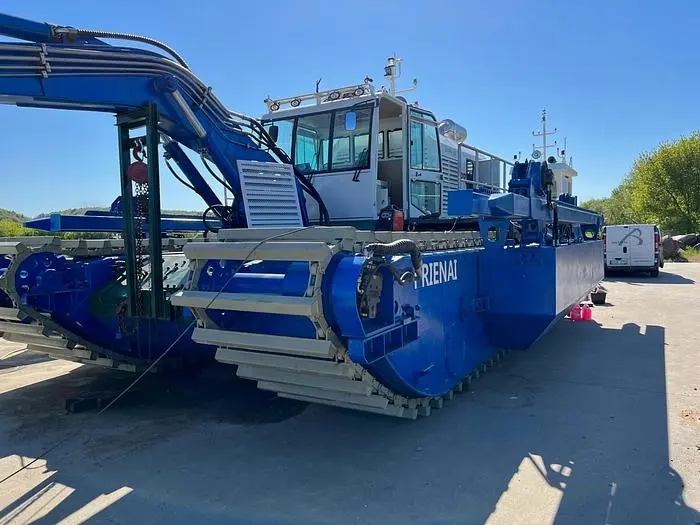

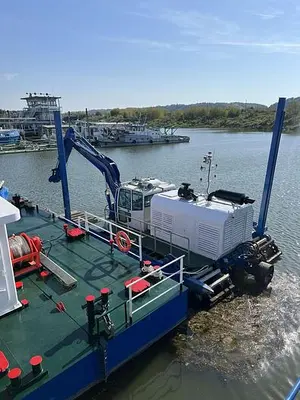

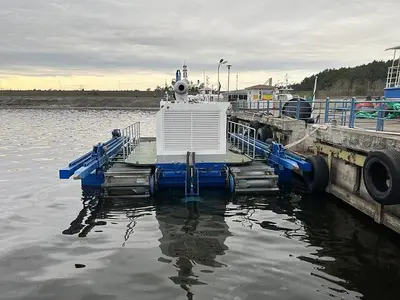

1. SELF-PROPELLED MULTIFUNCTIONAL AMPHIBIOUS DREDGING/DIGGING
EQUIPMENT
Basic descriptions:
Overall Length – 12,9 m.
Moulded Breadth – 6,8 m.
Depth – 1,84 m.
Max. Draught – 1000 mm.
Gross tonnage - 50 (approx.)
Net tonnage – 30 (approx.)
Total power – 269 kW (Cummins NTA855)
Crew – 1 people
The lifting capacity of the equipment – 4 t.
Maximum suction and digging depth – 6 meters from water surface.
Operating conditions (temperature) - air -50 C /+350 C; water 00 C/+250 C.
Operating conditions - Maximum river current speed – 2,0 m/s. Maximum wave height – 0,5 m
Equipment suitable for use on land and in the water.

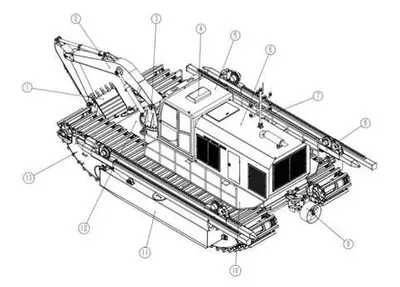

The structure of the amphibious excavator includes:
1) working device,
2) working arm,
3) swivel base,
4) air conditioner, autonomous heating system
5) cabin,

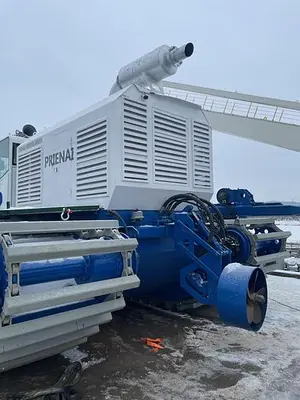

6) engine room,
7) navigation lights,
8) positioning spuds,
9) propeller system,
10) Walking platform,
11) side pontoon,
12) middle pontoon,
13) crawler pontoon, etc.

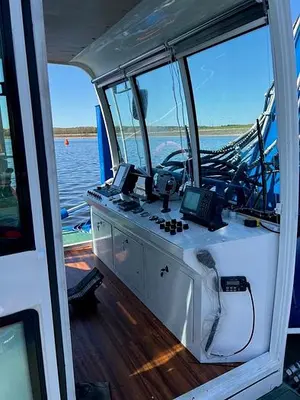

Cabin equipment:
1) Navigation system,
2) Echo sounder,
3) Radio station,
4) Wind direction and precipitation sensor,
5) Fire detection system,
6) multifunctional control system,
7) Transparent blinds, etc.

Built according to European Union standards to operate in inland waters. The hydraulic system is installed
with the highest quality hydraulic hoses. The hull and boom of the equipment are reinforced and meet quality
standards.
Builder's warranty 1 Year.

Documentation is added: technical project and specifications; user/operation manual; equipment instruction
(engines, navigation, hydraulic system and etc.); spare parts catalogs and etc.

2. ADDITIONAL EQUIPMENT FOR SELF-PROPELLED MULTIFUNCTIONAL
AMPHIBIOUS DREDGING/DIGGING EQUIPMENT
All, below listed equipment, can be used by both of dredging/digging united.
0.8 m3 digging bucket ×1 piece
0.8 m3 stone removal grab ×1 piece

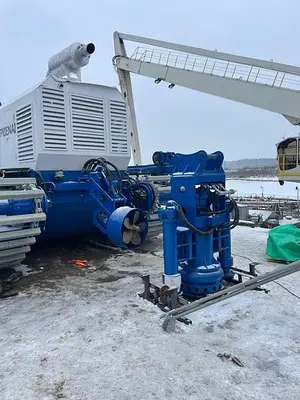

Sand Pump. Pump (water and soil mixture) content (capacity) - 500 m3/h.

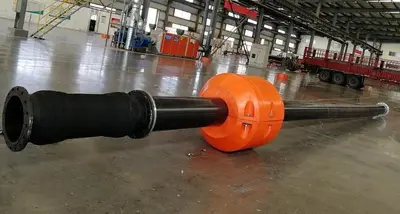

The length of the self-floating hose – 200 meters
