| X Axis | 41.3" | 1,049 mm |
| Y Axis | 22.05" | 560.07 mm |
| Z Axis | 17.72" | 450.09 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 22.05" | 560.07 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Control | CNC (Okuma OSP-U10M Series CNC Control) | CNC (Okuma OSP-U10M Series CNC Control) |
| Dimensions | 90″ x 104″ x 105″ High Approx. | 90″ x 104″ x 105″ High Approx. |
| Weight | 14,500 lbs Approx. | 14,500 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

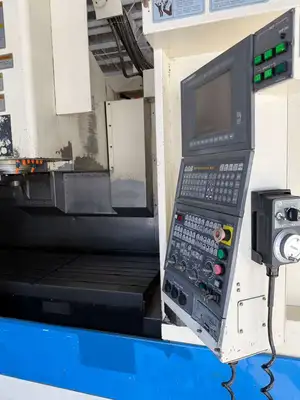

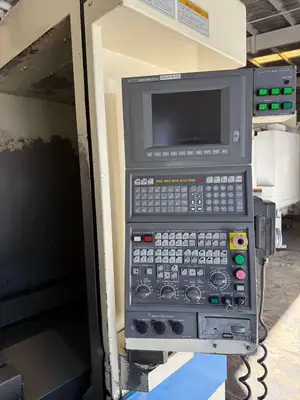

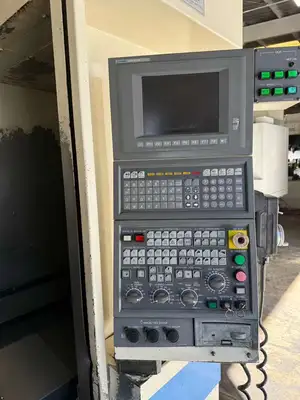

Okuma OSP-U10M Series CNC Control
RS-232 Port
MPG Handwheel Control
Rigid Tapping
Coolant System
Travels:
X-Axis: 41.30″
Y-Axis: 22.05″
Z-Axis: 17.72″
Spindle Nose to Table (Min.- Max.): 7.8″ – 28.6″
Rapid Traverse Rates X, Y Axis: 1181″ Per Minute
Rapid Traverse Rates Z Axis: 945″ Per Minute

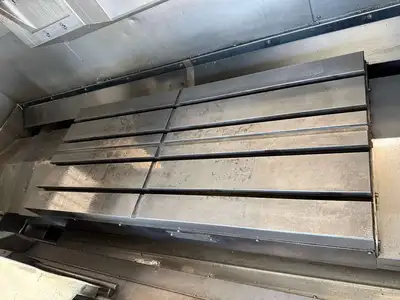

Table:
Length: 51.18″
Width: 22.05″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 6,000 RPM
Spindle Power: 20 HP

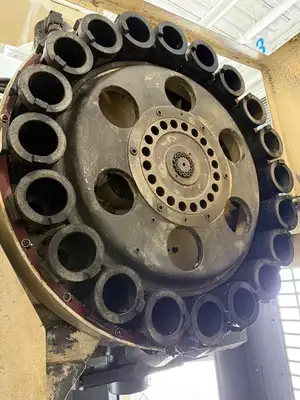

Automatic Tool Changer:
Capacity: 20 Station Side Mounted
Tool Weight: 26 lbs
Tool Change Time: 2 Sec.
Max Tool Length: 11.81″
General:
Air Required: 80 psi, 4 scfm

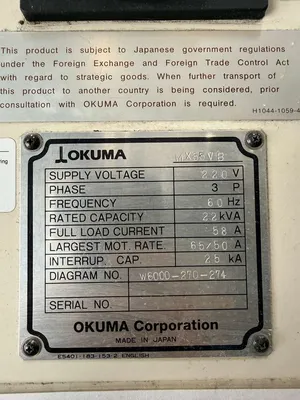

Power: 220v / 3-Phase / 22 kva
Overall Dimensions: 90″ x 104″ x 105″ High Approx.
Weight: 14,500 lbs Approx.
20 Station Automatic tool changer
6,000 RPM, CAT-50 Taper Spindle
Through Spindle Coolant ?

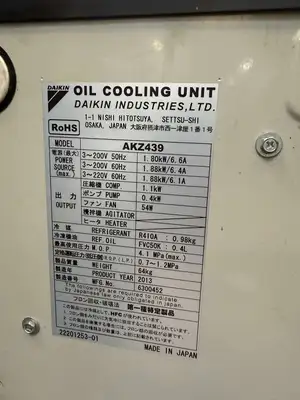

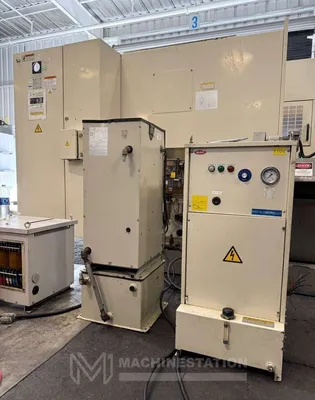

Spindle Chiller Unit

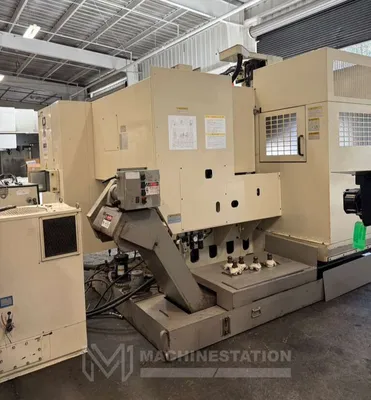

Chip Conveyor
Levelling Pads
Floopy Disc
Manuals
Transformer
