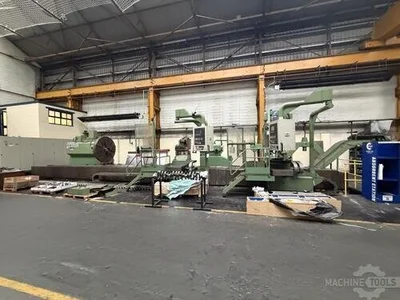

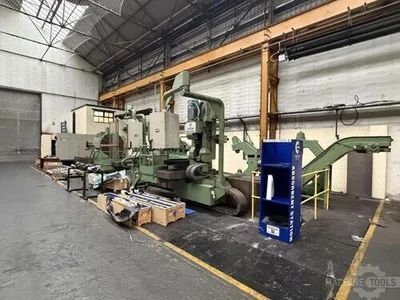

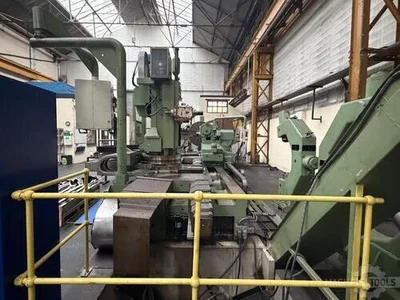

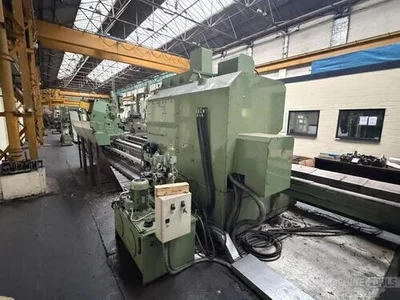

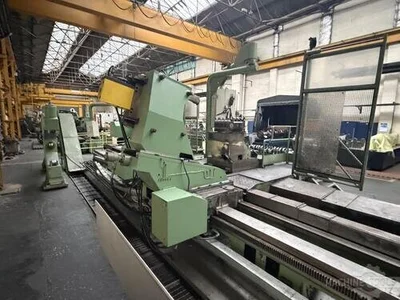

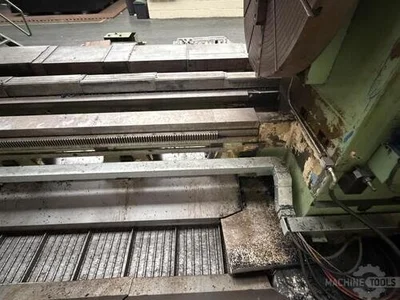

USED 2001 TACCHI HD3/140 L

Swing over bed 2,000 mm
Swing over cross slide 1,550 mm
Between centers turning length 8,000 mm
Workpiece weight between centers up to 25,000 kg
Spindle bore 150 mm for large shafts and pipe work

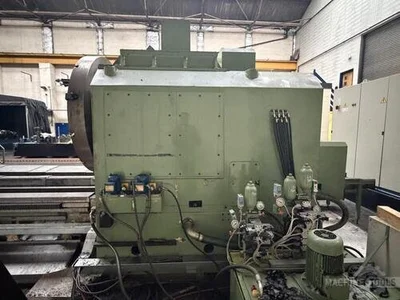

Main spindle power 95 kW with torque up to 45,000 Nm
Spindle speed up to 360 rpm for heavy duty cutting

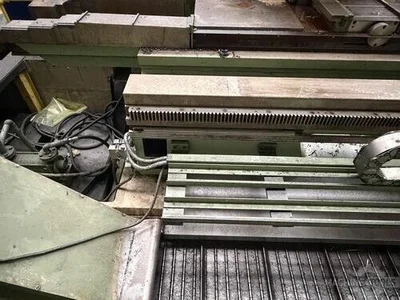

3 bed way construction and 1,400 mm bed width for high rigidity

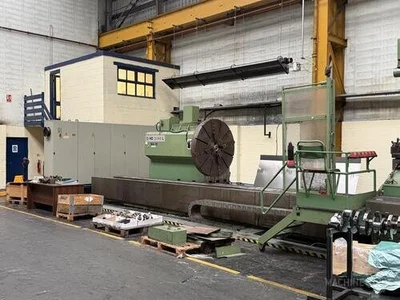

4 jaw chuck Ø 1,500 mm

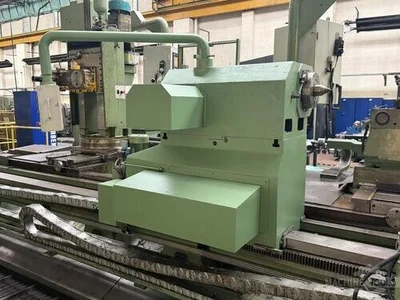

Tailstock quill diameter 260 mm, stroke 200 mm, taper Metric 80
Feed rate X axis 0 to 6,000 mm per min
Feed rate Z axis 0 to 6,000 mm per min

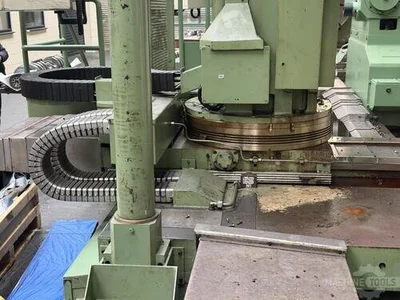

Full C axis with 360,000 positions for positioning and milling

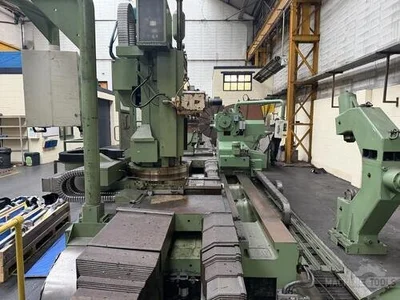

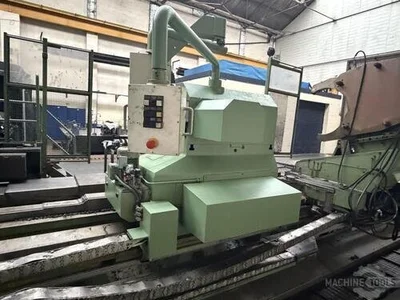

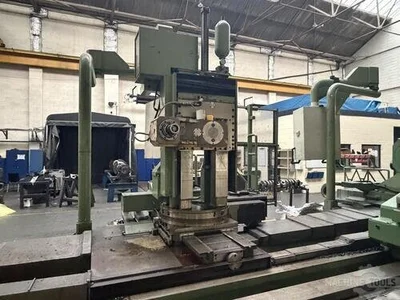

Milling tower 22 kW at 1,800 rpm, torque 2,800 Nm
X and Y travel 900 mm and 500 mm, rapid traverse 6,000 mm per min
Steady rests for large diameters

C type hydraulic 500 to 900 mm, 8 ton
Fixed closed 800 to 1,200 mm, 10 ton
Fixed closed 500 to 900 mm, 5 ton
C type hydraulic 500 to 900 mm, 8 ton
Fixed closed 800 to 1,200 mm, 10 ton
Fixed closed 500 to 900 mm, 5 ton
Machine dimensions approximately 3,800 mm high, 5,000 mm wide, 16,000 mm long
Year of manufacture 2001

Swing over bed Ø: 2000 mm
Swing over cross slide Ø: 1550 mm
DBC Turning Length: 8000 mm
Spindle bore: 150 mm
Spindle power: 95 kW
Bed width: 1400 mm
Tailstock spindle Ø: 260 Ø
Stroke pinole: 200 mm
Spindle taper: Metric 80 Mk
Workpiece weight: 25000
Power: 95 A
Speeds / ranges: 360 Rpm
Feed rate X-Axis: 0 - 6000 mm/min.
Feed rate Z-Axis: 0 - 6000 mm/min.
Length: 16000 mm
Width: 5000 mm
Height: 3800 mm
Weight: 80000 kg
