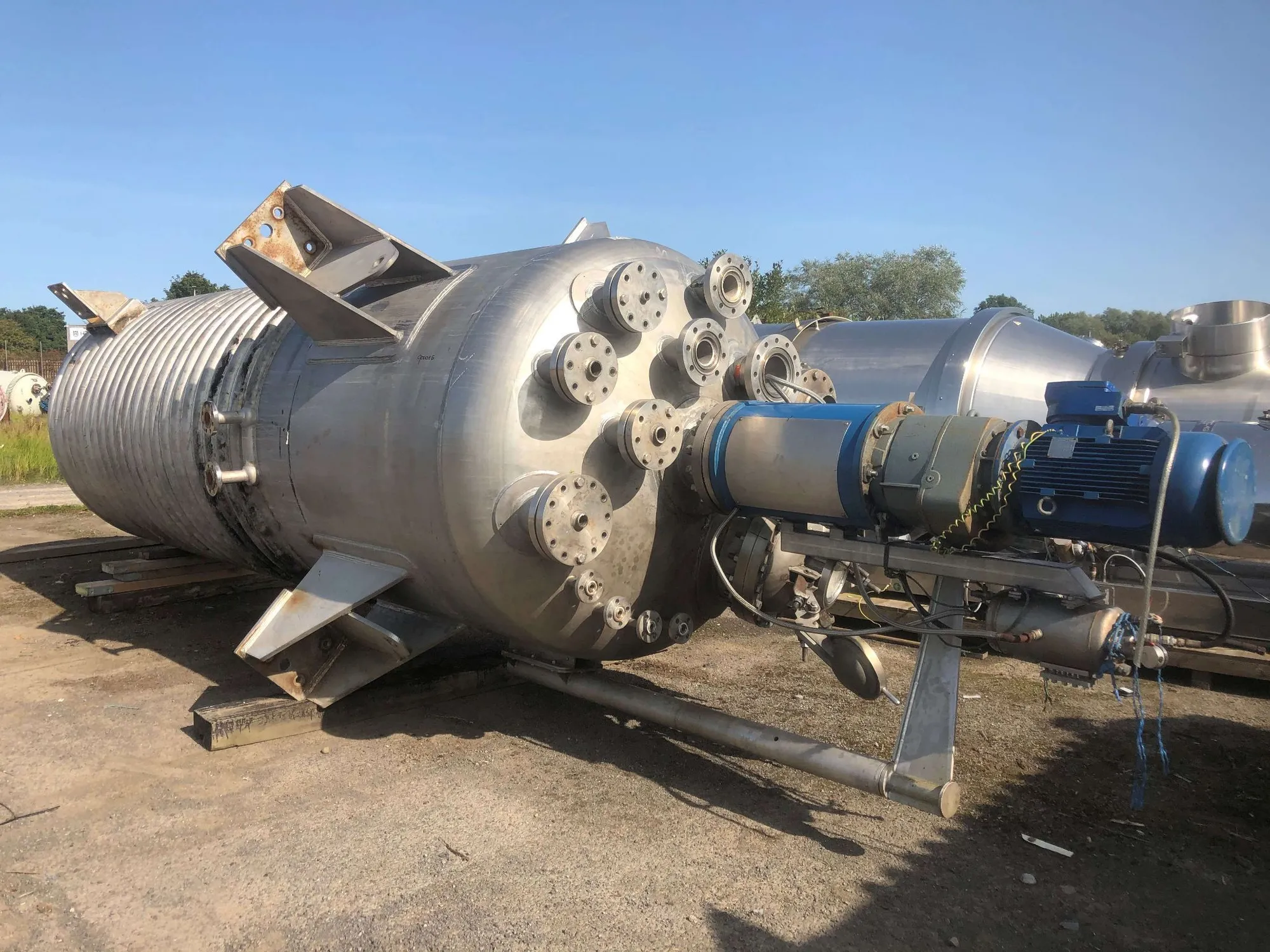

Used Vale Engineering Services approximately 12,000 litre working capacity (13,110 litre total capacity) 316L stainless steel vertical reactor / hydrogenation vessel. Unit measures approximately 1,750mm diameter x 5,000mm straight side (tan to tan). Unit has welded dished top and bottom heads. Internal rated 18 bar / full vacuum design pressure at -10 to 180 deg.c. External 304L stainless steel coil jacket rated 11 bar design pressure at -10 to 180 deg.c. Unit has top entry 316L stainless steel 4-tier, 6-blade agitator driven by 15kW, 1465rpm, 50hz electric motor with mechanical seal and reduction gearbox. Unit is mounted on (4) side support lugs.
| Capacity | 12,000 L | 3,170.1 gal |
| Type of stainless | 316L Contact Parts | 316L Contact Parts |
| Internal Pressure | 18 bar | 261.1 PSI |
| Internal Temperature | -10,180°C | -18,292°F |
| Jacket Pressure | 11 bar | 159.5 PSI |
| Diameter | 1,750 mm | 68.898" |
| Straight Side | 5,000 mm | 196.85" |
| Type Of Heads | Dished | Dished |
| Legs/Lugs | 4 Lugs | 4 Lugs |
