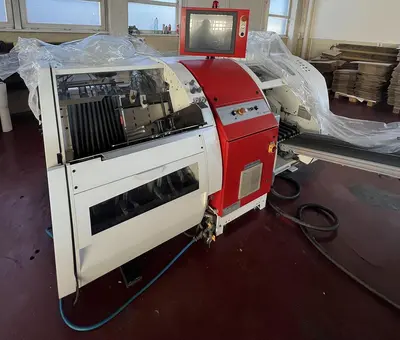

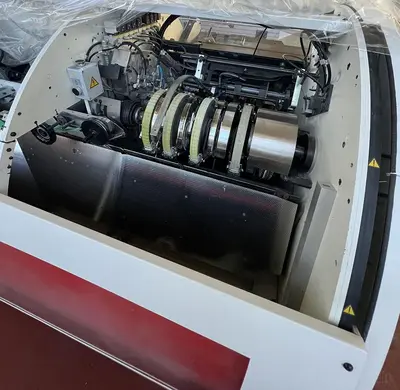

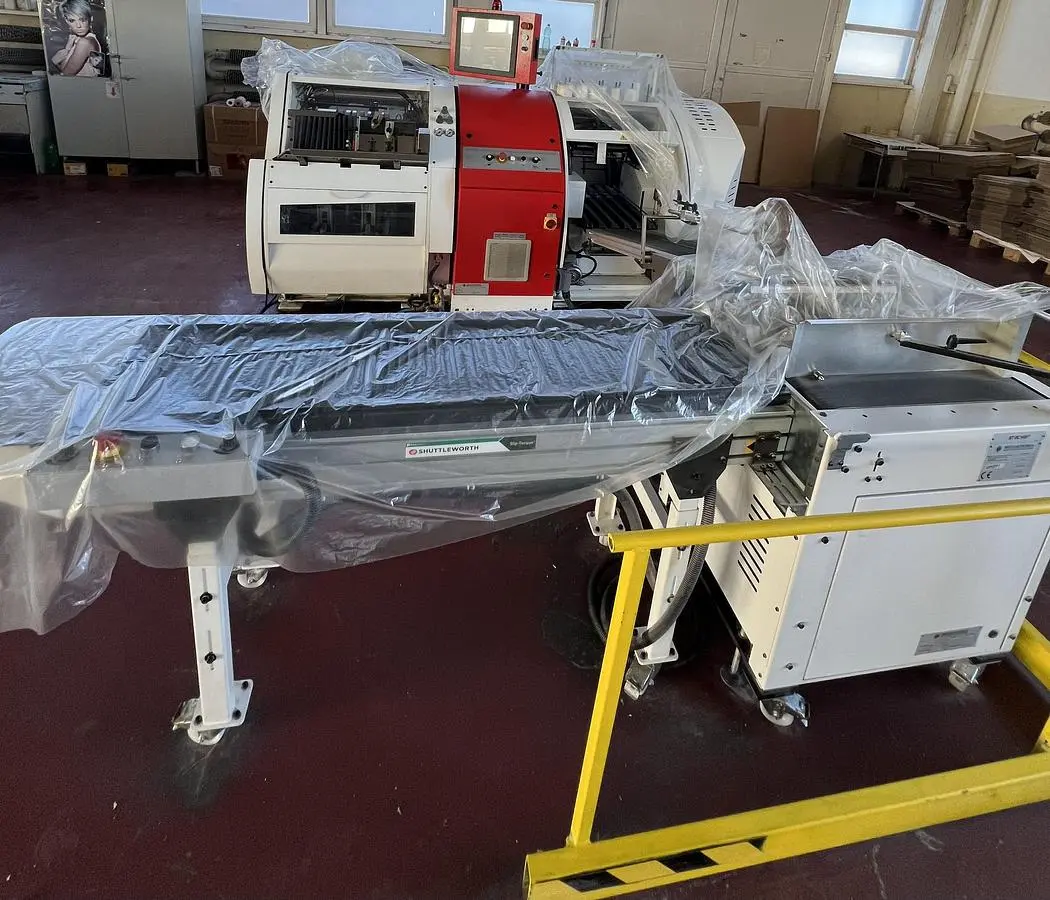

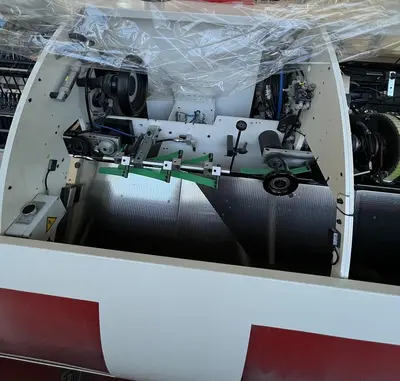

USED 2021 MECCANOTECNICA ASTER PRO
Overview
Description
Book finishing machine
Type: aster PRO
Manufacturer: Meccanotecnica
Year: 2021
Max. mechanical speed
Depends on the type of paper and the size of the sections
Min. section size: 75 × 120 mm
Max. section size: 320 × 440 mm
Speed: 200 cycles/min
Number of stitch positions: 10
Stitch length: 19 mm
Number of openings: 2 upper, 2 lower, Lap
Electrical power requirement: 6.35 kW
Standard voltage: 400 V, 50 Hz, 3 phases
Compressed air (external supply): max. 500 l/min at 7 bar
Machine weight: 3580 kg
Floor space required: 2830 × 1680 mm
Standard configuration
The Aster PRO includes the following standard features:
Exclusive drive system running in a single closed oil bath. This ensures high mechanical speed, smooth operation, and long service life of the cam mechanisms without the need for maintenance.
Siemens Windows PC system
17” color touch-screen monitor with icon-based programming
Automatic setup
Gigalynx Dual digital camera control system, ensuring feed accuracy by reading barcodes or scanning parts of each section
Accelerator button
Double feeding gripper
Active thread cutting system
Patented automatic block separation device
Conventional stitch
Thread cutting device reducing thread ends to a maximum of 10 mm
Extractor for thin books
Vacuum pump
Central automatic lubrication
Machine has camera

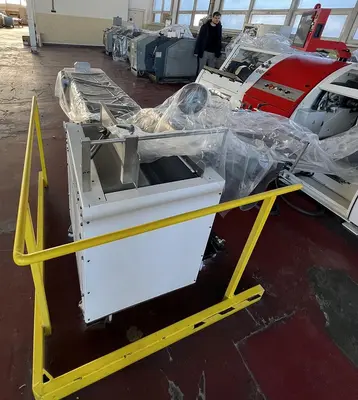

Book Stacker, year 2021
Options:
S A – Super automatic size change
Rotating lap opener
Automatic staggered stitch
Book block separator and motorized delivery unit
Stacker 350 × 1500 mm with motorized roller conveyor
4+4+LAP opening head
In very good condition, fully functional
