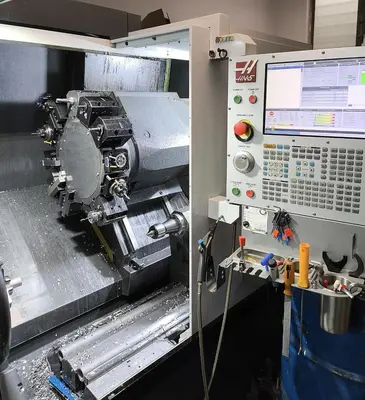

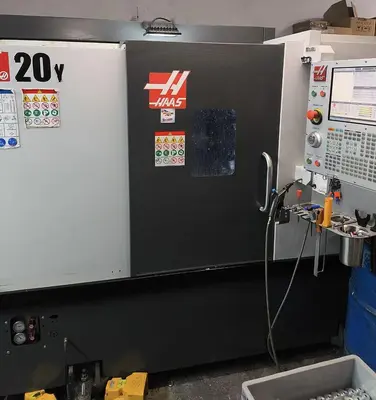

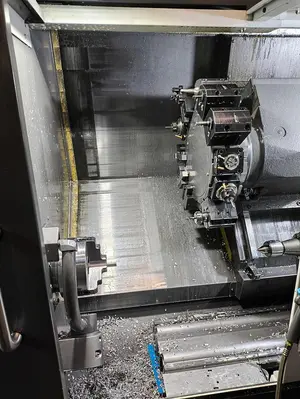

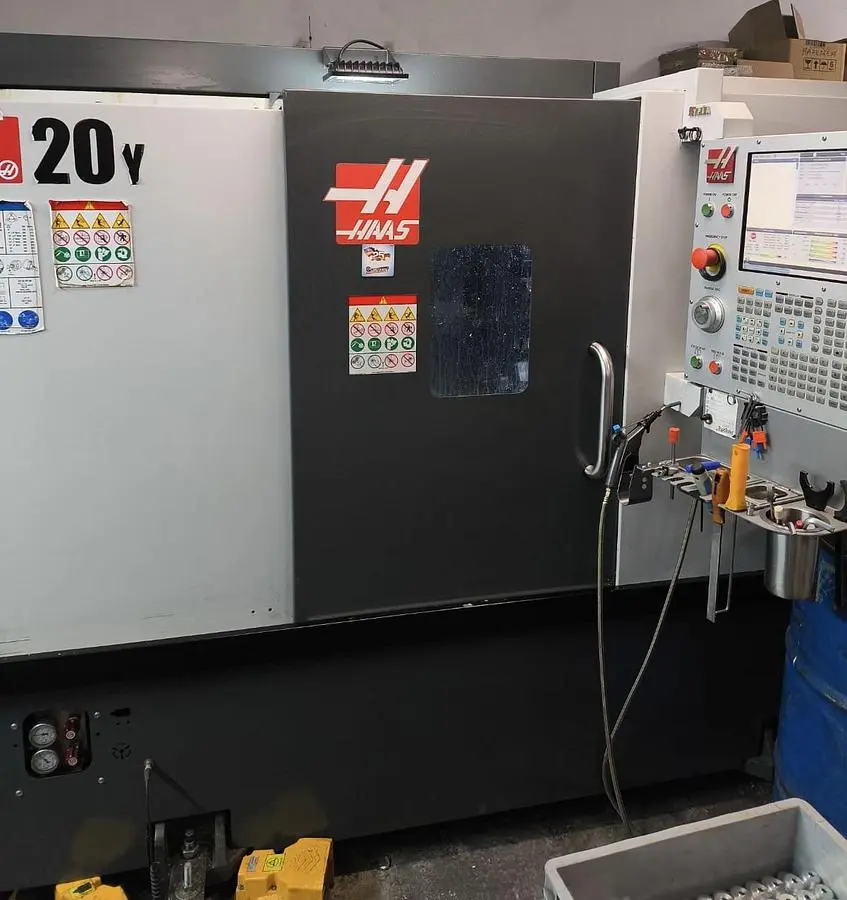

USED 2023 HAAS ST-20 Y

CNC lathe
Type: ST-20 Y
Manufacturer: Haas
Year: 2023

Control: Haas
Max.turning diameter: 298 mm
Max.turning length: 572 mm
Swing over support: 533 mm
X: 213 mm
Z: 572 mm
C-axis
Y-axis: +/- 50.8 mm
Driven tools
Tailstock
Tool probe
X/Y/Z axis rapid traverse - 24.0/12.7/24.0 m/min
Spindle cone: A2-6
Max. power: 14.9 kW, spindle drive Vector Drive
Max. torque: 203 Nm
Max. spindle speed: 4000 rpm
Spindle bore: 63.5 mm
Automatic hydraulic chuck: 210 mm
Turret MBT65 : 12 position
Max. speed of driven tools: 4000 rpm
Drive of all positions of the BMT65 turret
Coolant tank: 208 l with pump
El. connection 3x400V/50HZ, 14kVA
Machine weight: 5300 kg
Linear rollers pre-tensioned axis guide
Central automatic lubrication - axes with grease / spindle with oil
Lighting of the working space
Automatic hydraulic 3-jaw chuck
A set of tool holders (only for BOT or HYBRID revolvers)
Direct threading
15" color LCD monitor
Electronic wheel on the control panel
Operating memory 1 GB
USB and ETHERNET communication interface
Hand gun for air cleaning
A set of setting feet
Machine in very good condition, under power
