USED 2006 MAKA PA 37

MAKA Systems GmbH
Type: PA 37
Year of construction: 2006
Machining length: 11 m
Operating hours: 23.792
Spindle exchange: 08/2018

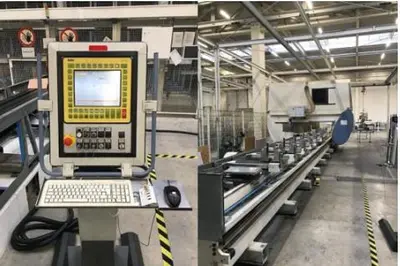

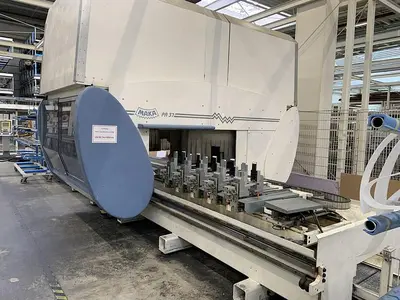

MAKA CNC 5-axis machining center PA 37
for machining of aluminum profiles
and (with clamping surface to be realized clamping surface) for aluminum sheets / plates.
machining.

Version
with NC support crosshead positioning

and with widened machine
base frame to accommodate the required
required drag chains,

and with hydraulic workpiece clamping.

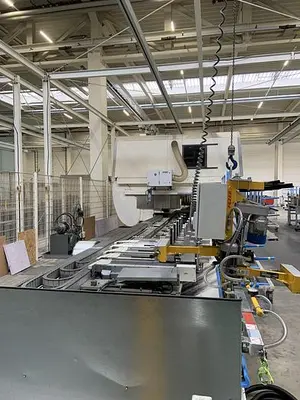

Machine in travelling gantry design with
drive on both sides (gantry drive).

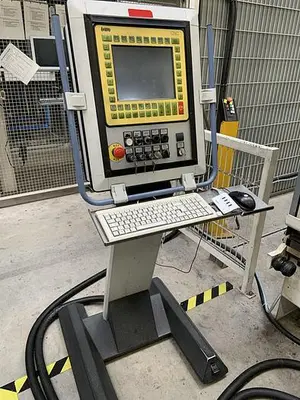

CNC-control BWO 930 in mobile operating-
for 5-axis milling with RTCP function,

memory 1 mB,
with integrated PC with low power processor
1 GHz, hard disk 120 gB, with Windows-XP,

10" touch-screen display with touch-screen
computer keyboard.

Connections:
1 x VCS for screen, 4 x USB, 1 x mouse,
1 x keyboard, 1 x RS 232,
Ethernet 100 mB for connection to the CPU,
network connection: Ethernet 10 mB, TCP/IP,
at the CPU in the control cabinet.

Travel ranges (axis designations X/Y exchanged for-
exchanged over standard) =

X-axis approx. 12.100 mm
Y-axis approx. 2.350 mm
Z-axis approx. 800 mm

A-axis 196 ° (swivel axis +/- 98°)
B-axis 540 ' (rotary axis)

Rapid traverse speed Y-/X-axis 45 m/min.
Z-axis 24 m/min.
A-/C-axis 10,000 °/min.

Machining unit:
1 universal unit for 5-axis milling with
integrated swivel and rotary axis,
Milling spindle water-cooled,
nominal power 20 kW from 12.000 1/min., speed
infinitely variable up to 24.000 1/min. (236411)

with axis control left/right rotation for gear
thread cutting up to M 12.

Room extraction for machining in 5-axis operation.
operation.

Tool interface HSK-F63 for automatic tool change.
tool change.

1 chain tool magazine with 32 places for tools up to

tools up to 90 mm 0 each, or up to max.
max. 160 mm 0 and 160 mm total length from spindle (= with
length from spindle (= with 70 mm basic length for tool
for tool holder + 90 mm projection length).

Special tools up to 280 mm total length can be
be deposited and automatically exchanged.
A saw blade with up to 350 mm 0 can be deposited in the

magazine and changed automatically (occupies
(occupies 5 storage places).

The magazine is arranged in the unit output position.
sition. Partition wall between magazine and working
area for protection of tools against direct

direct flying chips.
Milling spindle and 2 magazine positions set up

for angle/probe heads with torque support.
torque support.
