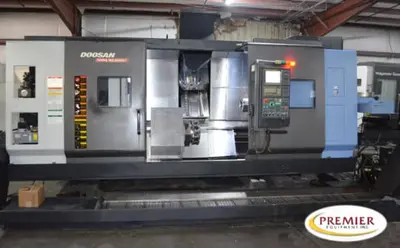

Doosan Puma MX2600ST – 2015

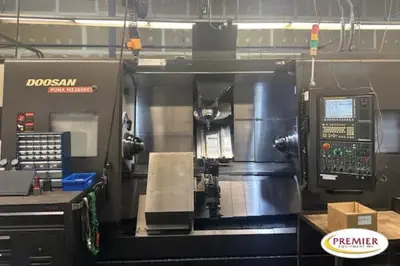

Doosan Puma MX2600ST Multi-Axis CNC Turning/Milling Center

CAPACITY
Swing over bed:  39.4″
Swing over saddle:  27.6″
Recom. Turning diameter:  10.0″
Max. Turning diameter:  29.9″
Max. Turning length:  60.6″
Bar working diameter:  3.0″

TRAVELS
X1-axis Travel Distance:  24.8″
Z1-axis Travel Distance:  62.4″
Y-axis Travel Distance:  9.1  +/- 4.5″
X2-axis Travel Distance:  8.7″
Z2-axis Travel Distance:  59.6″
A-axis Travel Distance:  61.0″

LEFT SPINDLE
Max. Spindle speed:   4000 RPM
Spindle nose:   ASA A2-8
Spindle through hole:   3.4″
Min. spindle Indexing angle(C-axis):   0.001 deg

MILLING SPINDLE
Max. spindle speed:  12,000 RPM
Min. spindle Indexing angle(B-axis):  0.001 Deg

AUTO TOOL CHANGER
Tool storage capa.:  40

Fanuc Series 31i-Model B5 CNC Control
Air blast
Coolant chiller
Spindle head cooling system
Through spindle coolant for milling spindle
Tool Presetter
Sub Turret with Milling
Sub Spindle
10” Main Spindle Chuck
