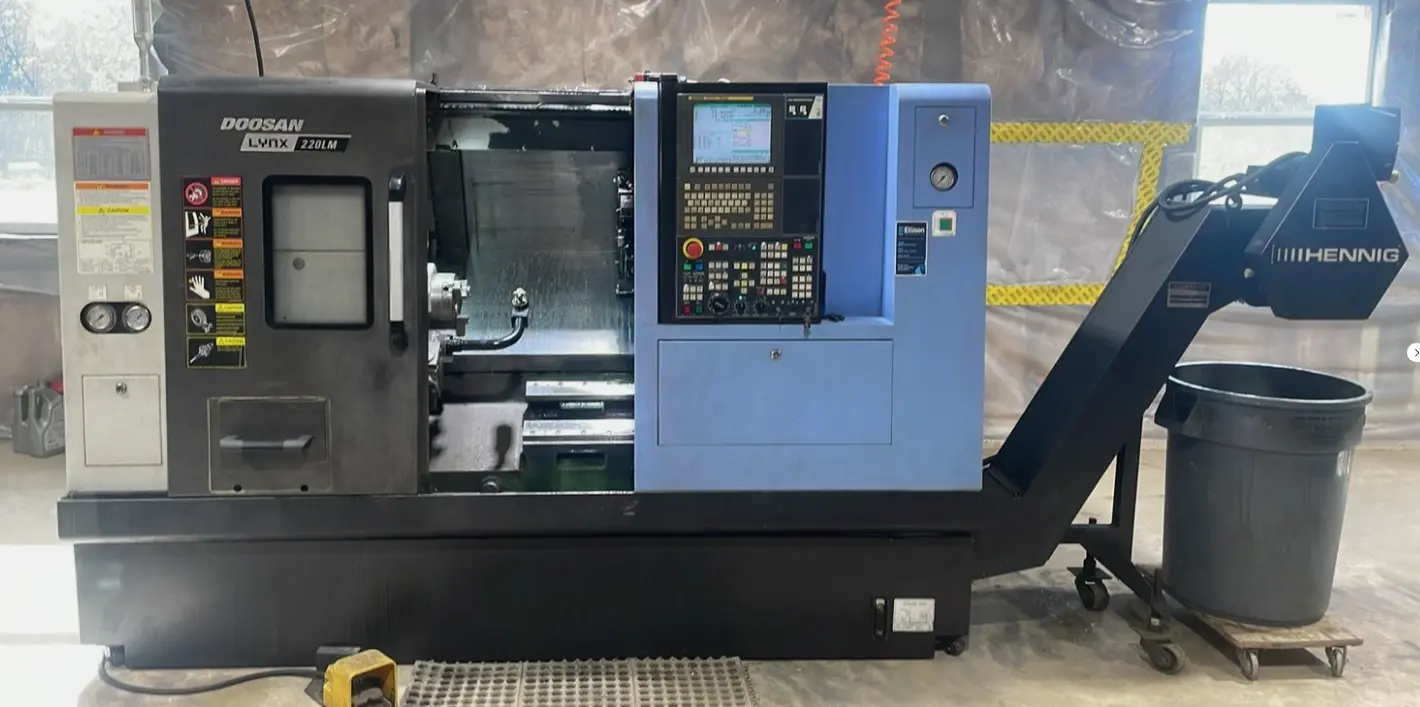

USED 2015 DOOSAN LYNX 220LMA
Overview
Specifications
| Swing | 23.2" | 589.28 mm |
|---|---|---|
| Machining Length | 20.1" | 510.54 mm |
| Max. Turning Diameter | 9.84" | 249.94 mm |
| Distance Between Centers | 24" | 609.6 mm |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turret Stations | 24 | 24 |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Dimensions | 101” x 64” x 67” | 101” x 64” x 67” |
Equipped With
4,458 Cutting Hours
C-Axis
Tool Presetter
MT 4 Tailstock
Fanuc i Series Control
USB Port
Hennig Chip Conveyor
High Pressure Coolant Pump w/ Tank
KEM Oil Skimmer
Auto Lube
Power: 220v, 15 HP, 3 Phase
Weight: 7,275 lbs
Live Tooling: 3 Radial, 1 Axial
6.5” Samchully Hydraulic Chuck
Tooling included at asking price ONLY
