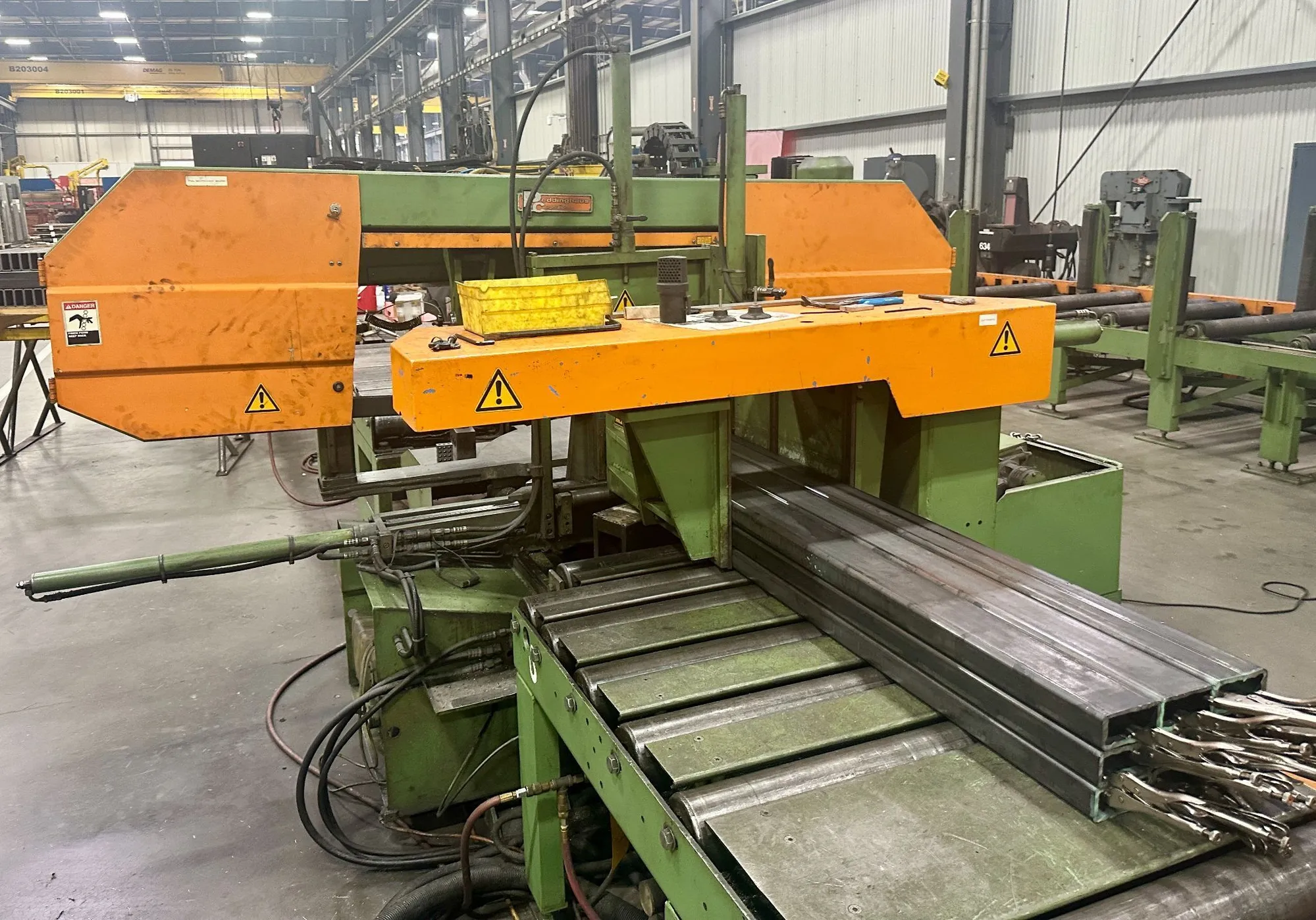

PEDDINGHAUS CNC AUTOMATIC DOUBLE MITER HORIZONTAL BAND SAW, Model 410-DGA2300, Meba Programmable Control, 24" x 16" Rectangular Capacity, 16" Round Capacity, 45°/60° Mitering Degrees, Hydraulic & Vertical Powered Vise, 7.5 HP, 495 FPM, Coolant Pump, Chip Conveyor, New 2008.
| CNC Control | Meba Programmable Control | Meba Programmable Control |
| Nominal Capacity (W) | 27.55" | 699.77 mm |
| Nominal Capacity (H) | 16" | 406.4 mm |
| Round Capacity | 16" | 406.4 mm |
| Nominal Capacity (W) 45° | 16.5" | 419.1 mm |
| Nominal Capacity (H) 45° | 16.1" | 408.94 mm |
| Round Capacity 45° | 16.1" | 408.94 mm |
| Nominal Capacity (W) 30° | 13" | 330.2 mm |
| Nominal Capacity (H) 30° | 16.1" | 408.94 mm |
| Round Capacity 30° | 13" | 330.2 mm |
| Nominal Capacity (W) 45° Left | 16.9" | 429.26 mm |
| Nominal Capacity (H) 45° Left | 16.1" | 408.94 mm |
| Round Capacity 45° Left | 16.1" | 408.94 mm |
| Square Capacity | 27.55" x 16.1" | 699.77 mm |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Cutting Speeds Range | 0-492 ft/min. | 150.9 m/min. |
| Blade Length | 228.35" | 5,800.1 mm |
| Max Blade Width | 1.61" | 40.894 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Material Feed Length | 0"-90.55" / 0"-393.66" | 9,999 mm |
| Length of Remaining Piece | 2.75" - 11.81" | 299.97 mm |
| Blade Tension | Hydraulically | Hydraulically |
| Blade Drive Power | 7.5 hp | 5.6 kW |
| Hydraulic Pump | 1.5 HP | 5.7 L/min. |
| Electrics | 460/60/3 | 460/60/3 |
| Working Height | 29.53" | 750.06 mm |
| Dimensions | 138" x 110" x 78" | 138" x 110" x 78" |
| Weight | 7,958 LBS | 7,958 LBS |
Meba Programmable Control, 45°/60° Mitering Degrees, Powered Infeed Vise, Hydraulic Vertical Vise for Bundle Cutting, Infeed & Outfeed Conveyors, Chip Conveyor.
