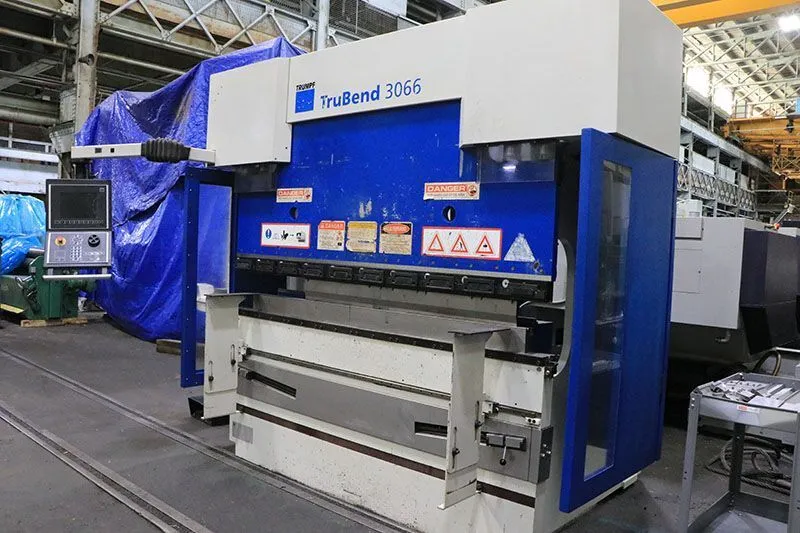

USED 2006 TRUMPF TRUBEND 3066
Overview
Specifications
| Tonnage | 73 T | 66.225 t |
|---|---|---|
| Type | HYD | HYD |
| OA Length | 82" | 2.1 m |
| OA (Overall) Length | 80" | 2,032 mm |
| Between Housings | 69" | 1.8 m |
| Between Housings | 93" | 2,362.2 mm |
| Stroke | 7.87" | 199.9 mm |
| Dimensions | 102" L x 69" W x 92" H | 102" L x 69" W x 92" H |
| Weight | 12,500 LBS | 12,500 LBS |
TONNAGE ......................... 73
BED LENGTH .. ................... 80"
DISTANCE BETWEEN HOUSINGS ....... 69"
LENGTH BETWEEN THE HOUSINGS ..... 93"
STROKE .......................... 7.87"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 5.9"
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM
BENDING ........... 35 IPM
RETURN ............ 472 IPM
MAIN MOTOR HP ................... 10
MAX OPERATING PRESSURE ......... 4,466 PSI
MOTOR SPECS ..................... 3 PH / 460 V
APPROX. WEIGHT: 12,500 LBS.
APRROX DIMENSIONS: 102" X 69" X 92" H
Equipped With
PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL
DELEM DA-65TW GRAPHIC CONTROL
TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2)
MISC. TOOLING
