| Table-W | 60" | 1,524 mm |
| Table-L | 120" | 3,048 mm |
| X | 120" | 3,048 mm |
| Y | 60" | 1,524 mm |
| Z | 7.5" | 190.5 mm |

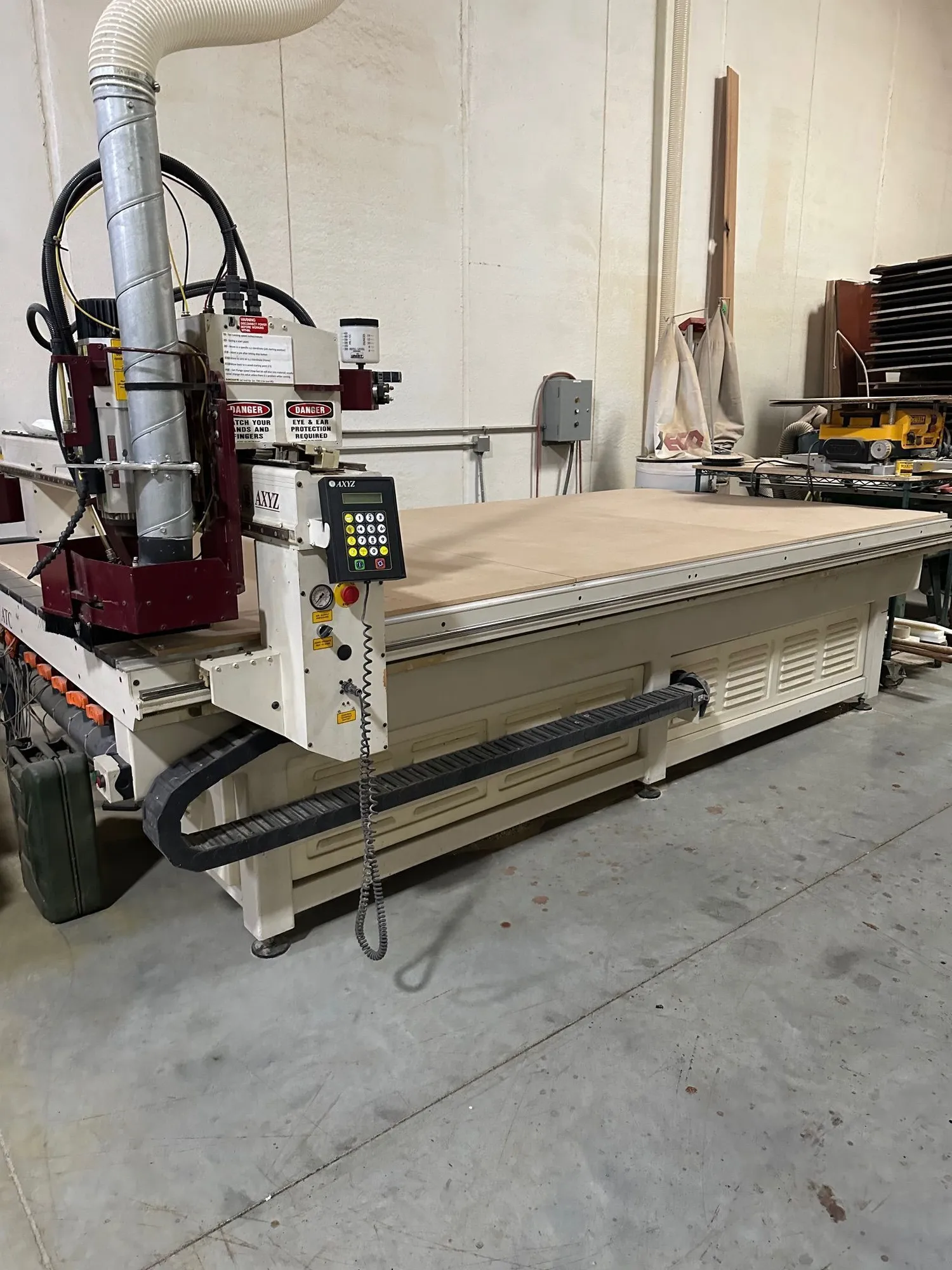

AXYZ 5010 CNC Router (2015)
Table Size: 5′ x 10′
Vacuum Table: (5) Zones
Vacuum Pump: (10) Horsepower – Included
Table Height: 32″
Gantry Clearance 6.0″
Z Axis Stroke: 7.5 inches
10 Hp Spindle: 6,000 to 24,000 RPM with
“quick release spindle”
Digital A/C inverter for spindle RPM control
S-Mouse Rapid Tool Tip Sensor for surface
and tool height control
Automatic Misting System for non ferrous
metal-working
Adjustable Pressure Foot for chip
containment & extract.
High-Torque Microstepper Drives & Motors
in all 3 axes
