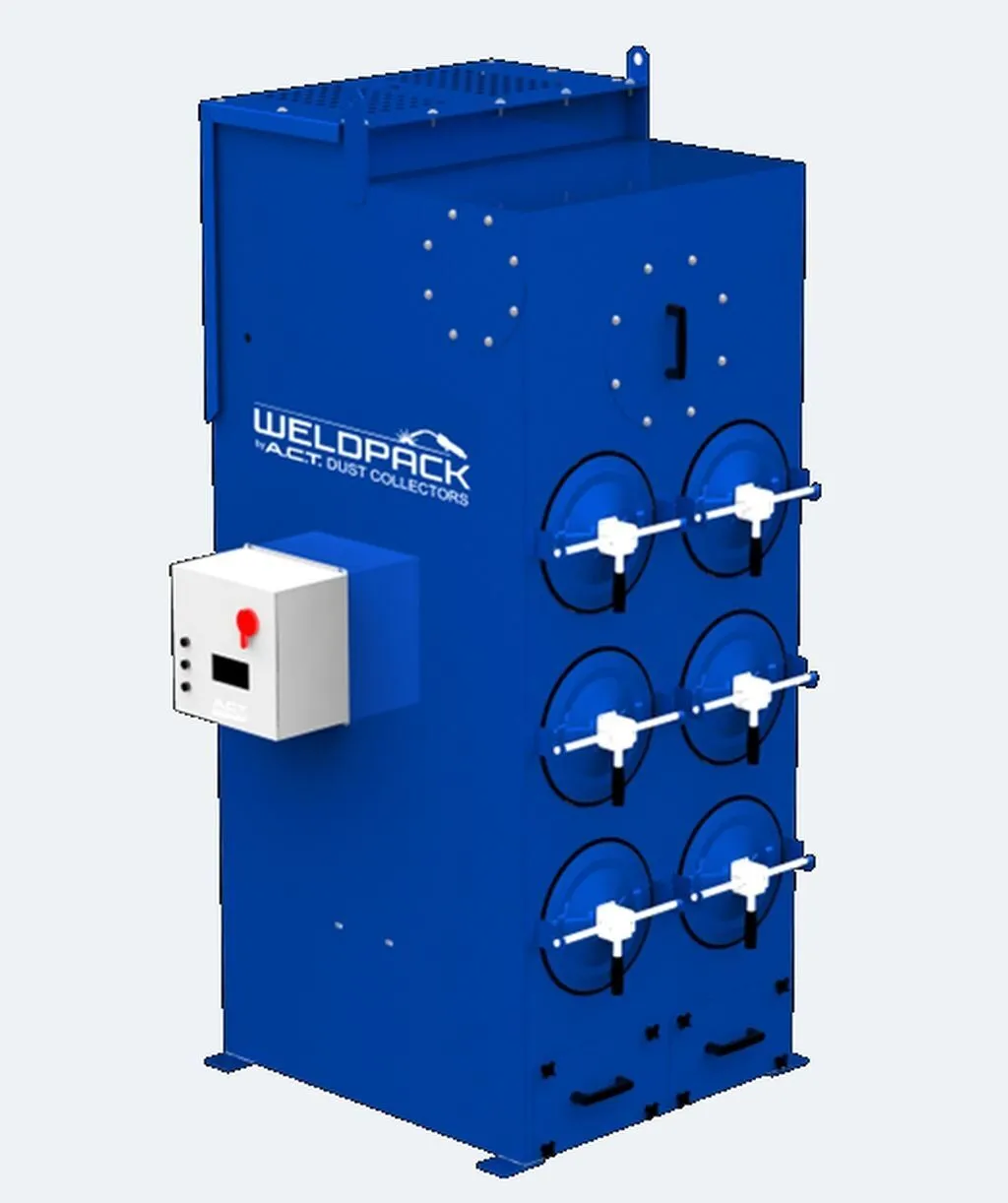

NEW A.C.T. WELDPACK 6

The ACT WeldPack 6 is a compact dust collector with a small footprint for applications including robotic welding, source capture welding and metalworking. The ACT WeldPack 6 includes an integrated spark trap, enclosed fan, prewired controls and remote start feature.

The particles generated during the robotic welding process form a fume cloud comprised of very fine dust particles that can harm workers and the equipment. All of our WeldPack dust collectors provide a unique, heavy-duty and effective solution for removing fumes and smoke, as well as filtering dust and other particles from your facility.

Specifications:
• Height..........113"
• Width..........42"
• Depth..........58"
• # of Filters..........6
• Filter Area..........1,524
• 3,000CFM
• 10HP

Standard Features:
• Six A.C.T. Nano-Elite Nanofiber Cartridge
• 1,524 Sq. Ft. Filter Media
• 10HP motor rated for 3,000 CFM
• Venturi-Assisted Pulse Filter Cleaning System
• Control Box w/Digital Timer in NEMA 12
• ACTion-Lock Quick Release Filter Doors
• Stainless Steel Filter Door Components
• Side Inlet into Integrated Spark Trap
• Fully Welded Steel Construction
• Primed Interior
• Multi-Coat Paint Finish
• Dust Drawers
• 10-Year Warranty

Filter Specifications:
DCF22611 NANO-ELITE FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Open
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
• 27 filters per pallet

DCF22711 NANO-ELITE FLAME RETARDANT FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• Flame Retardant Coating
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• Open/Open
• 200°F Temperature Limit
• Gasket Top
• Heavy Gauge Steel Structural Elements
• Made in the USA
• 27 Filters Per Pallet
