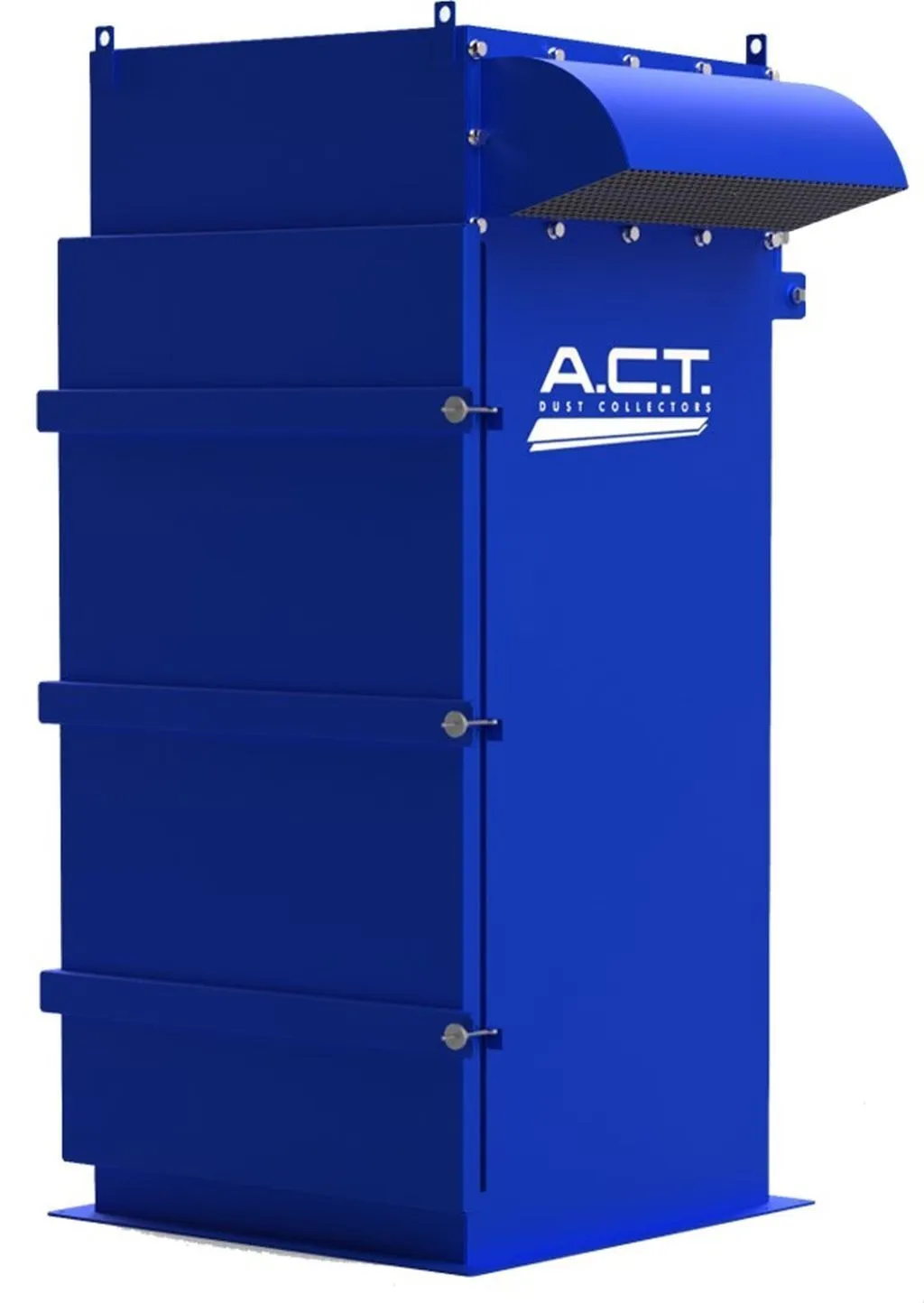

NEW A.C.T. 5x5BV

The ACT 5x5BV is a compact bin vent cartridge dust collector with a small footprint for applications including feed & grain and food processing.

It features a sloped roof, a large front access door and easy-to-change bottom-load filters, eliminating the hassle of ladders for regular maintenance. The 257.5 square feet of media in the ACT 5x5BV will help to ensure the dust collection system is operating at optimum performance.

Specifications:
• Height..........96.25"
• Width..........57"
• Depth..........52"
• # of Filters..........25
• Filter Area..........257.5
• 1,000 CFM

Standard Features:
• Mild Steel Construction
• Venturi-Assisted Pulse Filter Cleaning System
• Large, Front Filter Access Door
• A.C.T. Polyester Bag Filters
• Stainless Steel Construction..........Optional
• High Temperature Construction..........Optional
• Explosion Protected Models..........Optional
• Direct Drive Fans..........Optional
• Chamber and Exhaust Silencers..........Optional
• Sprinkler Coupler..........Optional
• Alternate Filter Media Options..........Optional
• After Filter Housing..........Optional
• HSPA/ASHRAE Filters..........Optional
• Damper Pack..........Optional
• HEPA/ASHRAE Afterfilters..........Optional

Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
• Epoxy Coating..........Optional

Electrical Controls, Gauges & Enclosures:
• Control Panel with Magnetic Starter and Digital Timer Control..........Optional
• Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control..........Optional
• Custom Panels..........Optional
• Solenoid Heater Kit..........Optional

Warranty:
• 10-Year Warranty

Filter Specifications:
DC79252 Baghouse Cage:
• 6 ft long
• Turn Down Flange (U-Channel)
• Top Load with Venturi
• 12 Vertical Wires
• 11 Gage Galvanized
• Cup Bottom
• Shape: Round

DCB1400 OEM Bag Filter:
• Snap Band Top
• 16 oz. Singed Poly Media
• 6" Diameter
• 6 ft long
• Disc Bottom
• 275°F Temperature Limit
• Shape: Round
