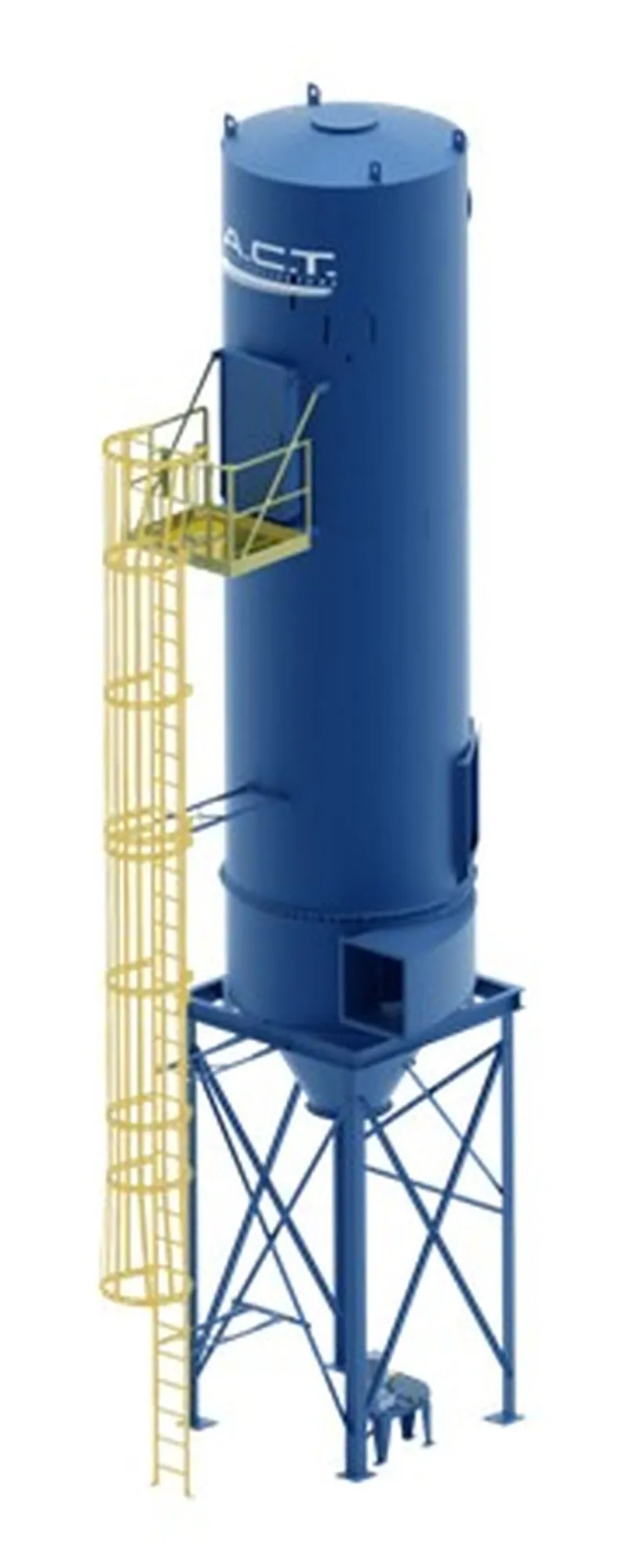

NEW A.C.T. ARB 153-8-12
Overview
The ACT ARB 153-8-12 Round Baghouse is designed to meet the unique requirements of many applications including feed & grain, food processing, woodworking and recycling.
ARB series units do not require compressed air as the ARB comes standard with medium pressure cleaning system. The built-in cyclone promotes material drop out and extends filter life. Overall design is compact to minimize footprint.
The ARB Baghouse utilizes a round cyclonic design that enhances the initial separation of dust particles from the airstream.
Specs
Specifications:
• Nominal Airflow Range (CFM)..........20,000
• Filter Media (ft2)..........2,223
• # of Bags..........153
• Bag Length (ft)..........12'
• Bag Diameter (in)..........5"
• Weight (lbs)..........14,870 lbs
• Height..........35' 4"
• Footprint..........85" x 85"
Filter Specifications:
DCB1301 OEM Bag Filter:
• Snap Band Top
• 16 oz Singed Polyester
• 5" Diameter
• 12 ft long
• Disk Bottom
• 275°F Temperature Limit
• Shape: Round
DC79261 Baghouse Cage:
• 10 ft long
• 10 Vertical Wires
• 11 Gage Galvanized
• Cup Bottom
• Shape: Round
Standard Features:
• ARB SERIES Baghouse
• Medium Pressure Continuous Filter Cleaning
• Tool-Free Bag Replacement
• Clean Side, Top Access Snap Band Filter Bags with Grounding Wires
• Top Load Filter Change Out
• Hinged Filter Access Doors
• Explosion Venting
• OSHA Compliant Service Platform and Cage Access Ladder with Fall Protection System
• Vortex Breakers
• Medium Pressure Blower Package
• Replaceable Bolt-On Involute Inlet
• Premium Prime & Paint Exterior, High Gloss Enamel
• Rotary Airlocks and Transition..........Optional
• Filter Discharge Transition to Rotary Airlock..........Optional
• Screw Conveyors, Drag Conveyors or Pneumatic Conveyors..........Optional
• Extended/Modified Steel Support Structure..........Optional
• Custom Filter Media Options..........Optional
• Motor/Blower for Specific Performance..........Optional
• Exhaust Silencer..........Optional
• Steeper cone options..........Optional
• Ductwork and Inlet/Outlet Manifolds..........Optional
• After filter Plenums for HEPA or ASHRAE..........Optional
• NFPA 69 Compliant Backdraft Dampers / Explosion Isolation Valves..........Optional
• Motor Control Panels (Soft Start, VFD’s, etc.)..........Optional
• Spark Detection System..........Optional
• High Speed Abort Gates..........Optional
• High Temperature Operation Components..........Optional
• Custom Color Exterior, Paint Finishes & Coatings..........Optional
