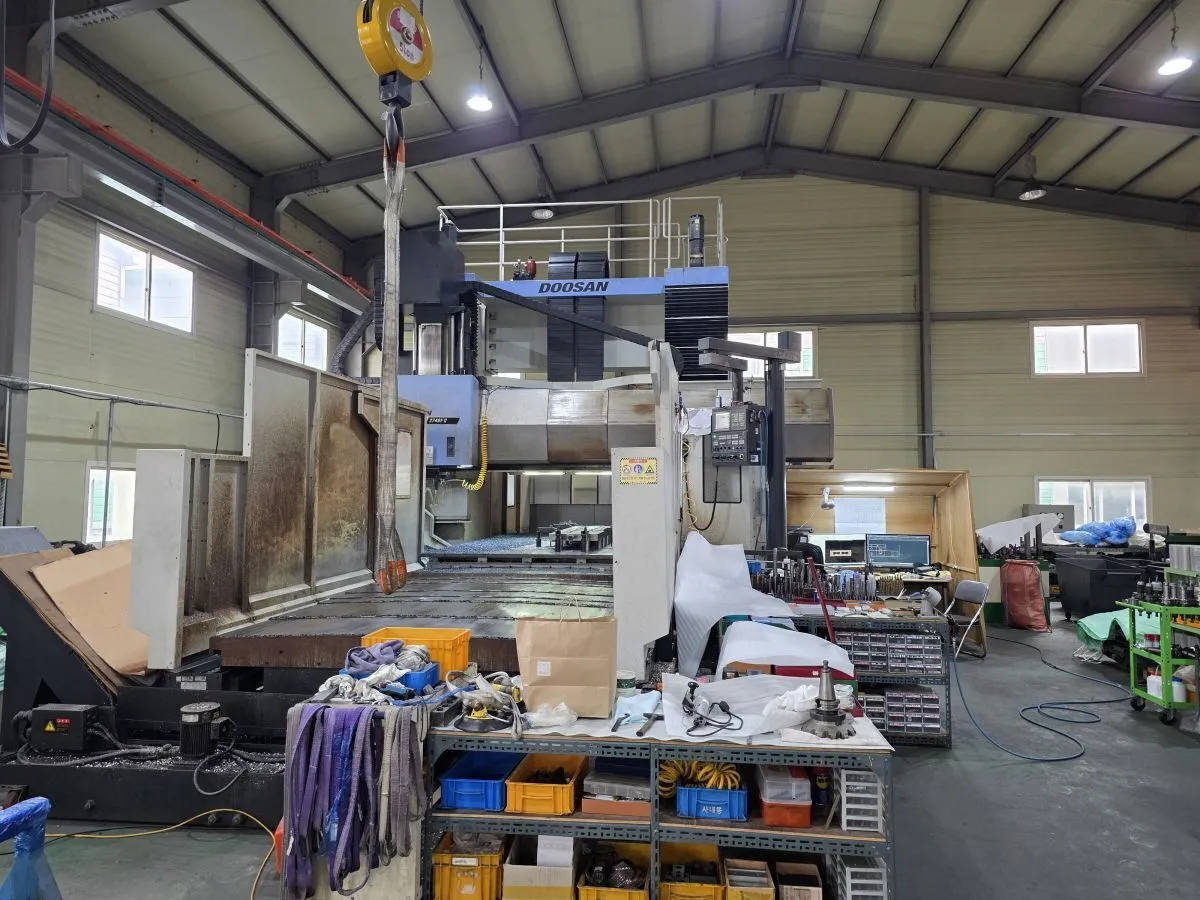

USED 2019 DOOSAN DCM 2740F II
Overview
Doosan DCM 2740F II CNC gantry machining center. Features include a robust table (86.6" x 161.5") supporting up to 44,000 lbs, and Fanuc 31iB control. Comes with a 90-degree angle head, chip conveyor, and 60-tool ATC. 6,000 RPM, 35 HP spindle.
Specs
Doosan
Model : DCM-2750FII Double column machining center
Year : 2019
Table: 86.6" x 161.5"
Table Load 44,000 Lbs
Travels:
X-Axis 167.3"
Y-Axis 126"
Z-Axis 27.6"
W-Axis43.3"
Distance Between columns 106.3"
Table to Spinde Nose 78.8"
Ram size 15" x 15"
Spindle Speed 6,000 RPM
Spindle Motor 35 HP
Equipped With
Fanuc 31iB CNC Control
90 Degree Angle Head (1 Degree Indexing)
4 Station AAC
Chip conveyor
60 Tool ATC
Scales X,Y,Z,W
