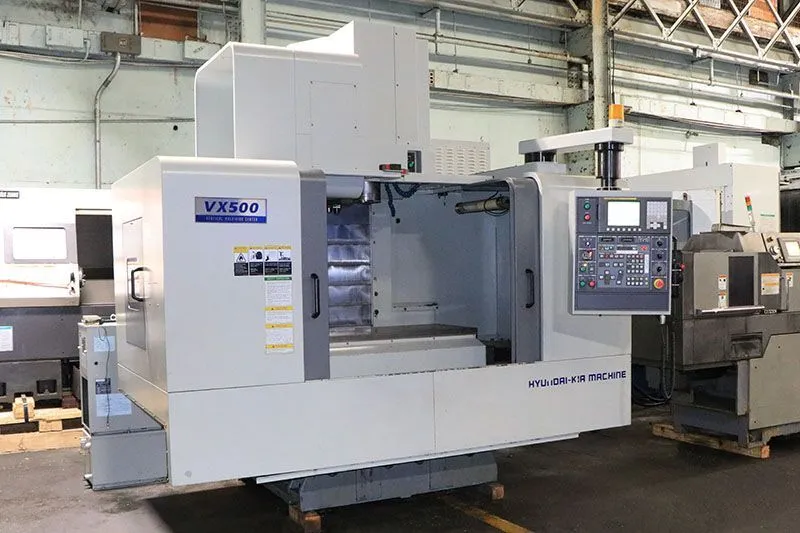

2012 HYUNDAI KIA VX500 Vertical Machining Center with FANUC Oi-MD 4-axis CNC, 20 hp, 10,000 RPM, CAT 40 taper, 24-tool side changer. Features 41.7" x 20" x 24.7" through 3-axis and chip conveyor.
| X | 41.7" | 1,059.2 mm |
| Y | 20" | 508 mm |
| Z | 24.7" | 627.38 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 47.2" | 1,198.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
X-AXIS TRAVEL - 41.7"
Y-AXIS TRAVEL - 20.1"
Z-AXIS TRAVEL - 25"
TABLE SIZE - 47.2" X 19.7"
MAX TABLE CAPACITY - 1,764 LBS
SPINDLE SPEEDS - 10,000 RPM
SPINDLE TAPER - CAT 40
RAPID TRAVERSE RATE (X & Y/Z) - 1,417/1,181 IPM
AUTOMATIC TOOL CHANGER POSITIONS - 24
SPINDLE MOTOR - 20 HP
FANUC Oi-MD 4-AXIS CNC CONTROL
4-AXIS DRIVES & WIRING
SIDE MOUNTED TOOL CHANGER 24 TOOL CAPACITY
OIL CHILLER
CHIP AUGER INTO A CHIP CONVEYOR
20 HORSE POWER SPINDLE MOTOR
